High Capacity Conical Twin Screw Extruder For PVC / WPC Profile Extrusion

1 SET

MOQ

USD EUR

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Automatic Grade: Full Automatic

Plastic Processed: PVC, PE, PP

Model Number: SJSZ

Usage For: PVC Pipes, Profiles, Plates Etc.

Screw Design: Twin Screw

Material: Stainess Steel

Highlight:

double screw extruder machine

plastic extrusion machine

Basic Infomation

Place of Origin: ZHANGJIAGANG

Brand Name: LB

Certification: CE ISO

Model Number: LB

Payment & Shipping Terms

Packaging Details: NORMAL PACKAGE

Delivery Time: 15 SETS PER MONTH

Payment Terms: L/C, T/T

Supply Ability: 15 SETS PER MONTH

Gallery

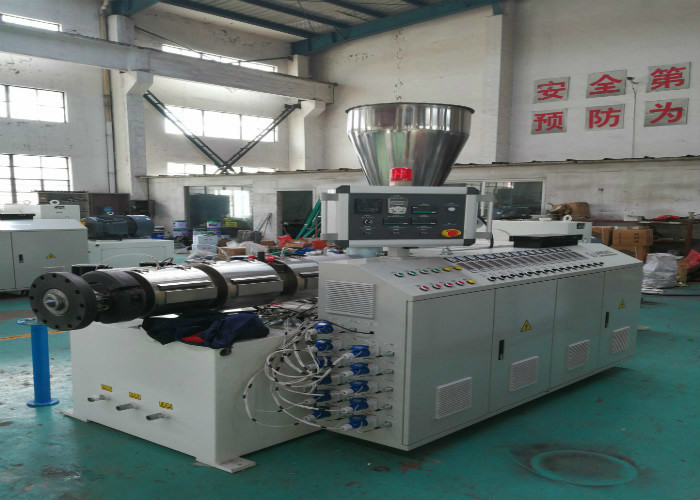

High Capacity Conical Twin Screw Extruder For PVC / WPC Profile Extrusion

Product Description

High capacity conical twin screw extruder for PVC / WPC profile extrusion

Feature:

SJSZ conical twin screw plastics series extruders have advantages,such as forced extruding,high quality,wide suitable range,long working life ,small cutting rate speed,not-easy decomposition of material,good plasticized characteristics of calendaring,straight shaping of powder material and others.It is equipped with AC governor,auto-control temperature,vacuum exhhaust and other devices.The line is suitable for production of pipe ,plate and special-shaped materials.

Main Technical Standards:

Items	SJSZ51	SJSZ55	SJSZ65	SJSZ80	SJSZ92
Diameter(mm)	51/105	55/110	65/132	80/156	92/188
Number of screw	2	2	2	2	2
Screw direction	Different to the outside
Screw Speed(r/min)	1-32	1-40	1-34.7	1-36.9	1-32.9
Length(mm)	1070	1200	1440	1800	2500
Struction	Cone-shaped mesh
Main motor power(kw)	18.5	27	37	55	90
Total power(kw)	40	18	67	90	120
Output(max)kg/h	120	150	250	360	800
Number of barrel heating	4	4	4	4	4
Centre	Screw quantitative
Centre Height of marrel	1000	1000	1000	1000	1000

SJSZ series conical twin screw extruder is special equipment for all kinds of PVC powder extrusion. Equipped with different screw, moulds and auxiliary machine, it can produce PVC plastic pipes, profiles, sheets, boards and granulation.

Technical parameter

Model	SJSZ-51	SJSZ-55	SJSZ-65	SJSZ-80	SJSZ-92
Screw dia.(mm)	51/105	55/110	65/132	80/156	92/188
Max speed(rpm)	40	38	38	37	36
Main motor(KW)	18.5	22	37	55	90
Output(KG/H)	80-100	100-150	150-250	250-380	380-700
Centre height(mm)	1050	1050	1050	1050	1100
Net weight(KG)	3000	3500	4000	5500	8000
*LWH(m)*	*3.61.12.1*	*3.61.12.1*	*4.21.52.4*	*4.71.52.4*	*61.62.5*
