Product Details:
|
| Model Number: | LB-75/150 | Processing Type: | Extruding/Extruded Machine |
|---|---|---|---|
| Model: | SFBZ-75/150 | Condition: | New |
| Screw Design: | Single | Automatic Grade: | Automatic |
| High Light: | extruder plastic machine,plastic recycling extruder machine |
||

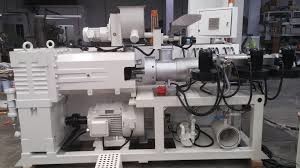

Single Screw Extruder SFBZ - 75 / 150 XPS Foam Board Machine
XPS foam plate production line is one of our new hi-tech products. XPS foamed board is one kind of good insulating materials with continuous even surface and beehive structure. It has superior advantages of good heat preservation, heat insulation, water-proof and high compression resistance. XPS board has been widely used in the fields of heating-preservation and insulation for roof and out-wall, low temperature storage facilities, surface and undersurface of roads. As an ideal insulating and damp-proof material, it has wide market prospect.
Main technical parameter: DEYILI Extruder: XPS Foam Board Machine
1) Used PS material to extrude the foamed board for insulation construction field,
2) Outlook complete and unify, SIEMENS PLC digital control,
3) The die mould accuracy, the runner more reasonable,
4) The recirculating water tank of cast aluminum cooling system,
5) Large output with stable working performance,
6) The self-contained auxiliary machines for your different production plan.
7) DEYILI standard color and special design with machine structure and electrical lines displacement, etc.
| Model |
Screw diameter and L/D ratio |
Board | Capacity | Power | ||
| Width/mm | Thickness/mm | Density | ||||
| SFBZ-100/120 |
Single screw 100-32D Single screw 120-42D |
600 | 20-70 | 32kg/m3 | 180m3/d | 180kw |
| SFBZ-135/150 |
Single screw 135-32D Single screw 150-42D |
600/900/1200 | 20-120/80/60 | 30kg/m3 | 350m3/d | 260kw |
| SFBZ-75/150 |
Twin screw 75-40D Single screw 150-42D |
600/900/1200 | 20-120/80/60 | 30kg/m3 | 360m3/d | 280kw |
| SFBZ-165/200 |
Single screw 165-28D Single screw 200-30D |
600/900/1200 | 20-150/90/80 | 28kg/m3 | 390m3/d | 490kw |
| SFBZ-170/200 |
Single screw 170-30D Single screw 200-34D |
600/900/1200 | 20-150/150/80 | 28kg/m3 | 450m3/d | 520kw |
| Packaging | Standard sea-worthy package mainly with wooden pallet and film coverage for the main machine body; wooden cases for electrical parts & consumable parts. In 3 40' containers. |
| 1 | Customize Design: Special design for every customer’s actual needs |
| 2 | Guarantee of quality: One year guarantee of quality for line under correct operation. |
| 3 |
Documents supply: Mechanical and electrical operation manual, Electrical connection drawing(1)and Operation technique manual(1). |
| 4 | After-sales service provided: Engineers team available to service machine overseas. |
| 5 | Machine maintenance: Machine lifelong maintenance while troublesome happens. |
| 6 |
Upgrade: Free production software upgrading production formula, process technology and machine structure improves, etc. |
