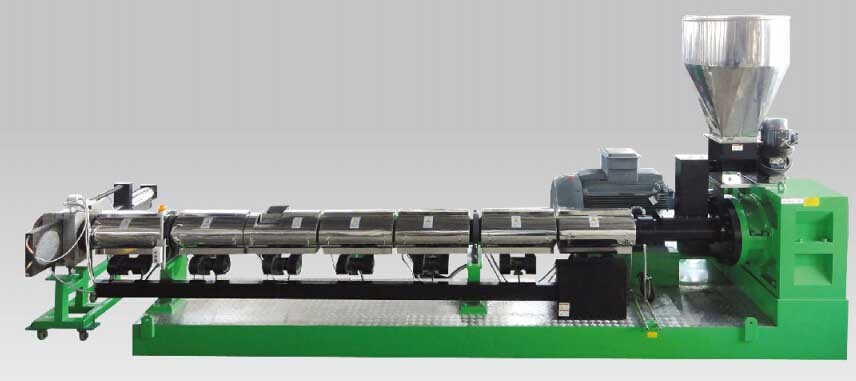

HDPE Pipe Single Screw Extruder 20mm - 63mm Pipe Diameter 55 - 280KW Power
Product Details
| Power(W): | 55-280KW | Motor: | SIMENS |
|---|---|---|---|
| Model: | Single Screw Extruder | Condition: | New |
| Screw Design: | Single | Automatic Grade: | Automatic |
| Highlight |
single screw extruder machine,extruder plastic machine |
||
Product Description
20mm-63mm hdpe pipe single screw extruder extruder with whole line
Process:
material Hopper Dryer and Auto charger → PE pipe extruder → marking line extruder → mould → calibrator → vacuum calibration tank → spray cooling water tank → printer → haul-off → cutter → pipe discharging rack
Description:
This PE pipe extrusion line can be used in HDPE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, it is a preferred gas and water pipe for ductwork system between city and its suburb, Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
Technical Data:
| Model | Screw diameter mm) |
L/D | Pipe range mm |
Machine motor power kw |
Total power kw |
line length m |
| PE-63 | 65mm | 33:1 | 16-63 | 37 | 80 | 24 |
| PE-110 | 65mm | 33:1 | 75-110 | 55 | 110 | 30 |
| PE-160 | 75mm | 33:1 | 90-160 | 90 | 150 | 32 |
| PE-250 | 75mm | 33:1 | 110-250 | 110 | 200 | 42 |
| PE-315 | 90mm | 33:1 | 160-315 | 160 | 240 | 44 |
| PE-400 | 90mm | 33:1 | 200-400 | 185 | 300 | 50 |
| PE-500 | 120mm | 33:1 | 250-500 | 280 | 350 | 56 |
| PE-630 | 120mm | 33:1 | 315-630 | 280 | 480 | 56 |
| PE-800 | 150mm | 33:1 | 400-800 | 315 | 550 | 72 |
Our Features:
1. Equipped with single or twin screw extruder, it can fulfill the need of processing PVC, PP, PE, ABS, PMMA et cetera.
2. 3-Dimension adjustable vacuum calibrating unit, optimized vacuun swith, flow switch, multiple choice of dies.
3. Optimized designed tooling, precise fabricated, high quality material.
4. Dynamic balance type crawler track haul-off, frequency conversion/AC speeding, stable running, convenient operation.
5. Cutter adopts professional designed saw blade, controlled by PLC, smooth flat cut.
6. Optimized length counter and dust collector configuration.
