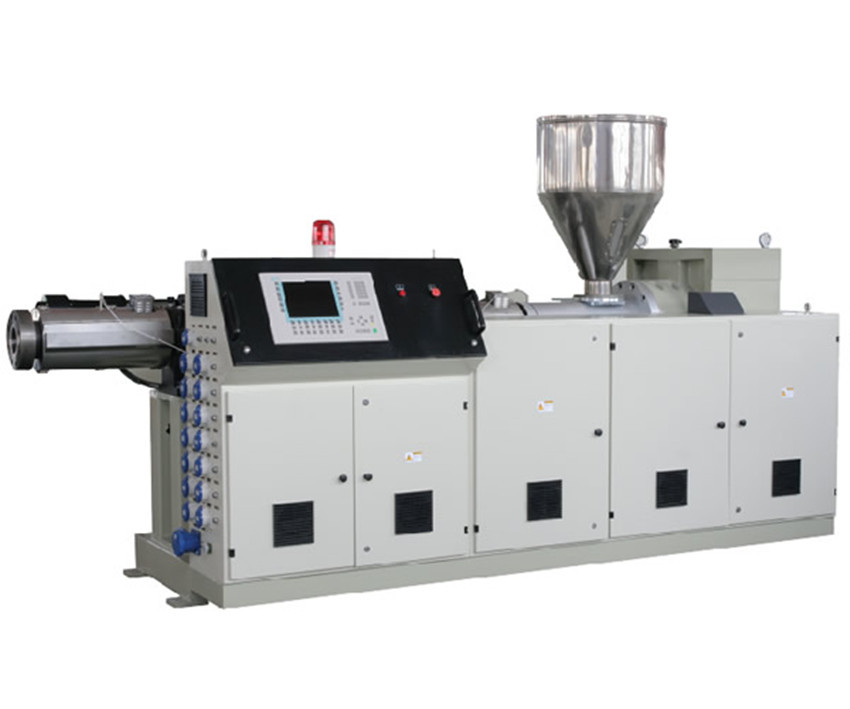

New Single Screw Extruder High Product Capacity Energy - Efficient

1. Single -screw, twin -screw extruder

2. Plastic(PVC,PC,PS,PET,PE,PP)sheet,

board, Profile production line

3. Wood plastic production line profile

4. Plastic(PVC,PC,PS,PET,PE,PP,etc.)pipe production line

5. Turn-key project for plastic sheet, profile,pipe production project

6. Mixer, crusher, grinder, mould, chiller, etc.,auxiliary machine

PVC,PE,PP,PS,ABS,PA,PMMA,PET ETC single screw extruder


Single screw extruder details:



• mainly for extruding PE, PP,PS and ABS thermoplastic plastics.
• Combined with corresponding auxiliary machinery (including molding head), it can process many plastic products: films, pipes, bars, plates, wire, insulating course with cable.
• can be used for granulating.
• Single screw extruder adopting involute gear drive, it mainly features advanced design, high quality, excellent plasticization, low energy consumption, low noise, stable operation, large loading capacity, long service life, etc.
• ,Temperature controller is Japanese RKC.Contactor SIEMENS. DC speed control system(Eurothrm).All digital DC converter.
• Speed reducer:The gear and the axis class components have used the high strength alloy steel material quality.
• designed specifically for customer need. Nitriding depth 0.5—0.6mm, hardness HV740—940.
• Barrel adopts feed and water cooling device structure for the all-in-one, with forced feeding Groove.

• Model	SJW45/33	SJW60/33	SJW75/33	SJW90/33	SJW120/33	SJW150/33
  Screw diameter(mm)	45	60	75	90	120	150
  L/D	33:1	33:1	33:1	33:1	33:1	33:1
  Transmission Power(KW)	37	75	110	160	280	400
  Center Height	1000	1000	1100	1100	1100/1300	1300
  Output(kg/h)	50	80	150	200	300	400

  OEM is welcomed

•
