Iso Big Capataiy High Speed Plastic Pipe Machine Hdpe Ppr Pipe Calibration Vacuum

China Iso Big Capataiy High Speed Plastic Pipe Machine Hdpe Ppr Pipe Calibration Vacuum supplier

Large Image :  Iso Big Capataiy High Speed Plastic Pipe Machine Hdpe Ppr Pipe Calibration Vacuum

Product Details:

Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE / ISO
Model Number: LB

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T,
Supply Ability: 15 SETS PER MONTH
Contact Now
Detailed Product Description
Condition: New Automatic: Full Automatic
Plastic Processed: PPR Motor Brand: Siemens Original
Inverter: ABB Main Electrical: Siemens And Schneider



High Speed Plastic Pipe Extrusion Line , HDPE PPR Pipe Calibration Vacuum







Product Description

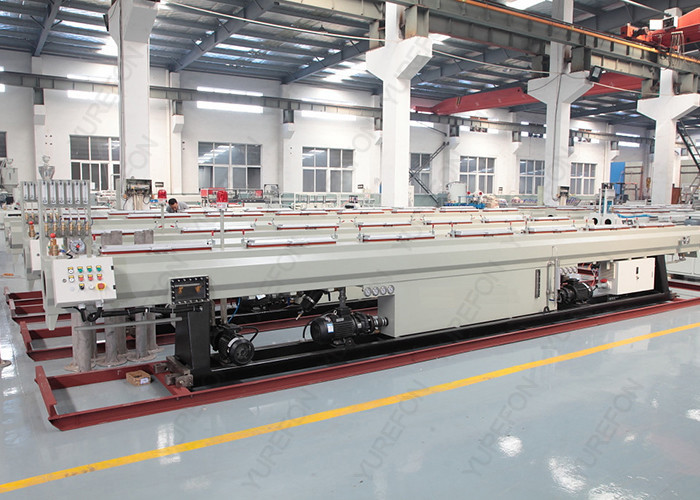

This LB calibration vacuum cooling tank is made of stainless steel. It has vertical, horizontal and height adjustable brackets, that can easily adjusted



to be concentric with the die exit. LB calibration vacuum cooling tank is an independent full vacuum, spray section, with cooling speed, stereotypes



and good effect.



A dense spray nozzle arranged in the vacuum box, allowing the pipe to cool rapidly as soon as it leaves the vacuum sizing sleeve. All spray nozzles



are made of ABS material to ensure that the water atomized state will not damage the pipe surface



High Speed PPR PE PP PVC Plastic Pipe Vacuum Calibration/Sizing/Forming Cooling Tank Machine







plastic pipe vacuum sizing machine







vacuum calibrator tank
1 Type One chamber
2 Length 6000mm
3 Pipe available range
4 Vacuum pump quantity 2(pcs) Yulong, Shanghai
5 Vacuum pump power 4kw
6 Direct connection centrifugal pump quantity 2pcs Yulong, Shanghai
7 Direct connection centrifugal pump power 4kw
8 Pipe line install method Two-way supply water and two-way drain water
9 Water pump seal ring Mechanical seal
10 Front-back moving motor power 0.75kw×2pcs
11 Front-back moving method Lead screw driving
12 Front-back moving range ±400mm
13 Left-right moving range ±40mm
14 Center height 1000±50mm
15 Tank material Stainless steel
16 Plate thickness 3mm
17 Tank cover material Cast aluminium
18 Cooling method Spray
19 Cooling Medium Cooling water
20 Spray pipe quantity 4pcsX 2sets
21 Nozzles quantity About 320pcs
22 Nozzles specification New type
23 Vacuum pump gas-water separator 2pcs
24 Water tank filter screen device
25 Flow meter 3pcs
26 Pipe carry method Nylon
27 Outside seal plate specification 16mm,∮20mm,∮25mm,∮32mm,∮40mm,∮50mm,63mm
75mm,90mm, 110mm

28 All fasteners inside the tank material Stainless steel
29 Liquid level height control method Floating ball, liquid level controller,
30 Water pump blast hole diameter 2"
31 Total drain water pipe diameter 2"
32 In-water diameter 1"
33 Shape Polygon
