PELLETIZING FOR PLASTIC , WASTE PLASTIC RECYCLING, RECYCLING MACHINE, PP / PE PELLETIZING
Product Details
| CAPACITY: | 100-500KG | EXTRUDER;S TYPE: | SINGLE SCREW OR PARALLEL TWIN SCREW |
|---|---|---|---|
| MOTOR POWER: | 132KW | CUTTER WAY: | STRING AND DIE FACE |
| HEATING CONCEPT: | ELECTRIC HEATER | SCREW MATERIAL: | 38CrMoAlA |
| TEMPERATURE CONTROLLER: | OMRON | INVERTER: | ABB |
| CERTIFICATION: | CE ISO | ||
| Highlight |
waste plastic recycling pelletizing machine,plastic recycling granulator machine |
||
Product Description

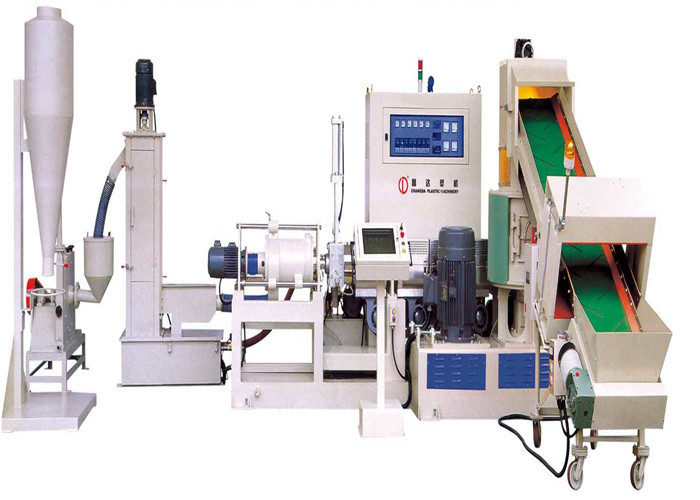

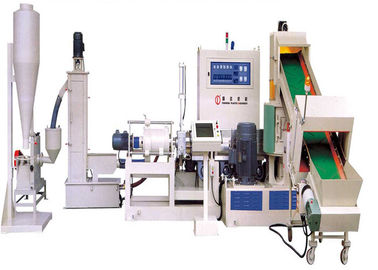

PE RECYCLING PELLETIZING LINE
A.-PELLETIZING EXTRUSION EQUIPPED WITH SINGLE STAGE EXTRUDER. (STRING CUTTING / DIE FACE CUTTING UNDER WATER).
COMPONENTS AND FEATURES:
- The pelletizing extrusion of single stage extruder with string cutting consists of loader (built-in agglomerator/shredder drum)–extruder-die head-water tank-string pelletizer- collection silo.
- The pelletizing extrusion of single stage extruder with die-face cutting under water consists of loader (built-in agglomerator/shredder drum) –extruder-die-face pelletizer- centrifugal dryer-collection silo.
- High efficiency and performance.
- Less power consumption and operator attendance.
APPLICATIONS:
- Applicable material: PP, PC, HDPE, LDPE, LLDPE, PET, EVA, PS, etc..
- Materials shape: woven bag, printed films, agricultural film, raffia and rigid scraps.
SPECIFICATIONS:
| Model | Extruder | Motor power (kw) | Hydraulic power (kw) | Capacity (kg/hr) |
| LB65S | SJ65/33:1 | 37 AC | 1.5 | 50-80 |
| LB90S | SJ90/33:1 | 45 AC | 1.5 | 80-100 |
| LB100S | SJ100/33:1 | 55 AC | 1.5 | 120-150 |
| LB120S | SJ120/30:1 | 90 AC | 2.2 | 200-250 |
| LB150S | SJ-150/28:1 | 110 AC | 2.2 | 300-350 |
| LB180S | SJ-180/28:1 | 160 DC | 3 | 450-500 |
B.-PELLETIZING EXTRUSION EQUIPPED WITH DOUBLE STAGE EXTRUDERS. (STRING CUTTING / DIE FACE CUTTING UNDER WATER)
COMPONENTS AND FEATURES:
- The pelletizing extrusion of double stage extruders with string cutting consists of loader (built-in agglomerator/shredder drum)–extruder-die head-water tank-string pelletizer- collection silo.
- The pelletizing extrusion of double stage extruders with die-face cutting under water consists of loader (built-in agglomerator/shredder drum) –extruder-die-face pelletizer- centrifugal dryer-collection silo.
- High efficiency and performance.
- Less power consumption and operator attendance.
APPLICATIONS:
- Applicable material: PP, PC, HDPE, LDPE, LLDPE, PET, EVA, PS, etc..
- Materials shape: woven bag, printed films, agricultural film, raffia and rigid scraps.
SPECIFICATIONS:
| MODEL | Extruders model | Extruder power | Hydraulic power(kw) | Capacity(kg/hr) |
| LB-120D | SJ120/22:1 / SJ120/12:1 | 45AC / 22AC | 2.2 | 200-250 |
| LB-150D | SJ150/22:1 / SJ150/12:1 | 90AC / 37AC | 2.2 | 300-350 |
| LB-180D | SJ180/22:1 / SJ180/22:1 | 110 AC/ 55AC | 2.2 | 450-500 |
| LB-250D | SJ250/22:1 / SJ250/22:1 | 200 AC/ 90AC | 2.2 | 800-1000 |
Product Highlights
PE RECYCLING PELLETIZING LINE A.-PELLETIZING EXTRUSION EQUIPPED WITH SINGLE STAGE EXTRUDER. (STRING CUTTING / DIE FACE CUTTING UNDER WATER). COMPONENTS AND FEATURES: The pelletizing extrusion of single stage extruder with string cutting consists of loader (built-in agglomerator/shredder drum)...
