High Capacity Pipe Extrusion Machine , Double Strands PVC Pipe Making Machine

China High Capacity Pipe Extrusion Machine , Double Strands PVC Pipe Making Machine supplier
High Capacity Pipe Extrusion Machine , Double Strands PVC Pipe Making Machine supplier High Capacity Pipe Extrusion Machine , Double Strands PVC Pipe Making Machine supplier High Capacity Pipe Extrusion Machine , Double Strands PVC Pipe Making Machine supplier High Capacity Pipe Extrusion Machine , Double Strands PVC Pipe Making Machine supplier

Large Image :  High Capacity Pipe Extrusion Machine , Double Strands PVC Pipe Making Machine

Product Details:

Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE ISO
Model Number: LB-63E

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Detailed Product Description
PIPE DIAMETER: 16-50 EXTRUDER'S POWER: 37KW
COLOUR: WHITE ORANGE BLACK PIPE NUMBERS: 2 PIPES
RAW MATERIAL: PVC MODEL: LB63E

HIGH CAPACITY PVC WATER PIPE EXTRUSION DOUBLE STRANDS DIAMETER 16-50MM



Process Flow:

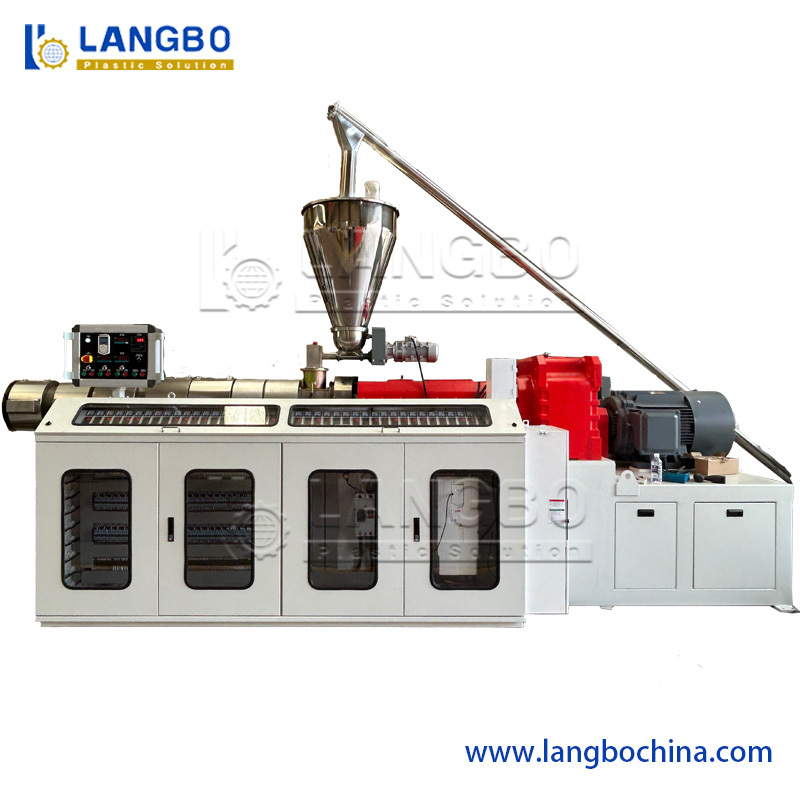

Loader→Conical double-screw extruder→Mould→Vacuum forming water tank→Spraying cooling tank→Haul-off machine→reversible stacker

Auxiliary:Belling machine,Mixer,Miller,Crusher



Application:

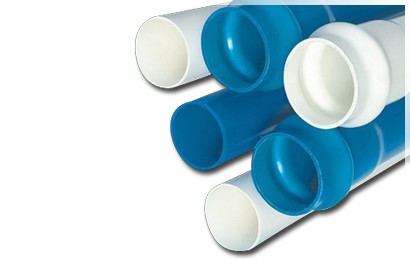

PVC pipe is widely used in drainage system,irrigation,electric conduit and so on.



Machine introduction:

1. Screw and barrel could meet the request of your formula with higher proportion of Calcium carbonate.Higher proportion of calcium carbonate means lower cost but the screw and barrel must be higher quality.

2. Our machine adopts ABB inverter,Omron/Delixi temperature controller,Schneider contactor and Simens switcher.High quality electrical component could meet the request of durable running at higher temperature in the place such as Southeast Asia and Africa.

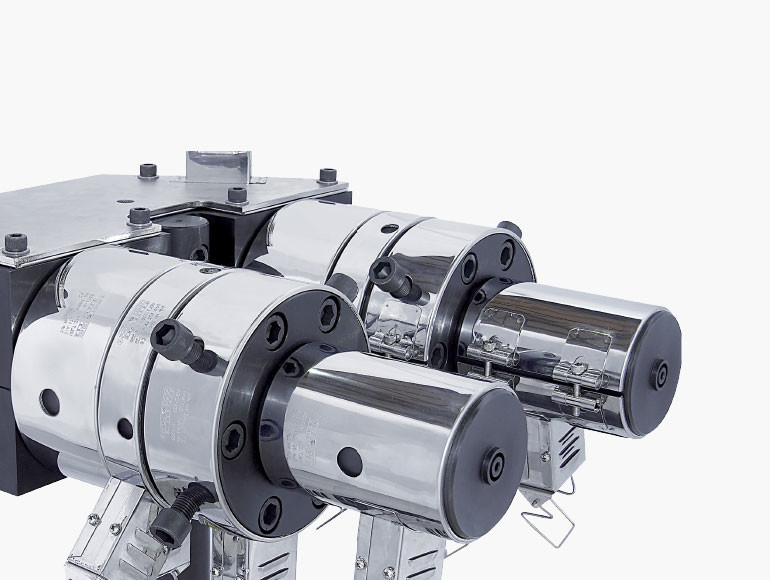

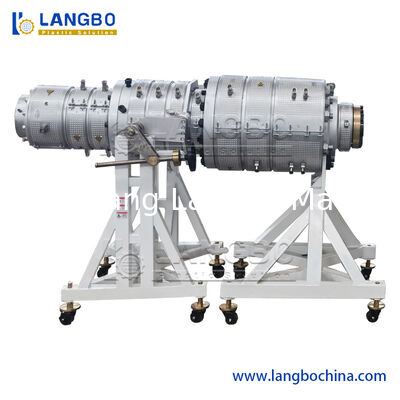

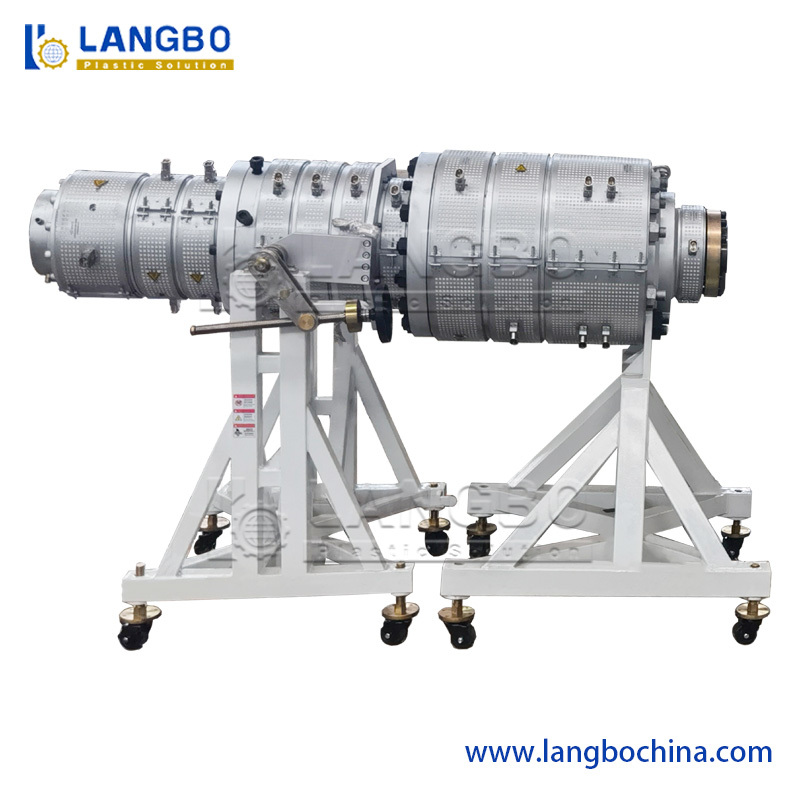

  • Double Strands Die-Head:

Our die-head designing gives ideal viscosity to melt material for pipe producing. It gives tube or shape to plastic after processing. All faces the plastic in contact with is polish, so that frication losses minimized.

LANGBO produce single layer, two layer and multi layer pipe die-heads. Foil cover head. Over steel pipe plastic covering die-head and other special die-head.

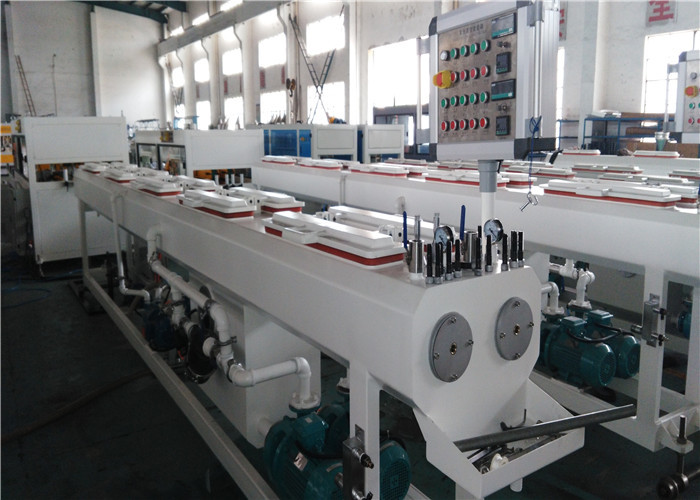

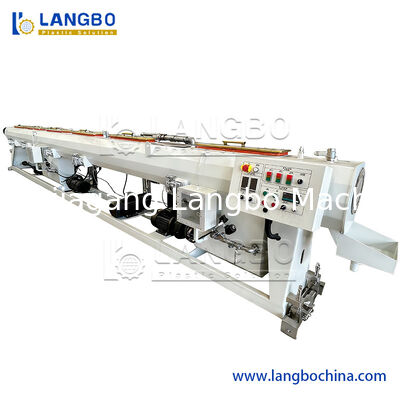

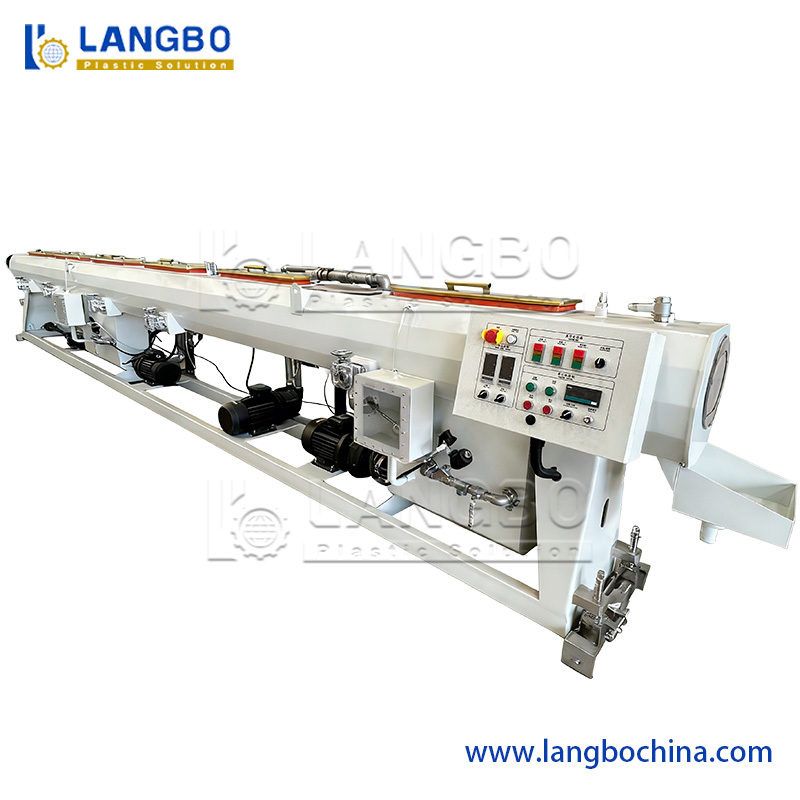

  • Double Strand Vacuum Tank:

LANGBO Vacuum Tanks are manufactured with stainless steel.

Our nozzles designing for maximum cooling performance. Cooled water sprinkles to hot plastic pipe outside face from the nozzles.

With high power water pump, cooled water can reach to pipe completely.

Our vacuum tank’s pressure can be adjusted, so vacuum pressure can be fixed according to pipe requirement.

We sealing gasket for every lid on the vacuum tank. This stops vacuum leakage and minimizing energy consumption.

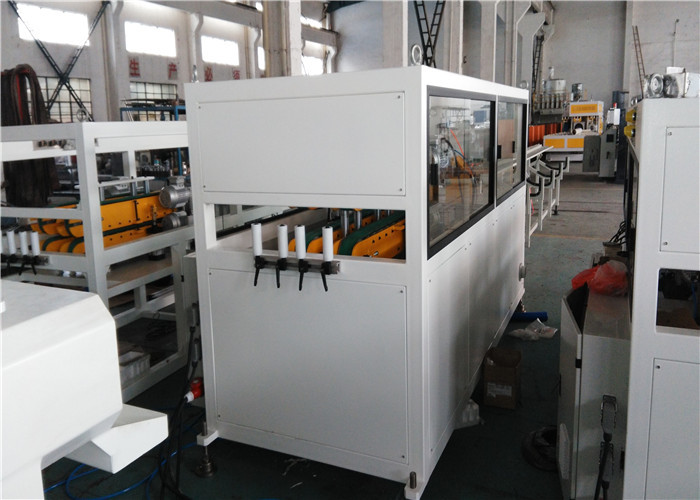

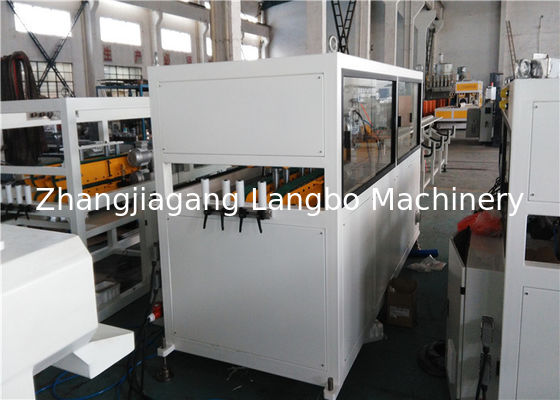

  • Double Strands Haul-offs:

With the material we have used in our haul-offs, we have very good adhesion to the pipe and ensure slip prevented.

The needed speed for setting of pallets can be changed with electrical inverter. Different line speeds are adjusted by using control panel easily.

We manufacture haul-offs depending on pipe diameter from 2 pallets to 10 pallets.

Our haul-offs can work synchronously with pipeline. As the extruder speed increasing automatically, haul-offs speed is increased.

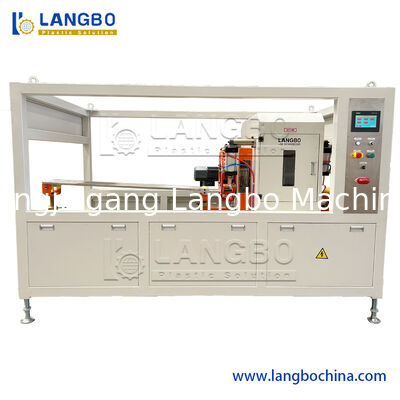

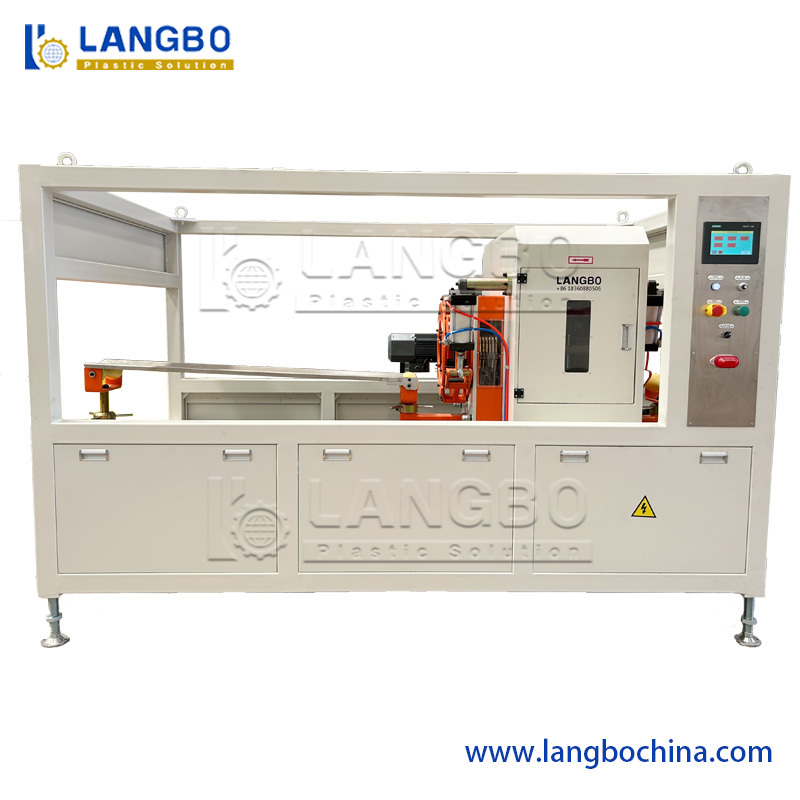

  • Double Strands Cutter:

LANGBO planetary saw cuts the pipe at designed length without any burr.

Cutting speed during the cutting is synchronous with the line speed by PLC, so accurate length is provided.

Pipe length to be cut is easily adjusted via the touch screen.

Pipe length measure by encode so desired length can cut precisely.

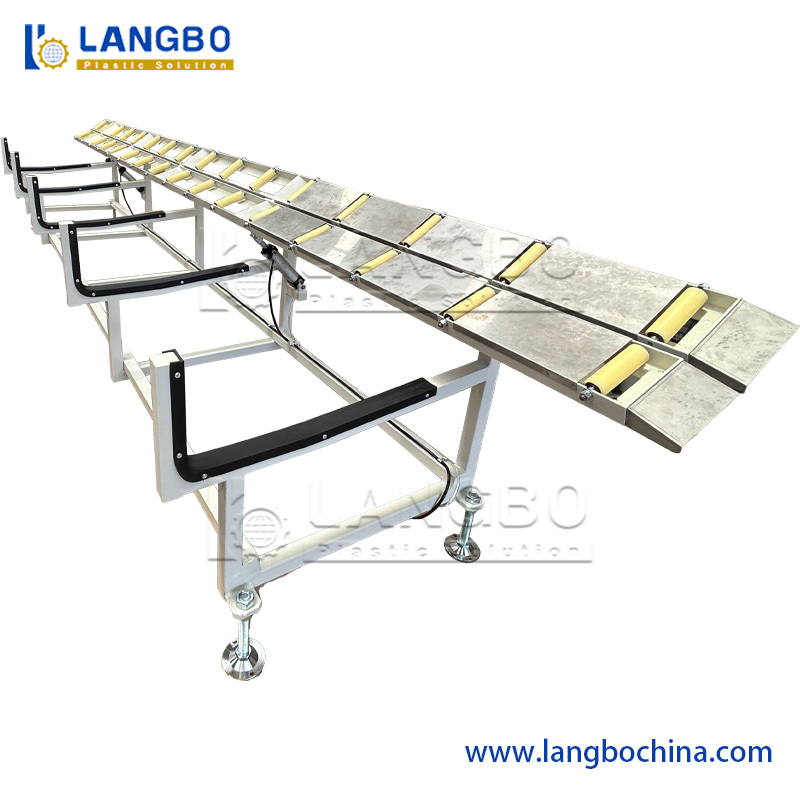

  • Double Strands Tipping Table:

It operates on pneumatic cylinder.



SPECIFICATIONS:



MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER (KW)
LB-32F 16-32 (FOUR PIPE) SJSZ65/132 37 AC
LB-32E 16-32 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-32W 16-32 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-40E 16-40 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-40W 16-40 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-50E 16-50 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-50W 16-50 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-63W 16-63 (DOUBLE PIPE) SJSZ65/132 37 AC
