Efficient HDPE Pipe Extrusion Line
Product Details
| Voltage: | Customized | Compressor Brand: | Copeland Or Panasonic |
|---|---|---|---|
| Evaporator: | Shell And Tube Evaportor | Model: | 50HP |
| Water Flowing Channel: | Copper Pipes | Refrigerant: | R407C/R22 |
| Fan: | Best Quality Fan | Water Tank Material: | SUS304 |
| Cooling Capacity: | 2kw-2500kw | Warrenty: | 18 Months |
| Packing Method: | Standard Export Wooden Case | ||
| Highlight |
Efficient hdpe pipe extrusion line,Efficient polyethylene pipe production line,Efficient hdpe pipe production line |
||
Product Description
- World-class hermetic scroll compressors from Copeland or Panasonic for low noise, minimal vibration, high efficiency and energy savings
- Environmentally friendly refrigerants including R407C, R134A, R410A, R22 with no ozone layer harm
- or Schneider electrical components ensuring stable operation and reliability
- Well-known brand pumps with extensive working range, low noise, reliable performance and leak-free operation
- High-quality SUS304 stainless steel tanks and solid piping systems for water purity and easy maintenance
- Cooling capacity range from 2kw to 2500kw with various models to meet industrial production demands
- European-designed exterior with electrostatic spray coating, simple structure and elegant appearance
- High Efficiency Axial Flow Fans and Shell and Tube Heat Exchangers
- Mold cooling in plastics industry
- Electroplating cooling pool temperature control
- Various cooling applications in electronics industry
- Cooling of acid, alkali and salt solutions in chemical industry
- Cooling and constant temperature control in fresh-keeping industry
- Delivery: 30 days after order confirmation
- Warranty: 12 months
- Payment: T/T 30% advance, T/T 70% before delivery
- Packing: Standard export wooden cases
| Parameter | Specification |
|---|---|
| Voltage | 380V/50Hz/3Phase/Customized |
| Electrical Parts | |
| Temperature Range | 3℃ - 50℃ |
| Refrigeration Capacity | 55 KW / 47300 Kcal/h |
| Compressor Type | Hermetic scroll type |
| Compressor Power | 10*2 HP |
| Compressor Brand | American Copeland |
| Compressor Quantity | 2 |

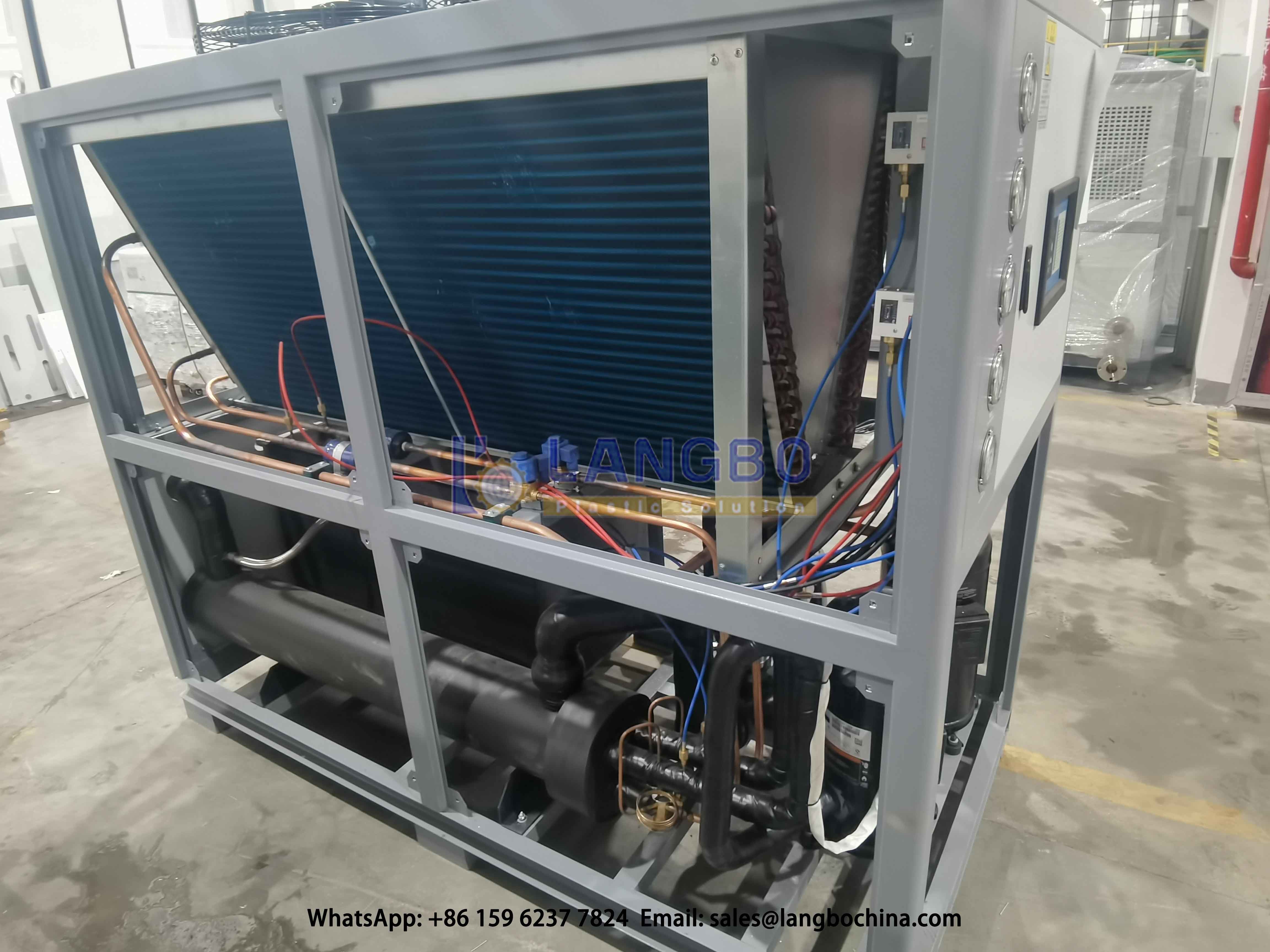

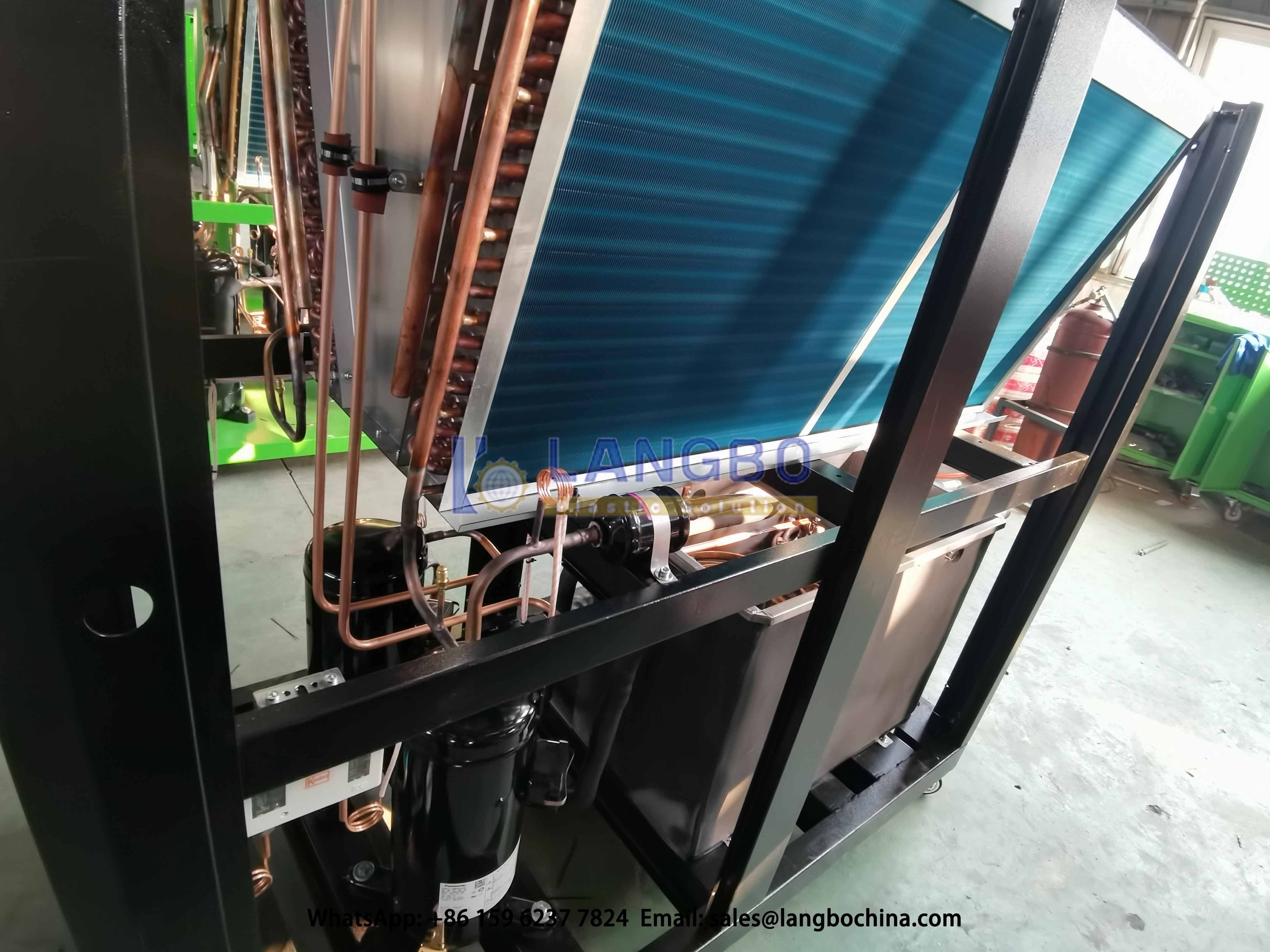

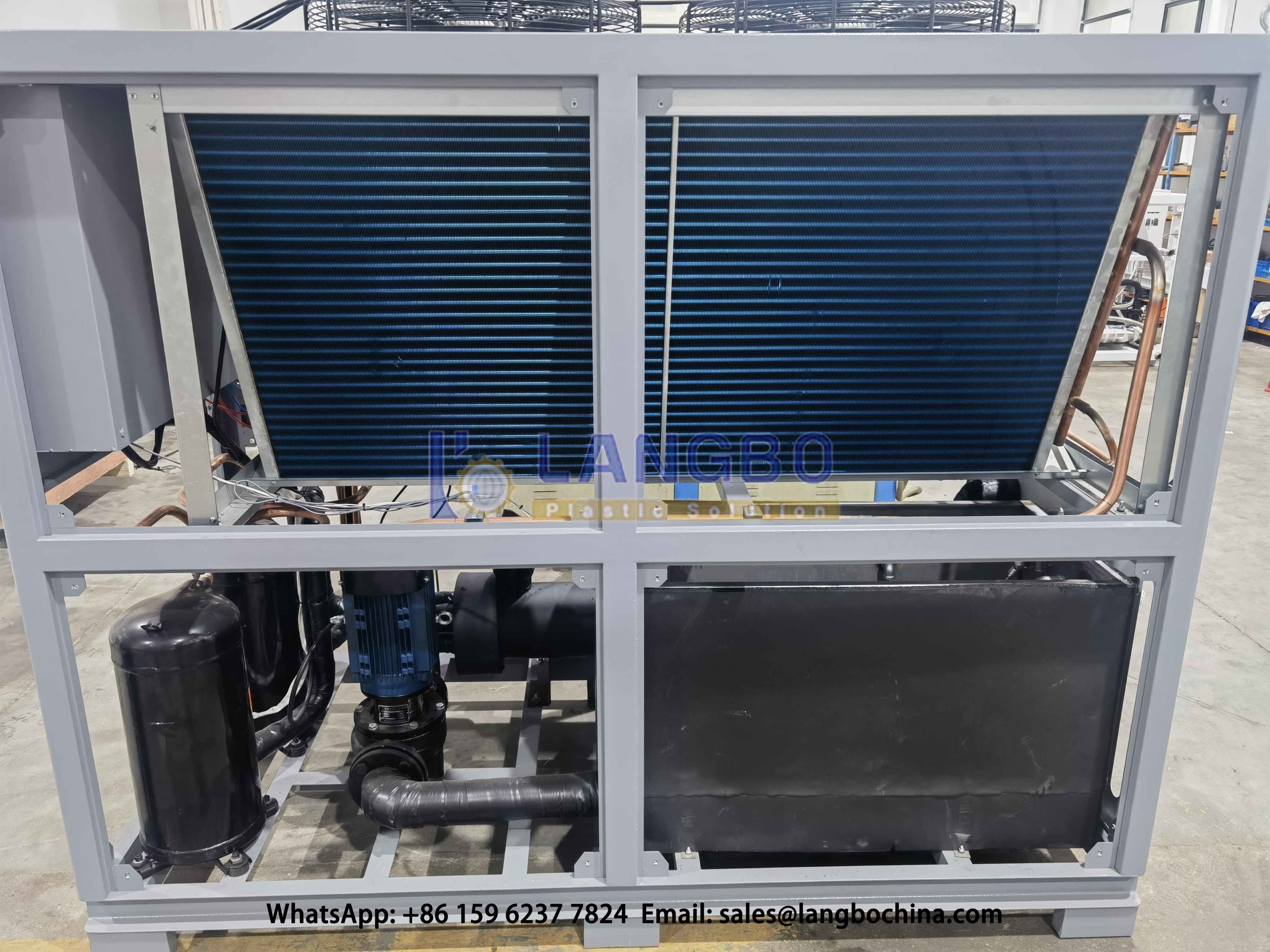

| Condenser Type | Efficient copper tube with aluminum finned + low noise outer rotor fan |
| Air Volume | 25000 m³/H |

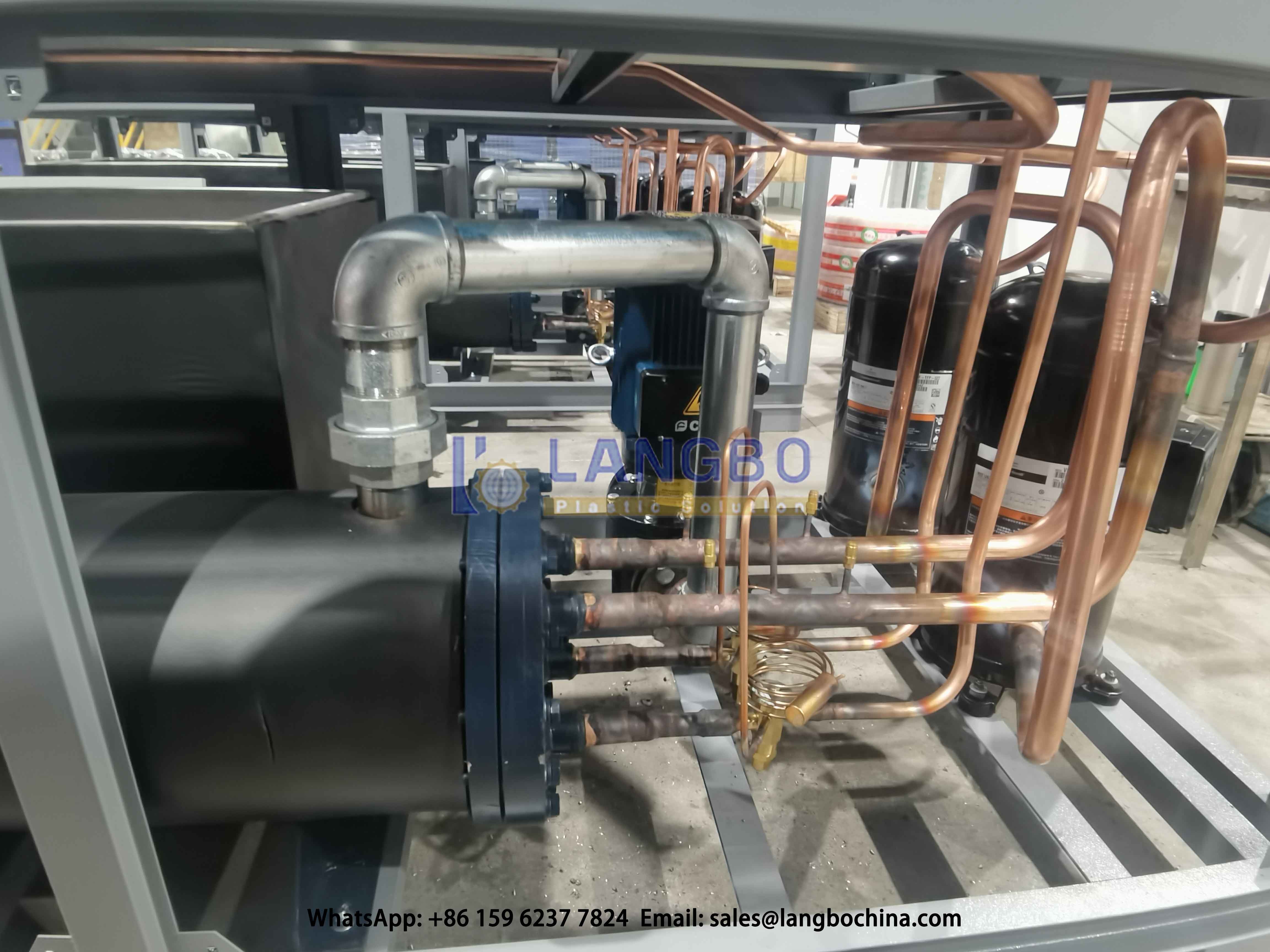

| Evaporator Type | Shell and tube evaporator |
| Cooling Water | 9.52 m³/H |
| Inlet/Outlet Pipe Diameter | 2" |
| Refrigerant Type | R407C |
| Control Mode | Outside the balanced expansion valve |
| Water Pump Power | 3KW |
| Water Pump Flow | 315 l/min |
| Water Pump Lift | 20m |
| Dimensions (L x W x H) | 2240mm x 1110mm x 1700mm |
| Weight | 880 KG |
