Product Details:
|
| Name: | PET Recycling Line | Automatic Grade: | Fully Automatically |
|---|---|---|---|
| Voltage: | According To Your Requirement | Weight: | 8 Ton |
| Material: | PVC,PE,PP,PET,PS Etc | Screw Design: | Double Screw/twin Screw |
| High Light: | pet recycling machine,pet plastic recycling machine |
||
Parallel Twin Screw Extruder Plastic Recycling Granulator Machine Pull Strap Pelletizer
Quick Details:
Specification:
1. Waste PET bottle flakes pelletizing line
2. IV condition will be controlled well
3. Twin-screw extrusion pelletizing line
4. High efficient, long service life
PET plastic pelletizing machine:
These TSSK Series Twin / Double Screw Extruders are specially designed for PET bottles, flakes, PVC, Plastic
sheets and other crushed materials, with good performance and high output, and are easy to operate and
maintain.
This machine can carry out ideal viscosity of PET without complicated pre-crystallization dryer system. Only a
bit IV will be recycled. It can improve IV in the condition of adding some suitable additive.
Application Raw Materials: PET, PVC, WPC, PP, PE, HDPE, etc
Material shapes: bottle flakes, sheets, etc

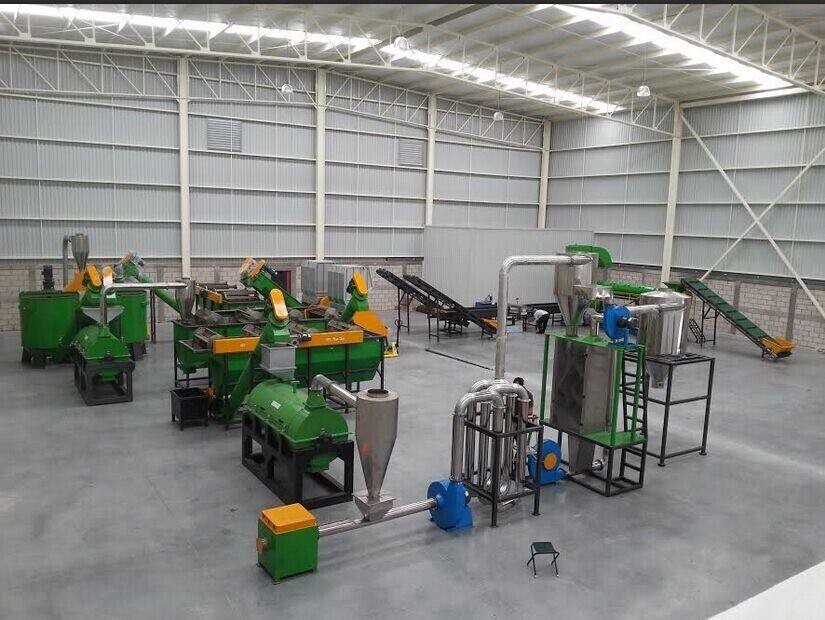

Production Process:
Use a Spiral charger to feed materials into the Extruder– materials evenly squeezed, melted, and plasticized in
the Extruder– material strips coming out from the machine head, after filtering system(Hydraulic Screen
Changer)– being cooled by Water tank– being dried by Gale dryer (strong dryer)– being transferred and cut in
the Pelletizer– being collected by Silo– the End
Application of PET pellets:
1. This Granulating machine is applied in PET waste flakes recycling field. Through extrusion, cutting and dry
process, the waste bottle will become to be pellets. The pellets are widely used in plastic industry, like sheet,
and profile production.
2. It can carry out ideal viscosity of PET without complicated pre-crystallization dryer system. Only a little IV
will be reduced. It can improve IV in the condition of adding some suitable additive.
3. From feeding system to final products, we can design and work out a complete system to satisfy all of your
production requirements. We will provide you with a pelletizing system of good quality and price as per your
requirements.
4. This production line is mainly used for the compounding, filling, reinforcing, pelletizing and modification of
plastic granules.
Main Technical Parameter:
Normal type:
| Model | TSSK-20 | TSSK-30 | TSSK-35 | TSSK-50 | TSSK-65 | TSSK-75 |
TSSK-95 |
|
Screw diameter (mm) |
21.7 | 30 | 35.6 | 50.5 | 62.4 | 71.2 | 91 |
|
Rotary speed (rpm) |
600 | 400 | 400/600 | 400/500 | 400/500 | 400/500 | 400/500 |
|
Main motor power (KW) |
4 | 11 | 11/15 | 37/45 | 55/75 | 90/110 | 220/250 |
| L/D | 32-40 | 28-48 | 32-48 | 32-48 | 32-48 | 32-48 | 32-40 |
| Output(kg/hr) | 2-10 | 5-30 | 10-80 | 20-150 | 100-300 | 300-600 | 600-1000 |
High torque type:
| Model | TSSK-50B | TSSK-65B | TSSK-75B |
TSSK-75D |
| Screw diameter | 50.5 | 62.4 | 71.2 | 71.2 |
|
Rotary speed (rpm) |
600 | 600 | 600 | 500/600 |
|
Main motor power (kw) |
55 | 90 | 132 | 200/250 |
| L/D | 32-64 | 32-64 | 32-64 | 32-64 |
| Output(kg/hr) | 120-280 | 180-400 | 250-650 | 500-1200 |
