Product Details:
|
| RAW MATERIAL: | PET BOTTLES | Voltage: | 380V |
|---|---|---|---|
| PRE WASHER: | AVAILABLE | TOTAL POWER: | 155KW |
| WASHING WAY: | HOT WATER TANK | Power(W): | 80-120KW |
| High Light: | pet recycling machine,pet plastic recycling machine |
||

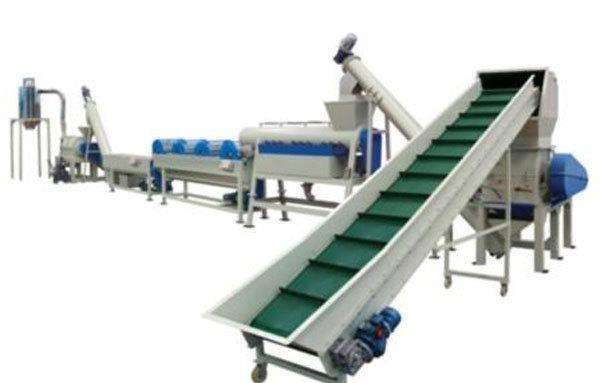

PET Bottle Recycling Machine
To separate PET bottles to flakes from PE/ PP label, cap, oil, garbage, protect the
environment, avoid white pollution.

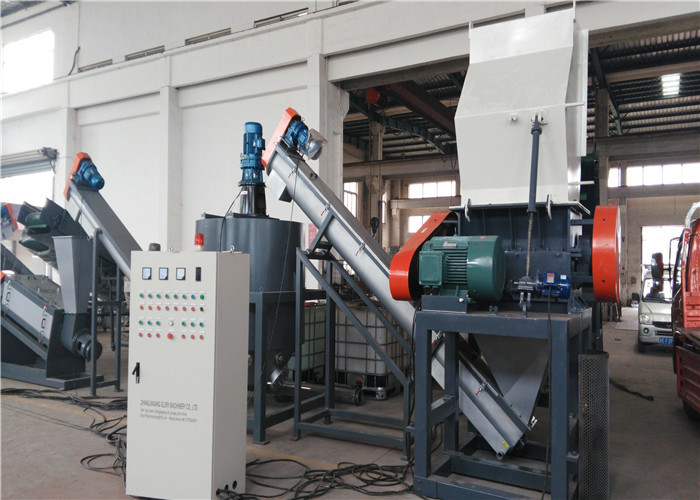

This recycling line is composed of garbage separation (automatic & manual), bottle &
flake crushing, cold & hot washing & cleaning, flake dewatering & drying, dust & label
removal, packing, etc.
Main technical parameters:
| No | Item | Qty | Remark |
| 1 | Bale breaker | 1 set | Cut and break packaged PET bottles |
| 2 | Belt conveyor | 1 set | Conveying bottles |
| 3 | Screening machine | 1 stet | Filtering sand,dirty,impurity |
| 4 | Belt conveyor | 1 set | Conveying bottles |
| 5 | Label remover | 1 set |
Removing label from surface of bottle Label removing efficiency:90%-95% |
| 6 | Manual sorting table | 1 set | Sorting different plastics by manually |
| 7 | Metal detector | 1 set |
Detecting metal,aluminum, Stainless steel and so on automatically |
| 8 | Belt conveyor | 1 set | Conveying bottles |
| 9 | Wet crusher | 1 set |
With water, the material of the blad e adopt SKD-II or 9CrSi |
| 10 | Screw feeder | 1set | Conveying flakes |
| 11 | Twin screw floating washer | 1 set |
Washing and separate PP caps/label according to different specific gravity |
| 12 | Screw feeder | 1 set | Conveying flakes |
| 13 | Friction washer | 1 set |
High friction efficiency by high speed, adopt Germany technology |
| 14 | Twin-screw floating washer | 1 set |
Washing and separate PP caps/label according to different specific gravity |
| 15 |
Dewatering machine |
1 set |
High dewatering efficiency by high speed, adopt Germany technology, water content 5% |
| 16 | Label separator | 1 set |
Separating leftover labels from pet flakes |
| 17 |
Drying system and Storage hopper |
1 set |
Drying by electric, water content ≤2% |
| 18 | Electrical control cabinet | 1 set |
Adopts ABB , SIEMENS and OMRON as main electric component. |
|
Annotation: Some equipment can be increased or decreased as the dirty degree of the bottles and the capacity of the PET recycling line.
|
|||
