|Other Name:||Crushing And Washing Line||Application:||Pp Pe Pvc Abs.etc, Plastic Recycling|
|Certification:||CE SGS BV TUV||Model Number:||Double Stage|
plastic reprocessing machine,
plastic waste recycling machine

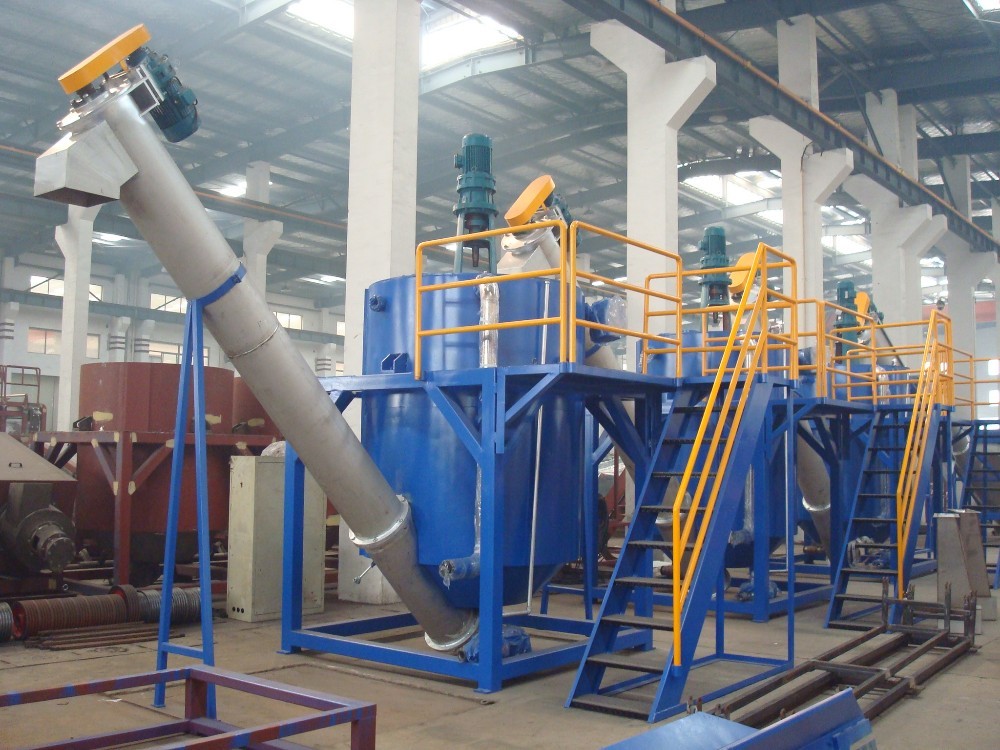

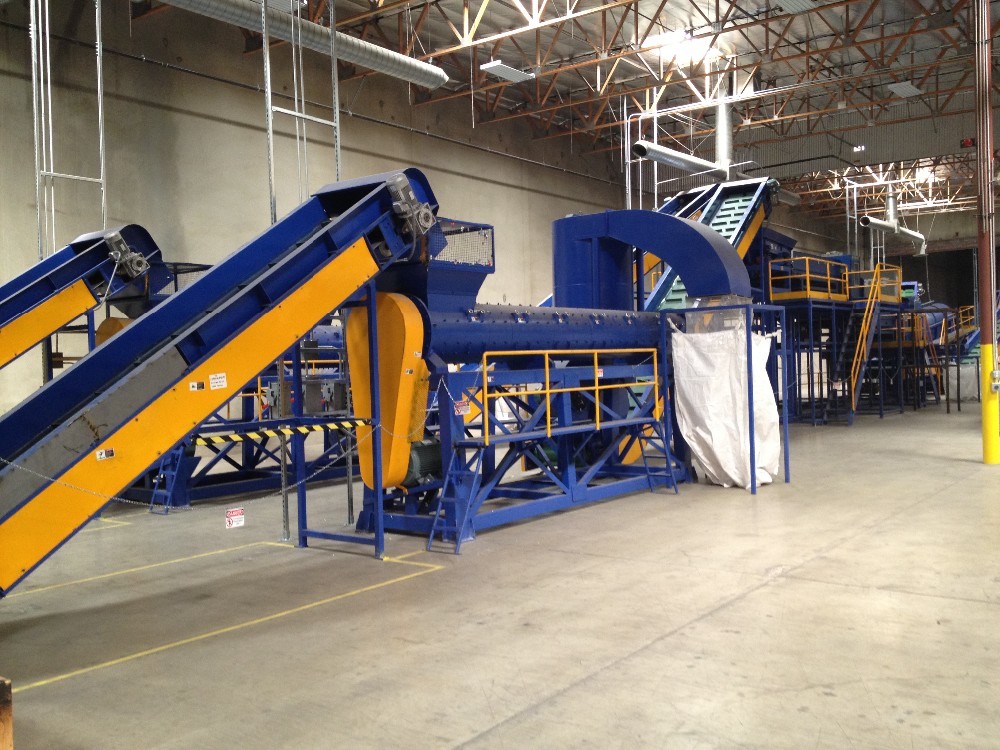

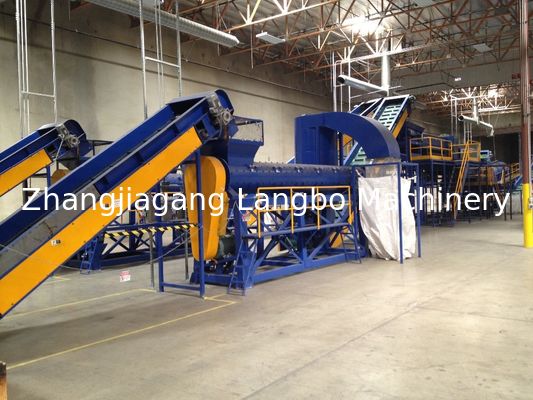

Plastic Waste High Speed Friction Washing/plastic Waste Pet Bottle Washing Recycling Line
1. This mineral water bottle recycling mainly used for dealing with waste PET bottle, barrel etc.
2. To separate PET bottles to flakes from label, cap, oil, garbage.
3. This PET bottle washing machine is composed of separator, crusher, cold & hot washing system, dewatering, drying, packing system, etc.
4. Easy to operate,Full automatic.
|The Main/ First stage||
1. Screw and barrel
Screw dia150mm, L/d 22:1, one set, based on 38CrMoALa material(HV >=950-1100)
2. Gearbox ZLYJ 280
3. Motor 45KW, the brand is Huadong, made in Shanghai, quite a good brand in China
4. Inverter 45KW, the brand is Painier, quite a good brand in china
5. Screen changer with hydraulic pump,250mmx250mm
|The Auxiliary/ Second stage||
6. Screw and barrel
Screw dia130mm, L/d 10:1, one set, based on 38CrMoALa material(HV>=950-1100)
7. Gearbox ZLYJ 200
8. Motor 18.5KW, the brand is Huadong, made in Shanghai, quite a good brand in China
9. Inverter 18.5KW, the brand is Painier, quite a good brand in china
10. Screen changer with hydraulic pump, 250mmx250mm
The other parts:
11. Cutting machine in speed change, 4kw ,one piece, (the knife is made in alloy ) the knife is 200mm width, with 24 pieces
12. Water tank, one piece, in stainless
13. Electrical box, one piece, the brand is Chint, famous brand in China
14. Container, one piece
15. heating ring: ceramic heating
1.Recycling machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE and PP, etc. Its
equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control.
2.The granulating crusher uses adjustable speed motor, pelleting with and extruding machine at the same
discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance and
favorable economic benefit.
3. It adopt latest advanced technology , design with simple structure and easy to operate,high production capacity,
economy energy consumption, reliable performance
4.The material component of each machine on our products with high quality ,ensures whole washing line with long
service life time.
