380V PVC Foam Board Extrusion Line Production Machine 3phase Moisture Proof
Product Details
| Condition: | New | Inverter: | ABB |
|---|---|---|---|
| Screw Design:: | Double Screw | Voltage: | 380V, 50Hz, 3phase |
| Type: | PVC Foam Board Making Machine | Power(W): | 110kw |
| Highlight |
380V PVC Foam Board Extrusion Line,3phase PVC Foam Board Extrusion Line,Moistureproof PVC Foam Board Extrusion Line |
||
Product Description
PVC Foam Board Making Machine Production
PVC FOAM BOARD
PVC foam board is a very common advertising and building material. Accounting to the production process, PVC foam board can be divided into PVC Celuca foam board and PVC free foam board . PVC foam board is also called expanded PVC , and its chemical composition is polyvinyl chloride.
Its chemical properties are stable, Acid and alkali resistant! Moisture-proof, mildew-proof, thermal insulation, sound insulation, flame-retardant and self-extinguishing, smooth surface, moth-proof and light, non-absorbent. The surface hardness of PVC free foam board is average, and it is widely used in advertising exhibition boards, mounting drawing boards, silk screen printing, carving, etc.
PLASTIC FOAM BOARD RAW MATERIALS
Every PVC foam board manufacturer has a recipe, which shows the quantities of the raw materials to be mixed before the process starts.
There are three main types: PVC resin, Calcium carbonate and PVC additives.
1. PVC Resin
PVC resin is a thermoplastic powder and the chief raw material for the pvc foam board making machine. It has a number of properties such as anti-corrosives and insolubility
The resin is packaged in bags for shipping and has a white color, each bag is 25kg normally.
2. Calcium carbonate
Calcium carbonate powder is widely used in PVC manufacturing as a filler.
It also enhances the physical strength and whiteness of the final products.
Because it costs less than PVC resin and applies more in your formula can reduce the cost of manufacturing. However, it can wear down the extruder’s conical screws more quickly.
3. PVC additives
You will require PVC additives to enhance the properties of the final PVC foam board.
Some additives also make the manufacturing process run smoothly and ensure you get consistence of the final products.
EXCELLENT PROPERTIES
· Excellent chemical resistance
· High strength-to-weight ratio
· Flame resistance, among others.
FOAM BOARD PROCESS FLOW
For Foam Board Production Line the general processing step can be like this:
Mixing--Feeding---Extrusion----Forming and Cooling----Cooling---Hauling off -- Cutting
PRODUCT DESCRIPTION
| Product name | PVC Foam Board / PVC Foam Sheet |
| Thickness | 1-25mm |
| Size | 1220*2440mm, 1560*3050mm, 2050*3050mm, or customized |
| Density | 0.43-1.05g/cm3 |
| Feature | Sound insulation, Heat insulation, Moistureproof, Waterproof |

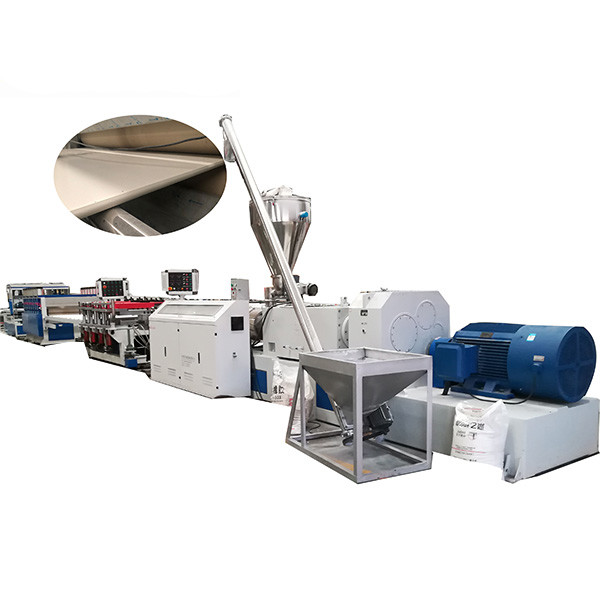

COMPONENT OF WPC/PVC FOAM BOARD PRODUCTION LINE
| No | Name | Type | Quantity |
| 1. | 500/1000 hot and cold mixer | SRL-Z500/1000 | 1set |
| 2. | 200/500 hot and cold mixer | SRL-Z200/5000 | 1set |
| 3. | Automatic feed loader | ZJF500 | 1 set |
| 4 | Conical twin screw Extruder | SJSZ80/156 | 1 set |
| 5. | Conical twin screw Extruder | SJSZ65/132 | 1 set |
| 6. | Mould | / | 1 set |
| 7 | Calibration platform | ZKDX-1220 | 1 set |
| 8 | Bracket | TJ-2000 | 1 set |
| 9 |
First Haul off machine Edge cutter |
SLQ -1220 | 1 set |
| 10. | Cross cutter | HQG-1220 | 1 set |
| 11. | Stacker | BFL-1220 | 1 set |
| 12. | Crusher | SWP400 | 1 set |
| 13 | Miller | SMF-400 | 1 set |
| SPECIFIC SPECIFICATION | ||
| 1 | Main motor frequency controller : or ABB | |
| 2 | Temperature controller : OMRON or RKC | |
| 3 | AC controller : Schneider or simens(As customer requirement) | |
| 4 | Thermal overload relay : Schneider | |
| 5 | Switch : DELIXI or Schneider | |
| 6 | All electrical units on components from standard companies like OMRON/RKC/ | |
