Product Details:
|
| PIPE DIAMETER: | 16-630 | EXTRUDER'S POWER: | 22KW-160KW |
|---|---|---|---|
| COLOUR: | WHITE ORANGE BLACK | WATER PIPE DIAMETER: | 16-630MM |
| CONTROL: | PLC | APPLICATION: | WASTED WATER |
| Voltage: | As Requiremen | Automatic Grade: | Full-automatic |
| Application: | Pipe | Screw Design: | Double-screw |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,commissioning And Training | Warranty: | 1 Year |
| Inverter: | ABB | Color: | Customizable |
| Raw Material: | PVC Powder | Motor: | SIEMENS Brand |
| Contactor: | SIEMENS | ||
| High Light: | Sewage Water PVC Pipe Extrusion Line,sewage water pvc profile extruder machine,sewage water pvc profile production line |
||
Plastic Electric Conduit And Sewage Water PVC Pipe Extrusion line
General introduction:
This Plastic PVC, UPVC Electric Water Pipe Extrusion Making Machine is mainly used to produce agricultural/water supply/drainage pipes, architectural water supply/drainage pipes, cable laying pipes etc. This PVC pipe extrusion line adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.

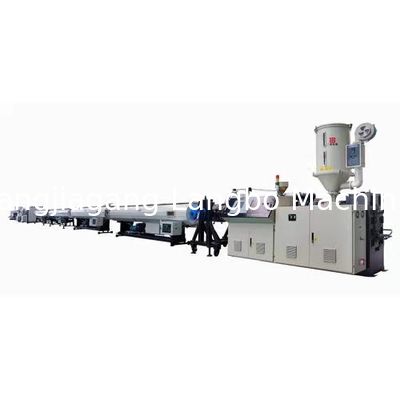

PVC pipe making machine production line is consist of SJZ series conical twin screw extruder, mould, vacuum cooling tank, spray cooling tank(for big size pipe), haul-off machine, cutting machine, stacker, etc. It also need some auxiliary machinery. For example, hot&cooling mixer, crusher, milling machine, belling machine, etc. The hot&cooling mixer is necessary, others is optional
| Model/data | Pipe diameter | Extruder model | Speed | Max capacity |
| FP63 | 16-63mm | LSZ51/105 | 1-10m/min | 120kg/h |
| FP160 | 75-200mm | LSZ65/132 | 1.5-5m/min | 260kg/h |
| FP400 | 200-400mm | LSZ80/156 | 0.5-1.5m/min | 400kg/h |
| FP630 | 400-630mm | LSZ92/188 | 0.1-0.8m/min | 650kg/h |
Details:
Conical double-screw extruder
Feeding system: Motor Power: 1.5kw ;Force Feeder Motor Timing:ABB inverter
Screw : Diameter of screw: 92/188mm ; Material of screw: 38CrMoAl
Barrel: Material: 38CrMoAlA; Heating mode: Cast aluminum + stainless steel covering ; Method of cooling: air blow
PVC pipe extrusion mould
Material: Made by 40Cr. Inner surface polished
Pipe Thickness Control:With 2 different pipe wall thickness
Calibration mould material:Wearable tin bronze ZQSn5-2-5
Vacuum calibration tank
Dimensions: Length: 4000mm
Vacuum pump: Hydroseal vacuum pump Power: 2.2kw x2
Water pump: Power: 3KW x 2
Tank material: Stainless steel, Limit switch; Electric cabinet with water-proof protection
Pipe Haul-off Machines
Haul-off length:1000mm
Haul-off Motor Power:0.55KW×4sets
Haul-off Speed :1.1KW×2sets Inverter
Haul-off Speed: 0.5~12 meters/min
Pipe Cutter
Cutting pipe diameter scope: 16~40mm
Saw blade Diameter: 230mm
Cutter motor power:0.75KW×2 sets
Blade Bracket Longitudinal Moving Distance: 500mm
Pipe Stacker
The length of stacker: 2 meters
Support-Board:0.8mm stainless steel board
Working Method: pneumatic, with stroke switch soleplate, to provide the fixed length cutting signal
