Product Details:
|
| RAW MATERIAL: | PET BOTTLES | Voltage: | 380V |
|---|---|---|---|
| PRE WASHER: | AVAILABLE | Flake Size: | 14mm(based On Customer’s Requirements) |
| WASHING WAY: | HOT WATER TANK | Function: | Sorting, Crushing, Washing And Drying |
| High Light: | 380V PET Bottle Recycling Line,ISO PET Bottle Plastic Recycling Line,14mm PET Bottle Recycling Line |
||
CE ISO PET bottle plastic washing machine equipment with high output
The waste pet bottle recycling line is transferred the waste into clean flakes by crushing and washing. PET material are crushed by granulator, washed by cold water in PET Separation Tank and separated from floating plastics. Cold washed flakes are washed with chemical solution added hot water in Hot Washing Tank. They are cleaned intensively with high speed and friction in Horizontal Centrifuge and rinsed in second Separation Tank by cold water. Clean PET flakes are transferred to Dynamic Centrifuge and residual moisture of flakes are reduced to 1%.
Specifications:
|
Line Details:

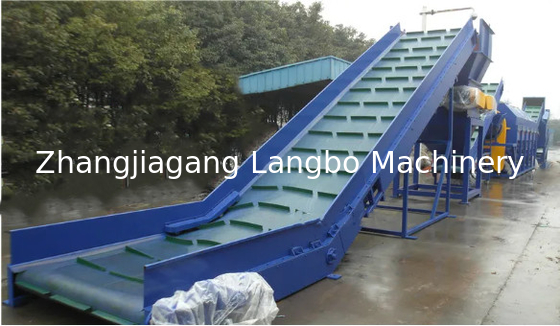

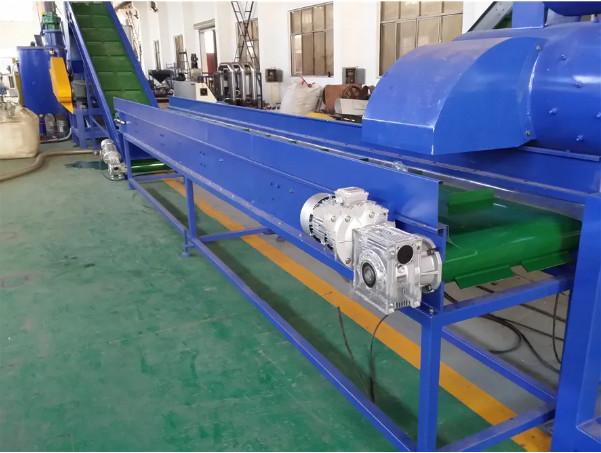

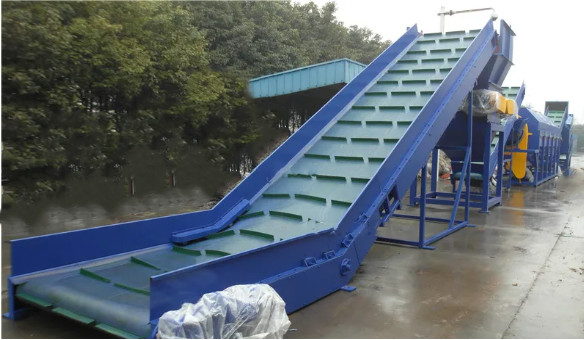

Belt conveyor
Control method: frequency control

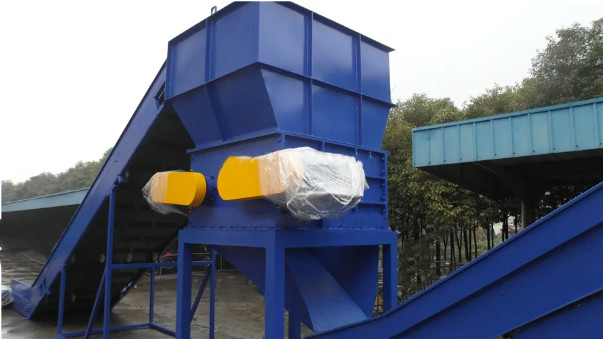

Bale opener machine
Stirring motor: 7.5kw*2

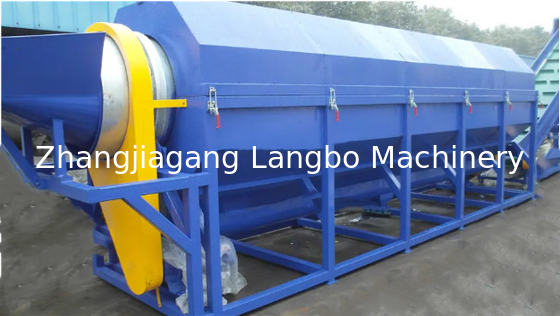

Trommel (pre washer)
Dimension(L*W):5000*1500mm; Material of barrel: Perforated plate, galvanized treatment
Mechanical Label remover machine
Motor Power:11/22/37KW; Blade material: Tungsten steel, removable. Removing labels from bottles, label remove rate reach 99%

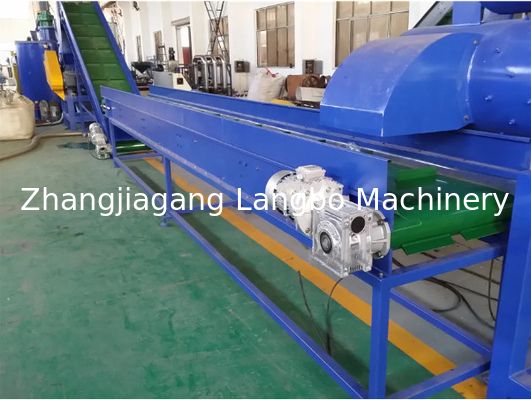

Manual separating table
Dimension (L*W*H): 8000*1000*1200mm

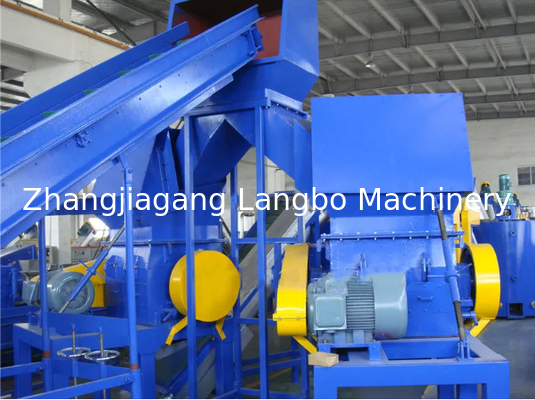

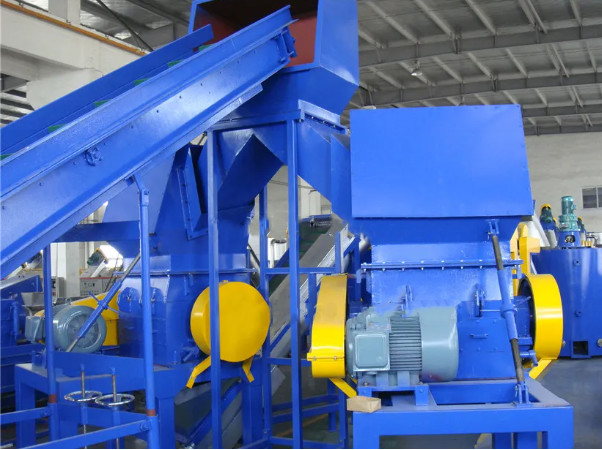

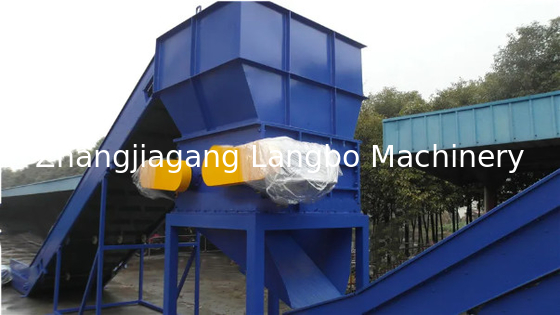

Crusher
Motor power: 37/55/90kw
Fix knives quantity: 4 pc
Moving knives quantity: 10 pc
Knife material: SKD-11(from Japan)
crushing with water
Floating washer
Dimension(L*W): 4500*1500mm
Made of SUS304 stainless steel

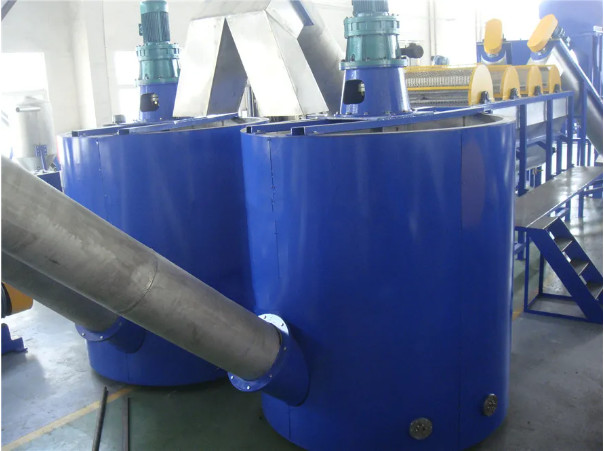

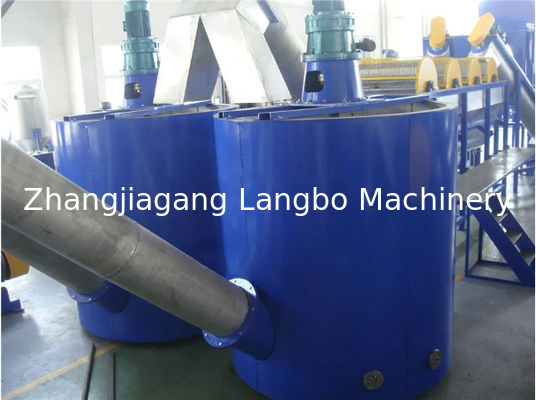

Hot washing chamber
Diameter of the barrel: 1800/2200mm,
Heating type: Electric heating /Steam heating for option

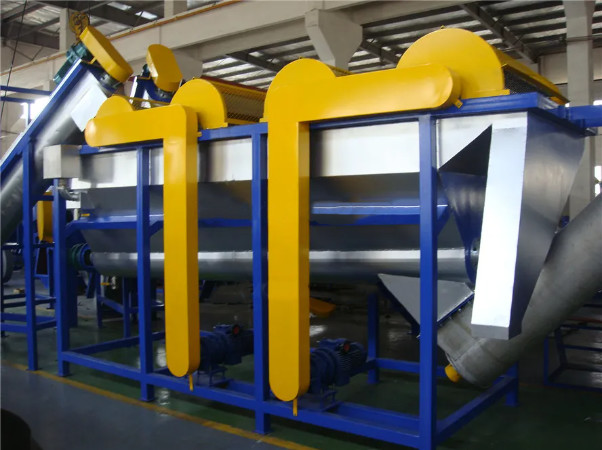

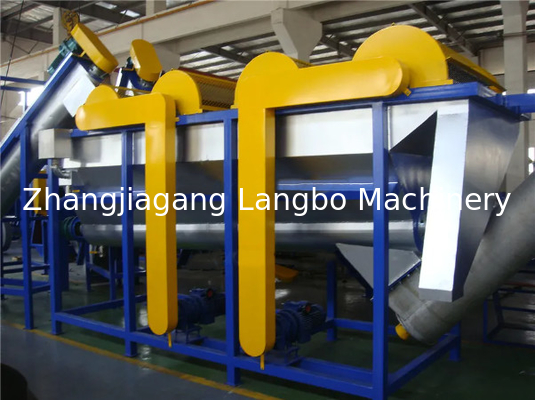

High speed friction machine
Motor power: 22/37/45Kw
Rotation speed 1200rpm
Main shaft through dynamic balance treatment.
Floating washer tank (the second one )
imension(L*W): 4500*1500mm
Made of SUS304 stainless steel
Floating washer tank (the third one )
Dimension(L*W): 4500*1500mm
Made of SUS304 stainless steel

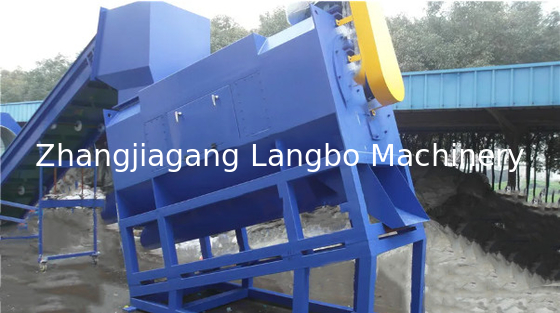

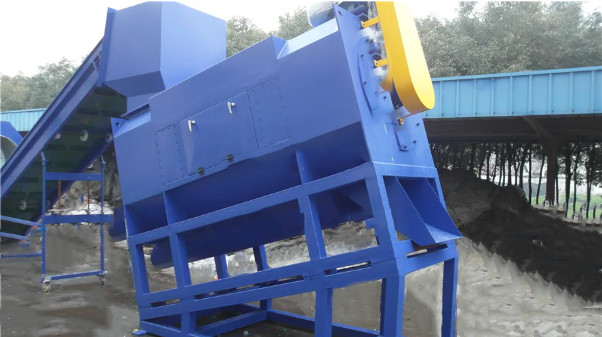

Horizontal dewatering machine
Motor power: 22/37/45kw
Rotation speed reach 1500rpm
Main shaft through dynamic balance treatment Get rid of water
Drying pipe system
Heating power: 36kw
Made of stainless steel
Zig zag air classify system
Remove the labels and small dirty at last step
Storage hopper
Volume: 3m3, made of stainless steel
Control cabinet
France Schneider contactor/ Japan Omron temperature controller/ ABB invertor
