Plastic HDPE PE Single Wall Double Wall Sewer Water Drainage Pipe Hose Tube Extrusion Production Making Manufacturing Machine

Plastic HDPE PE Single Wall Double Wall Sewer Water Drainage Pipe Hose Tube Extrusion Production Making Manufacturing Machine

APPLICATION:

PE Single Wall Corrugated Pipe Extrusion Making Machine / Double Wall Corrugated (DWC) Pipe Machine

The Single Wall corrugated pipe line includes single screw extruder, extrusion mold, pipe corrugate calibration machine, double winder, etc.

The Double Wall Corrugated Pipe machine includes two set single screw extruders, DWC corrugated machine, cooling tank, cutting machine and stacker. The pipe is mainly used for sewer pipe water drainage.

If you need this machine, please tell us the pipe diameter you want to produce, we will make the right offer for you.

PE PIPE PRODUCTION SPECIFICATIONS:

Produce process for PE Pipe :

PE powder + additive →mixing →spring feeding →twin screw extruder →mould and calibrator → vacuum forming machine →haul off machine →cutting machine →stacker

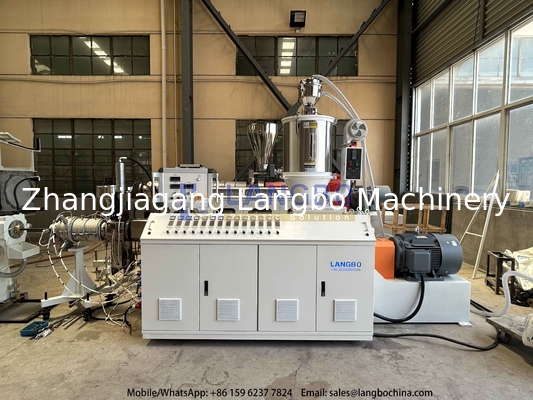

Single Screw Extruder Machine

Using the high efficient single screws, specially designed for PP,PE granule material to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

pipe extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.

Vacuum cooling tank and spraying cooling tanks:
Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.

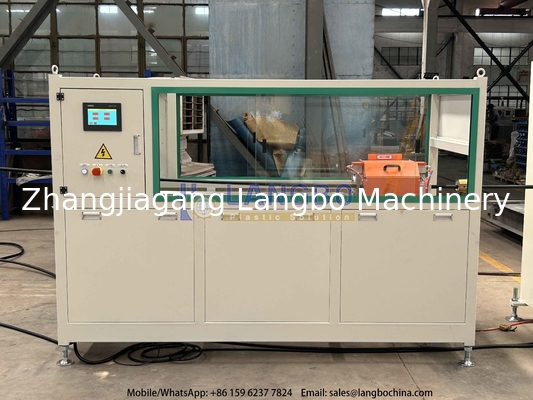

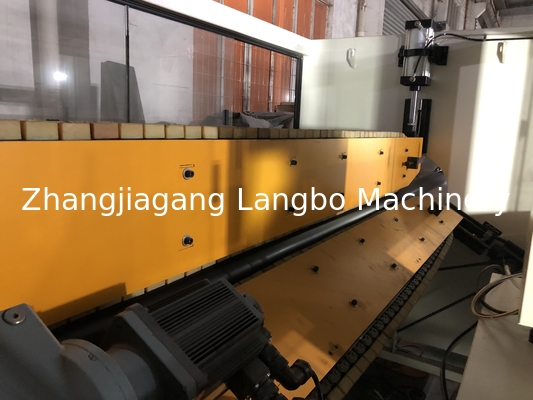

Haul off machine:
Adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

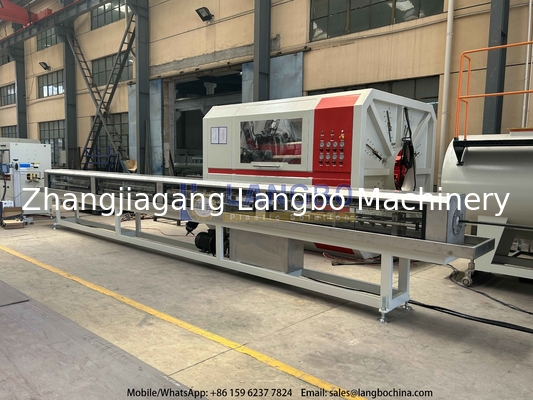

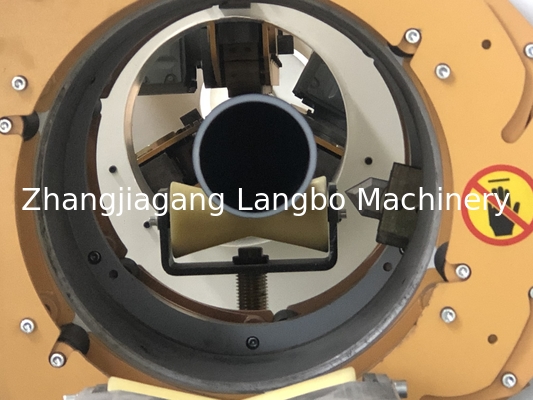

Cutting machine:
Precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

Pipe stacker or pipe coiler
Automatic pipe stacker for packing the pipes, pipe coiler for small PE pipes like 16-40, 16-75mm, 50-110mm.

Features of Pipe Machiner:

2- Adopting special screw and barrel, good effect
3- Adopting compound spiral engine head, effectively eliminate memory function of the material
4- Easy operate and need less worker
5- Convenient for maintaining

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
