Plastic Extruder PE Tube Making Machine

Plastic Extruder PE Tube Making Machine

APPLICATION:

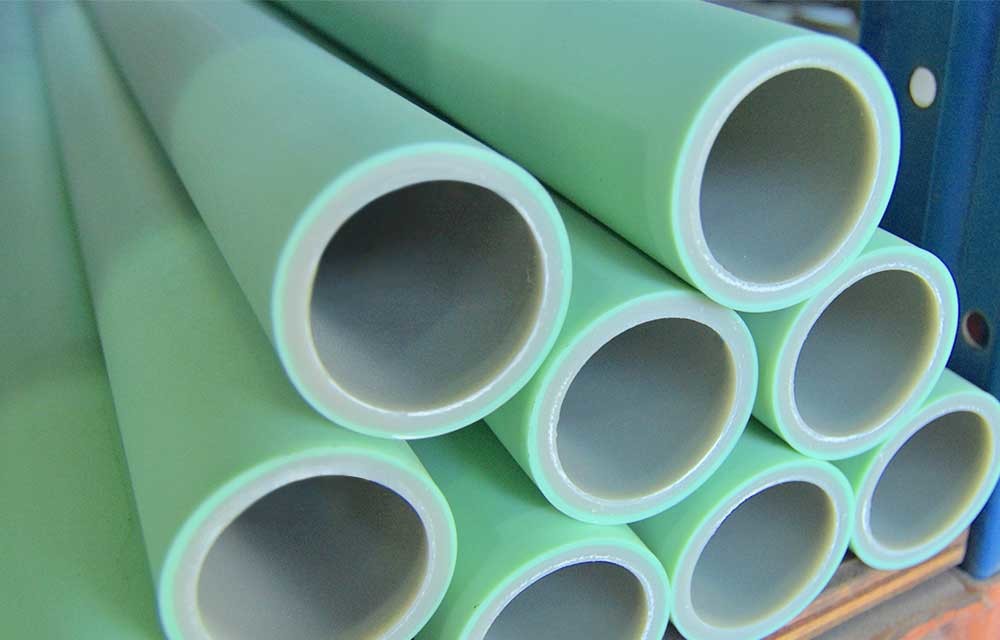

This PE Pipe Extrusion Line can be used in PE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on.
So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb.
PE pipes start to play very important role in the city water and gas supply systems.

PE PIPE PRODUCTION SPECIFICATIONS:

Produce process for PE Pipe :

Material →Color Mixer →Automatic Feeder→Hopper Dryer →Single Screw Extruder →Extrusion Mould & Calibrator → Vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →Cutter

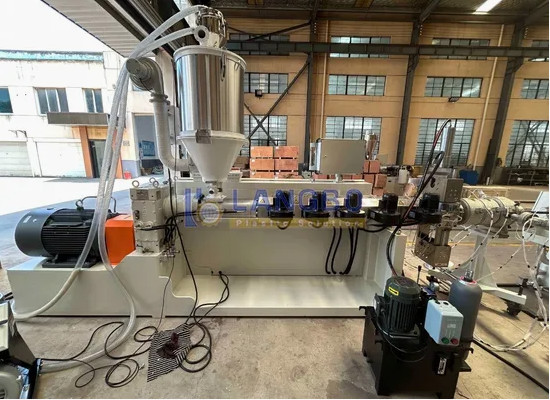

Single Screw Extruder Machine

Using the high efficient single screws, specially designed for PP,PE granule material to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

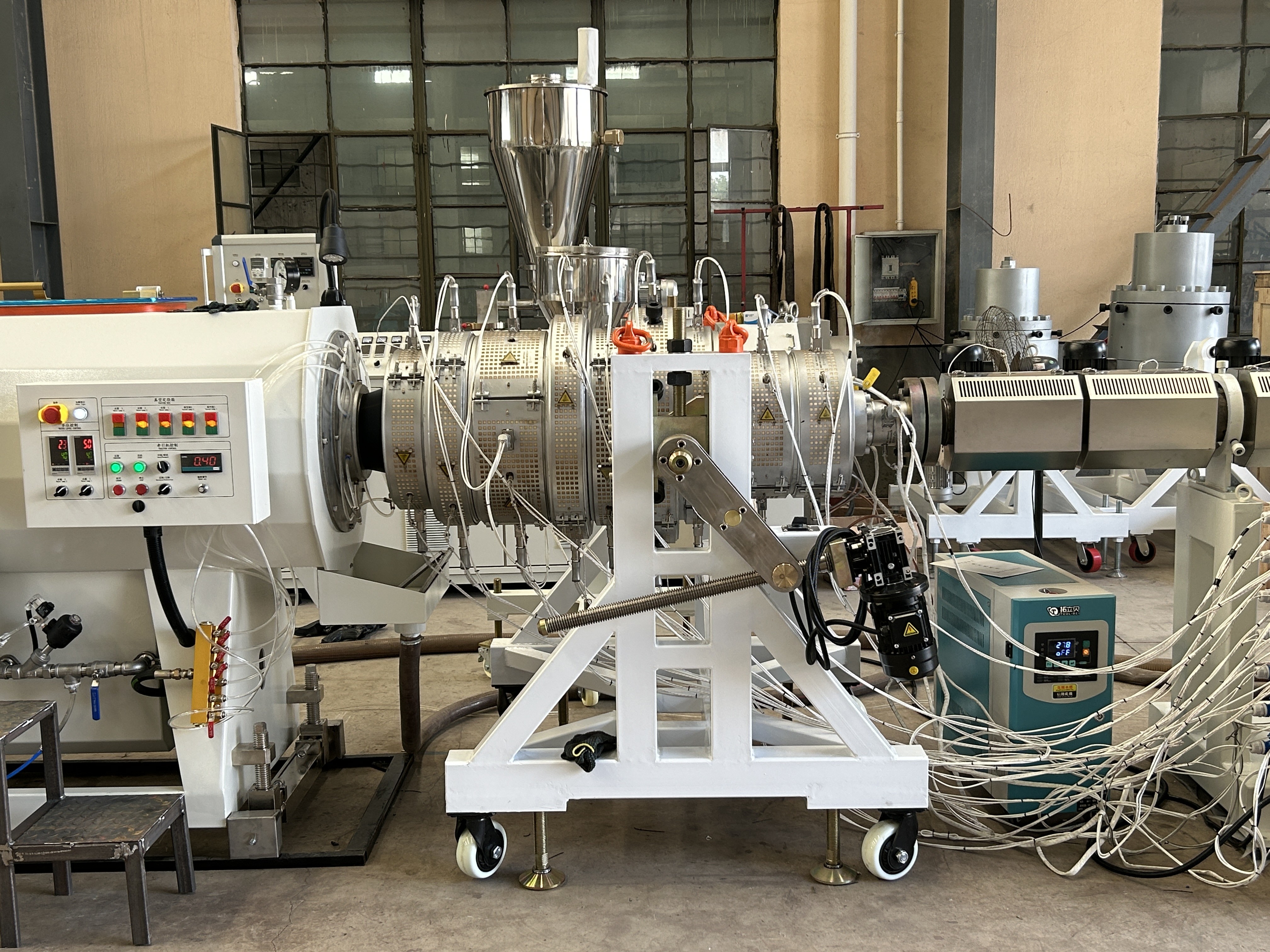

pipe extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.

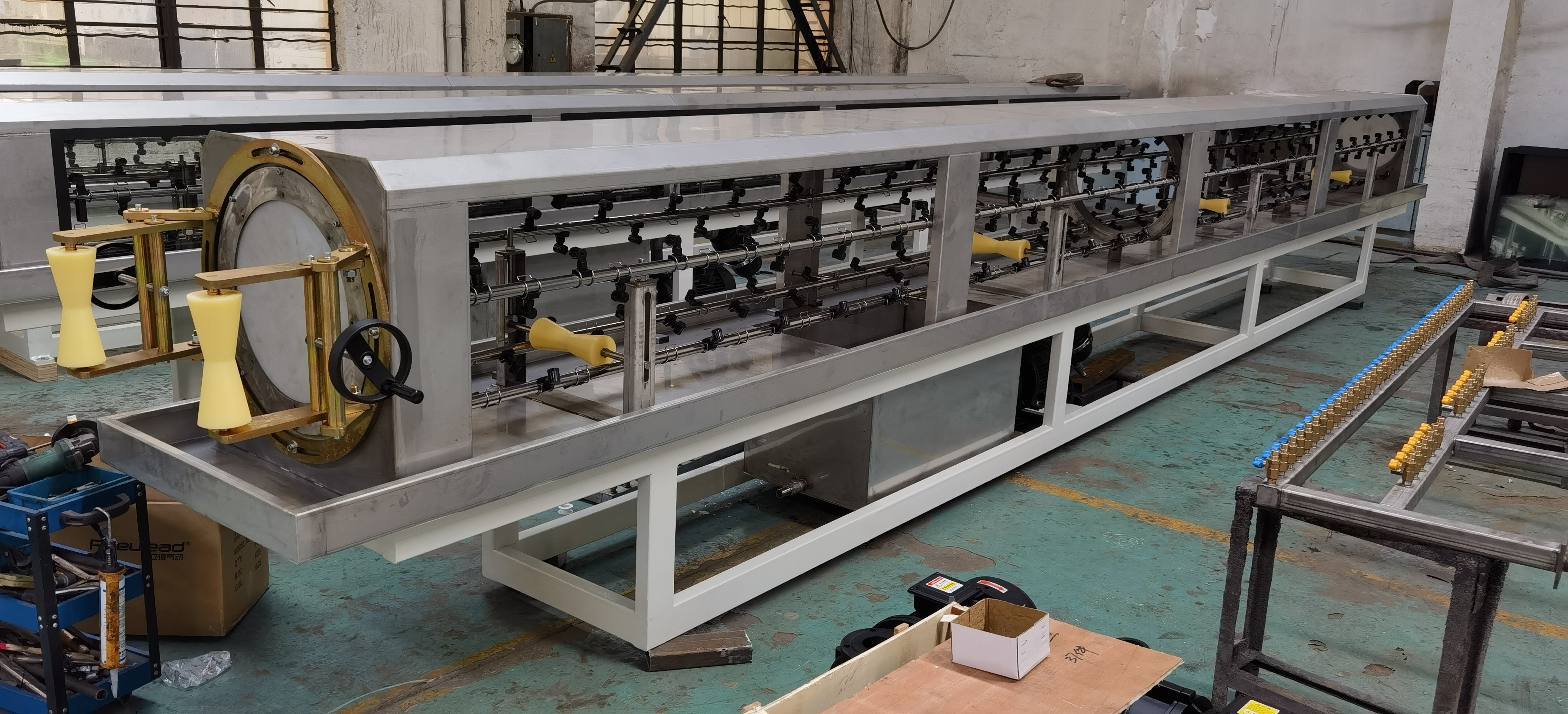

Vacuum cooling tank and spraying cooling tanks:
Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.

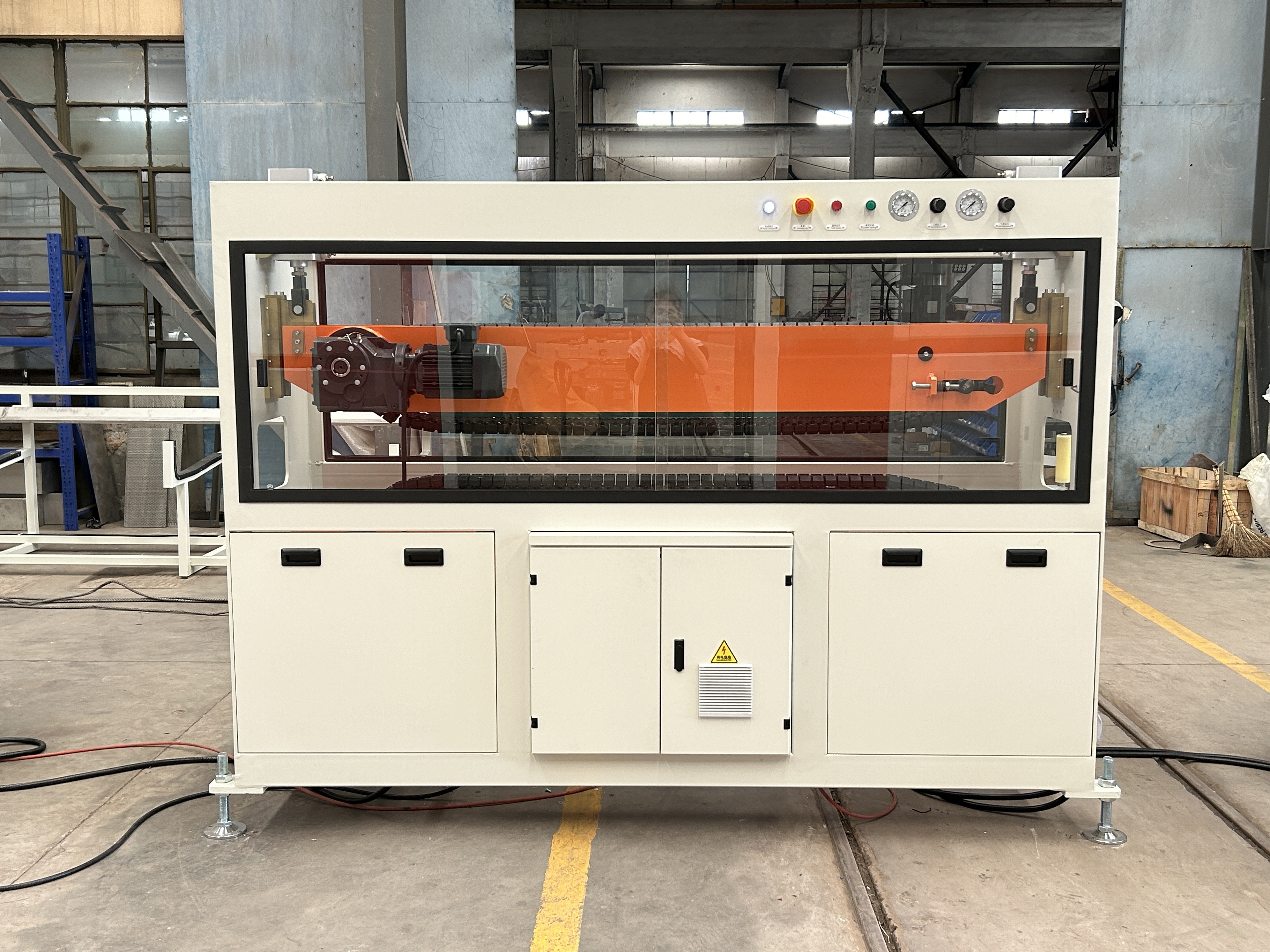

Haul off machine:
Adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

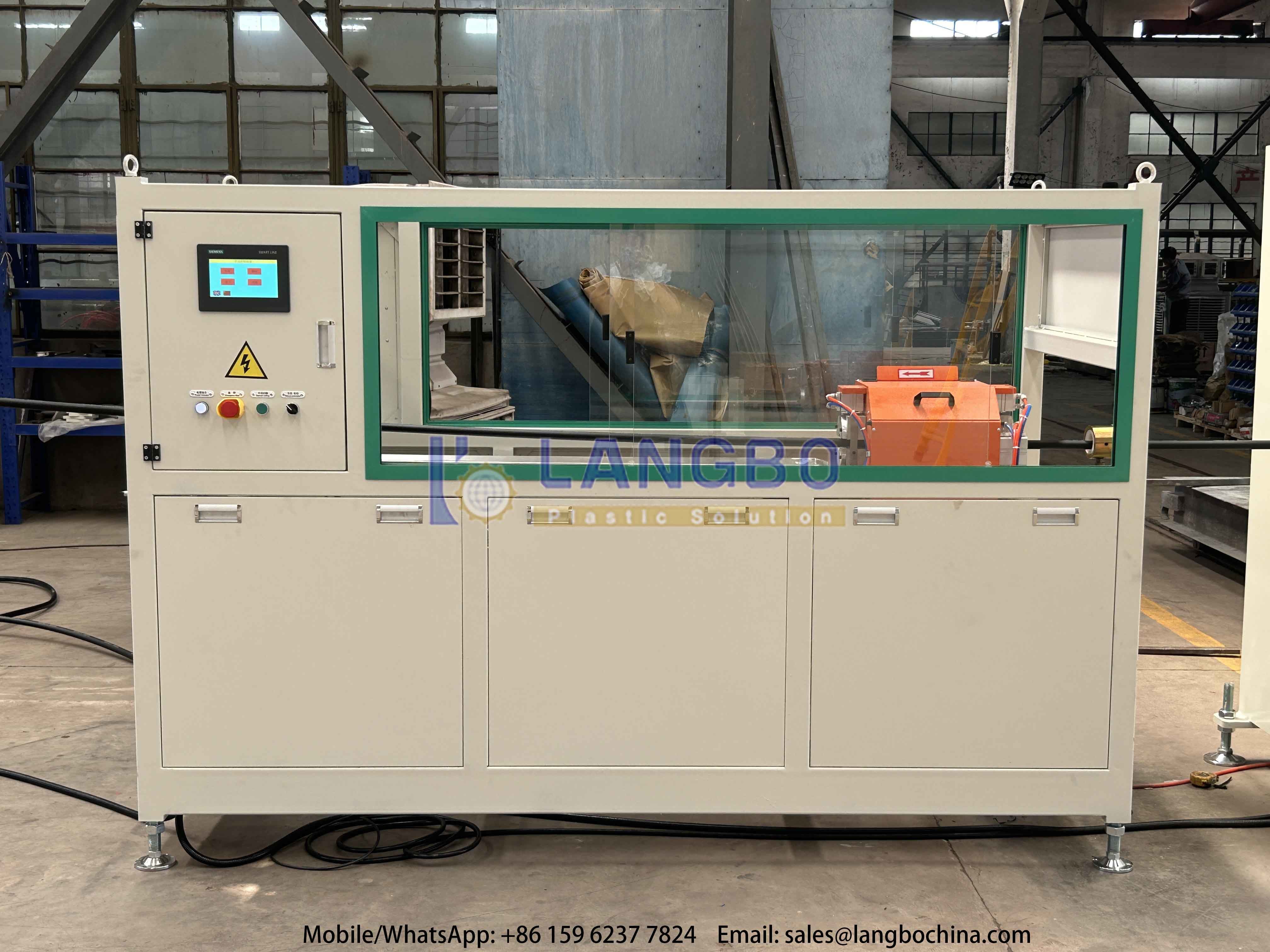

Cutting machine:
Precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

Pipe stacker or pipe coiler
Automatic pipe stacker for packing the pipes, pipe coiler for small PE pipes like 16-40, 16-75mm, 50-110mm.

Features of Pipe Machiner:
Composite extrusion die head with specially helical structure to make the wall thickness unifom and stable production

Dual cutting blades remove weakened pipe for better joint sealing .

Precise trigger device ensures continuously precision cutting.

Dual hydraulic system ensures smooth operation
