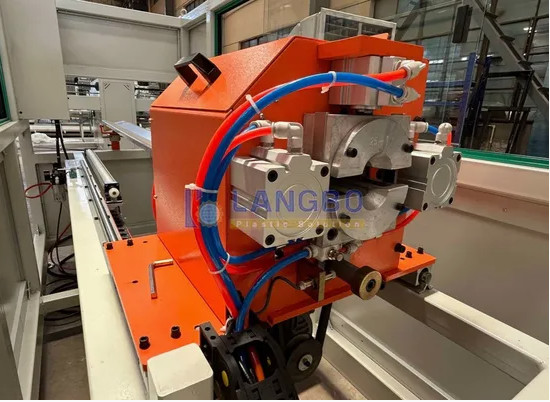

PE Carbon Piral Reinforcing Pipe Production Making Machine

PE Carbon Piral Reinforcing Pipe Production Making Machine

APPLICATION:

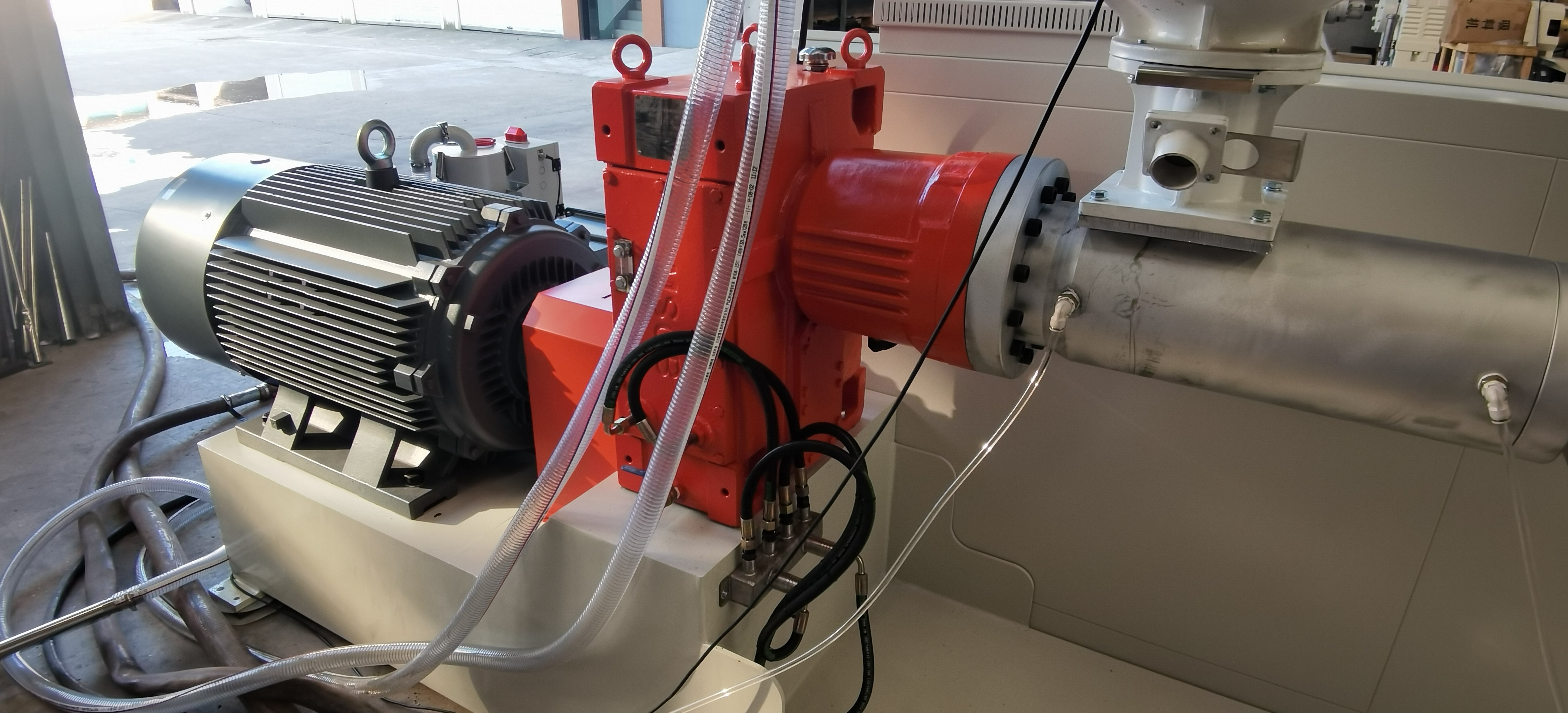

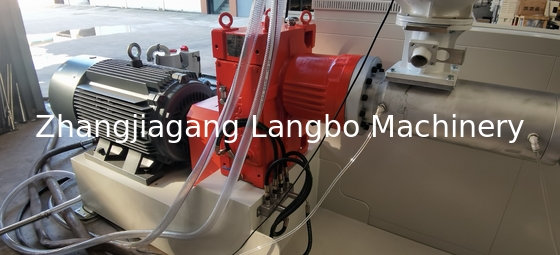

Special single screw extruder for polyolefine materials.High speed extrusion and effective plasticization. The special detachment type mixing screw and the standard designed die with spiral structure&reasonable channel are applicabe to produce the pipe with smooth inside and outside wall. Unique sizing and cooling mode is capable of producing pipe scope 50-200mm,and the production speed is up to 0.6-1.5m/min.

PE PIPE PRODUCTION SPECIFICATIONS:

WHAT’S INCLUDED IN A PE PIPE PRODUCTION LINE?

PE pipe production line comes with all the necessary machinery you need to start manufacturing high quality PE pipe. From the single screw extruders comprised of quality components to a high speed servo powered puller machines we offer you everything you need to become a successful pipe manufacturer.

Material Preparation

PE (Polyethylene) & Carbon Fiber Mixing: High-density polyethylene (HDPE) and carbon fiber materials are prepared and mixed to enhance strength and durability.

Extrusion Process

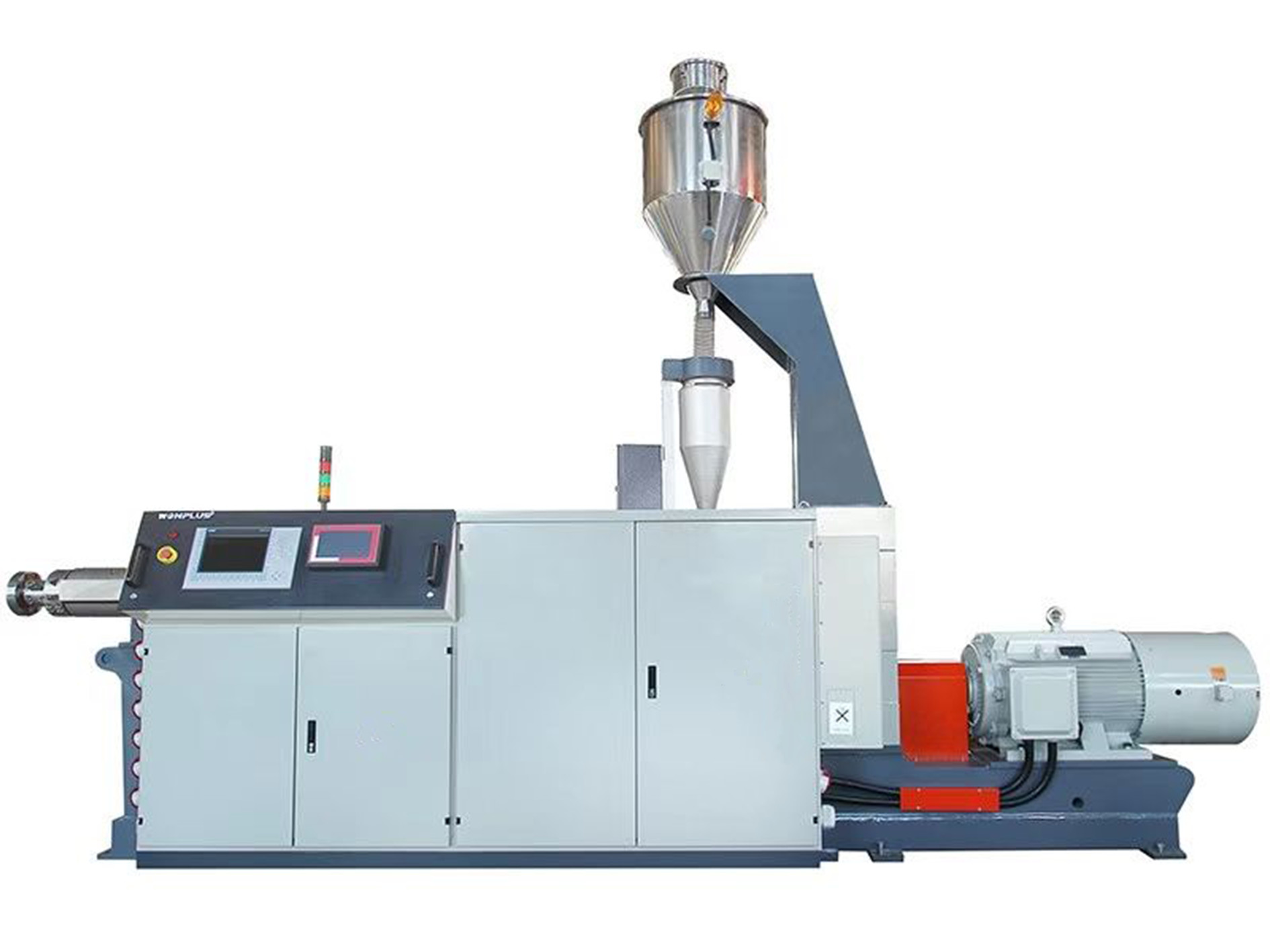

Single/Dual Screw Extrusion: The PE-carbon composite is melted and extruded through a screw extruder to form a continuous pipe profile.

Spiral Winding & Reinforcement

Helical Winding Mechanism: The extruded pipe is wound in a spiral pattern using a rotating mandrel or winding machine to enhance rigidity.

Cutting & Length Adjustment

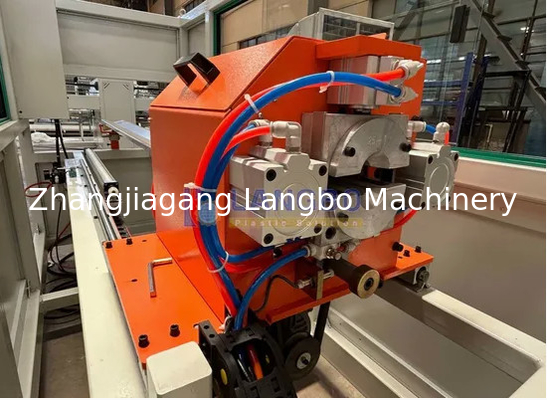

Automatic Cutting: A servo-driven cutter trims the pipe to specified lengths.

Inspection & Quality Control

Dimensional Checks: Laser sensors measure diameter, thickness, and roundness.

Optional

Extrusion Die Heads

An extrusion die head can be added to your existing extruder machine to produce 3 layer pipe with a recycled core, allowing you to save money on raw materials. DRTS always keeps at the forefront of pipe production introducing new technologies that are geared towards our customers benefit. Our technology for the production of 3 layer PE pipe has been a great success among our clients. All DRTS machinery can be also supplied and purchased as a standalone unit providing you with the ability to upgrade machines in your existing production lines.

Advantages

Automated Control: PLC system for precision in extrusion, winding, and cutting.

Energy-Efficient: Optimized heating and cooling systems reduce power consumption.

Customizable: Adjustable for different pipe diameters (e.g., 100mm–3000mm) and reinforcement levels.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
