Plastic Soft PVC Garden Fiber Braided Reinforced Corrugated Pipe Extrusion Machine
This specialized extrusion machine is designed for producing PVC fiber reinforced hoses, also known as PVC net hoses or snake hoses. The finished products are soft, non-toxic, transparent, and offer excellent pressure resistance, tensile strength, and corrosion resistance. Ideal for transporting pressure corrosive gases and liquids, lawn and garden watering applications, and widely used in chemical, agricultural, and construction industries.
Key Applications
- PVC fiber reinforced hose production
- HDPE silicon core pipe manufacturing
- PP-R, PE, and PEX pipes production
- Chemical, agricultural, and construction applications
Machine Components
Complete production line includes main extruders, water cooling tank, haul off machine, fiber braiding machine, coiler, and auxiliary equipment.
Production Process
PVC powder + additive → mixing → material feeder → twin screw extruder → mould and calibrator → vacuum and cooling tank → spraying cooling machine → haul-off machine → cutting machine → discharge rack or pipe belling machine.
Technical Specifications
| MODEL |
PIPE DIAMETER (MM) |
EXTRUDER MODEL |
MOTOR POWER (KW) |
| LB-32F |
16-32 (FOUR PIPE) |
SJSZ65/132 |
37 AC |
| LB-32E |
16-32 (DOUBLE PIPE) |
SJSZ51/105 |
22 AC |
| LB-32W |
16-32 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
| LB-40E |
16-40 (DOUBLE PIPE) |
SJSZ51/105 |
22 AC |
| LB-40W |
16-40 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
| LB-50E |
16-50 (DOUBLE PIPE) |
SJSZ51/105 |
22 AC |
| LB-50W |
16-50 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
| LB-63W |
16-63 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
Technical Features
- Double screw extruder with high screw speed and plasticizing capacity
- Vacuum spray tank with stainless steel water contact parts
- Two claw-type or rubber belt crawler tractor for different pipe requirements
- No dust rotating knife cutting system
- Automatic turn plate or roller-type stacking devices
- PLC automatic control system for stable production and easy operation
Delivery & Service Information
Delivery: 30 days after order confirmation
Warranty: 12 months comprehensive coverage
Payment: T/T 30% in advance, T/T 70% before delivery
Packing: Standard export wooden case
Our Service Commitment
- One year guarantee for entire machine
- 24 hours technical support
- Overseas installation & commissioning services
- Comprehensive training for machine operators
- Competitively priced spare parts

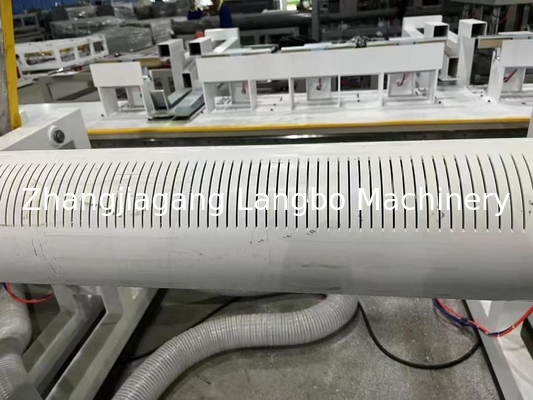

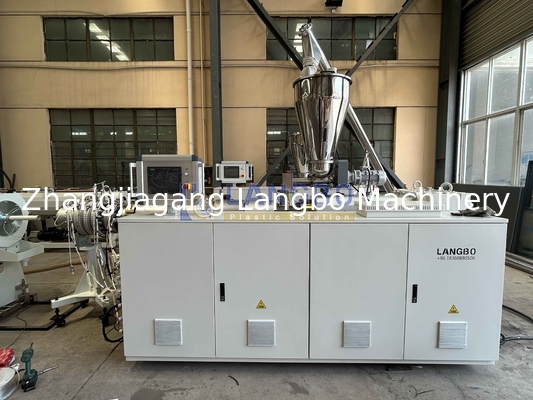

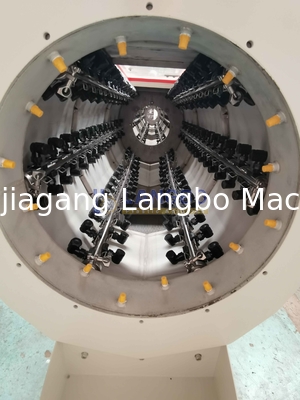

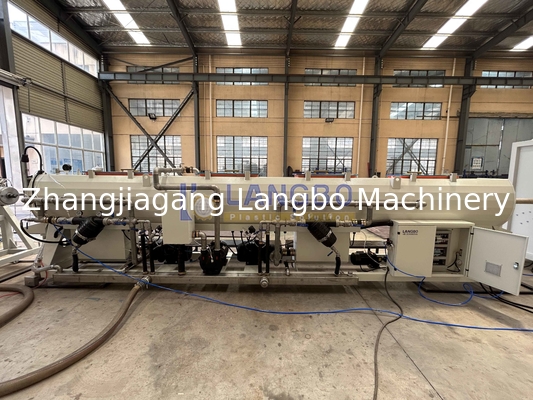

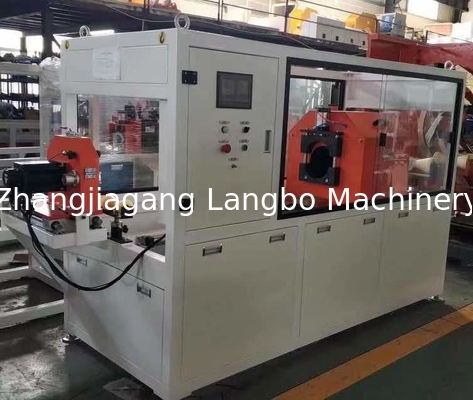

Product Images
Frequently Asked Questions
Are you a trading company or factory? Can I visit your facility?
We are a direct manufacturer located in Zhangjiagang, Jiangsu Province, close to Shanghai and Wuxi. Factory visits are welcome and pick-up service is available for nearby visitors.
How to build trust with Langbo?
We provide working videos from installations in various countries and offer customer-focused technical suggestions. Factory visits allow direct assessment of our plastic extrusion expertise.
Is shipping cost included in the quotation?
Quotations typically include FOB Shanghai terms. We assist customers with current shipping prices and can include shipping costs upon request.
What happens after order confirmation?
- Configuration confirmation
- Proforma invoice signing
- 30% prepayment for production start
- Test running with customer participation
- 70% payment before delivery
- Shipping and on-site commissioning
- Operator training and handover
Payment Methods
T/T, D/P, Letter of Credit, Cash transaction
Quality Guarantee
We provide one-year warranty and lifetime technical support. Customers can inspect machines during test running, and any optimization requirements are addressed immediately.
Do you have CE Certification?
Yes, both our extrusion machines and plastic recycling machines are CE certified.
Delivery Time
Typically 45 days from order confirmation, with exact timing specified in the contract.
After-Sales Services
One-year quality guarantee, quick technical support response, and production problem analysis.
