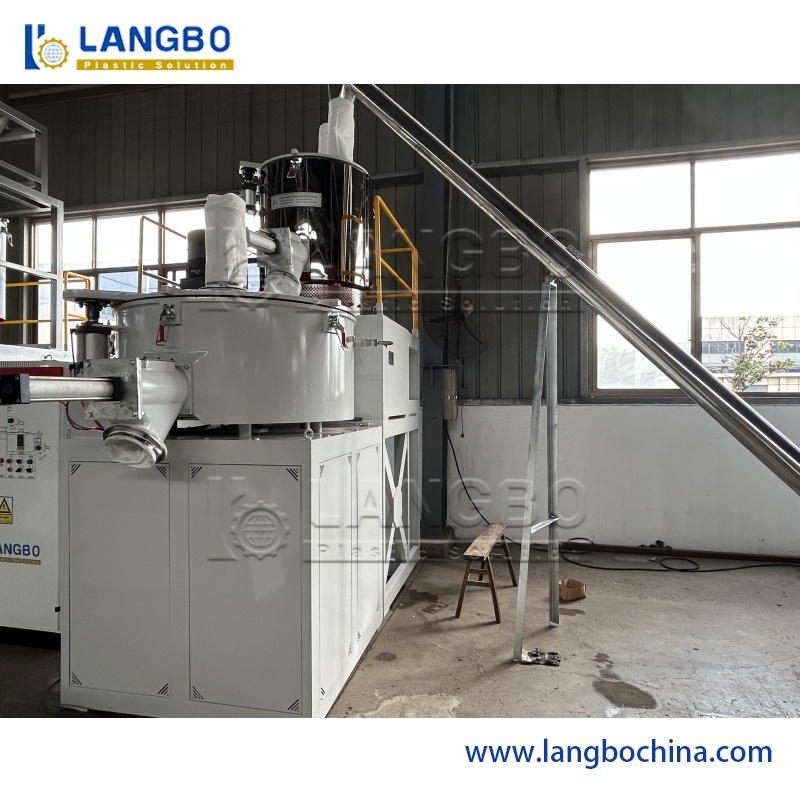

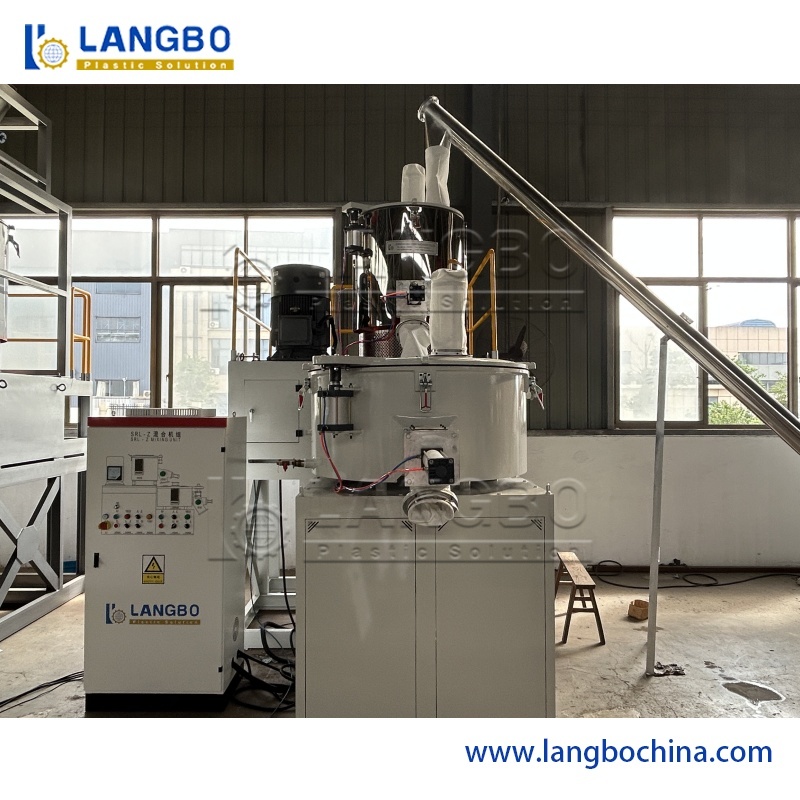

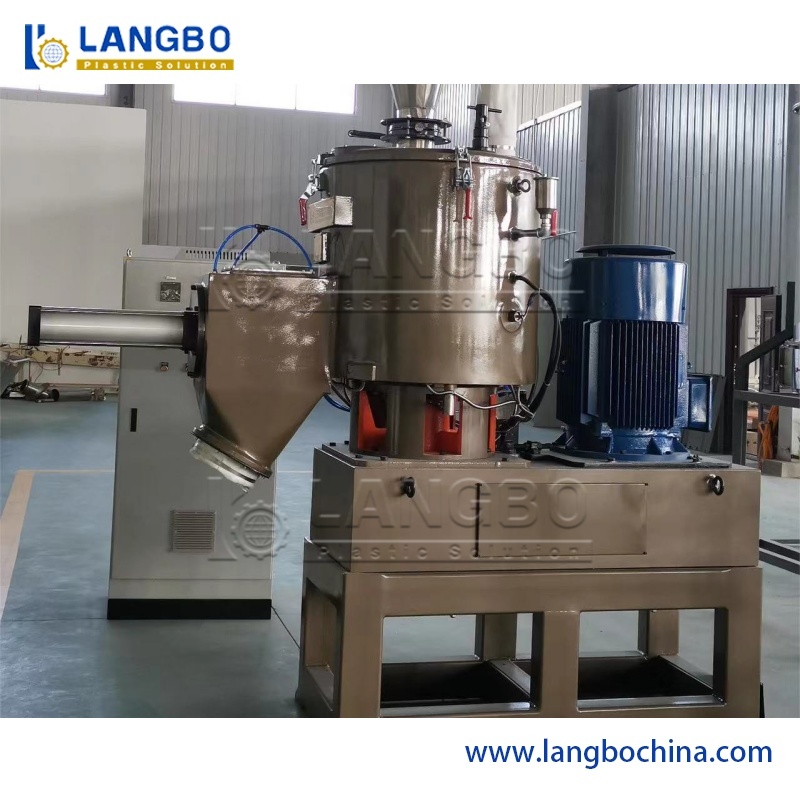

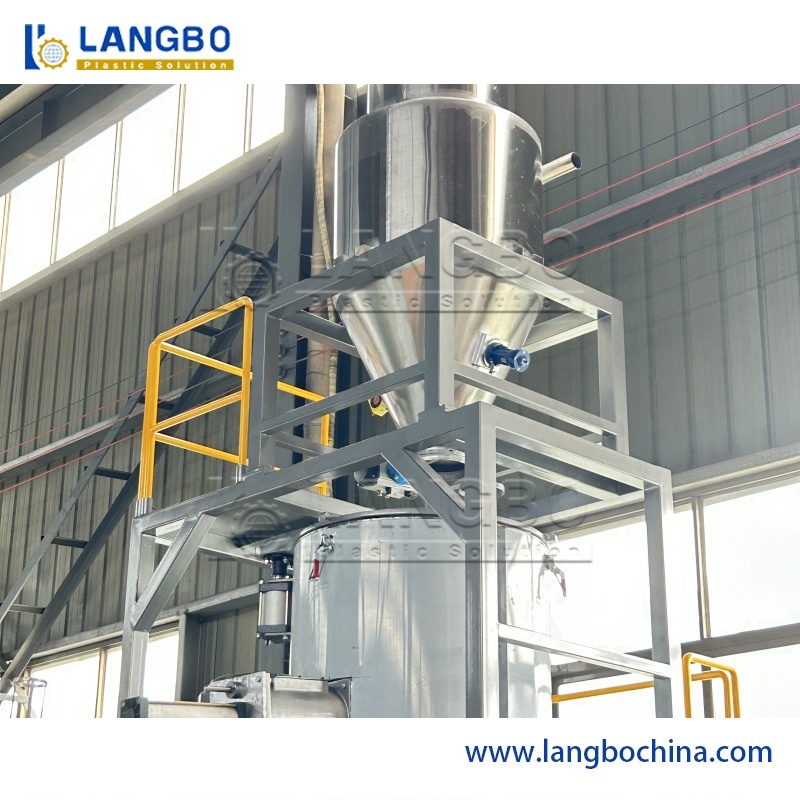

Hot Cold High Speed Turbo Mixer
Product Details
| CONTROL: | AUTOMATIC | MIXER: | VERTICAL/HORIZONTAL COMBINATION |
|---|---|---|---|
| NOTOR POWER: | 83/110/22KW | FEEDING: | AUTO-PNEUMATIC |
| Model Number: | SRL-Z | Power(W): | 18.5-75kw |
| Warranty: | 2 YEARS | Shipping: | By Sea |
| Highlight |
PVC powder resin mixer,high speed turbo mixer machine,plastic WPC PVC mixer |
||
Product Description
- All important parts manufactured in-house ensuring quality control
- Product contact surfaces made of SUS304 or aluminum alloy to prevent contamination
- High cooling efficiency with short mixing times
- Easy to clean design with high output capacity
- Customizable mixing tools for different applications
- Wear-resistant coating on mixing tools extends service life
- Comprehensive after-sales service support
- Stainless steel blades with dynamic and static balance refining
- Double sealing cap with pneumatic start for easy operation
- Stainless steel cylinder with 8mm wall thickness
- Temperature or time controlled discharge system
- ABB inverter for motor start and speed regulation
- Direct & stable control type with analog display screen
- Automated manufacturing procedure reduces labor intensity
| Model | Total Capacity (L) | Mixing Capacity (kg/h) | Motor Power (kw) | Paddle Speed (r/min) |
|---|---|---|---|---|
| SRL-Z100/200 | 100/200 | 165 | 14/22/7.5 | 650/130/180 |
| SRL-Z200/500 | 200/500 | 325 | 30/42/11 | 475/950/130 |
| SRL-Z300/600 | 300/600 | 500 | 40/50/15 | 475/950/130 |
| SRL-Z500/1000 | 500/1000 | 750 | 47/67/15 | 430/860/60 |
| SRL-Z800/1600 | 800/1600 | 1400 | 60/90/18.5 | 370/740/50 |
| SRL-Z800/2500 | 800/2500 | 1400 | 80/110/30 | 370/740/50 |
| SRL-Z1000/3000 | 1000/3000 | 1900 | 110/160/37 | 325/650/50 |
| SRL-Z1300/4500 | 1300/4500 | 2500 | 132/200/45 | 250/500/50 |
Warranty: 12 months
Payment: T/T 30% in advance, T/T 70% before delivery
Packing: Standard export wooden case
• One year guarantee for whole machine
• 24 hours technical support
• Overseas installation & commissioning by our engineers
• Maintenance guidance and spare parts provision
• Comprehensive operator training services
Product Highlights
Hot Cold High Speed Turbo Mixer Plastic High Speed Heating Cooling WPC PVC Powder Resin Turbo Mixer Machine for PVC pipe, window door profiles, ceiling panel, cable trunking, marble sheet. Suitable for plastics, rubber, chemical and food industry, for power or granulate material blending, coloring ...
