PVC Skirting Board with hollow and solid structures for residential interiors

1 SET
MOQ
Negotiable(USD,EUR)
Price
PVC Skirting Board with hollow and solid structures for residential interiors
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Mats Materials: PVC
Plastic Processed: Polystyrene
Width: 200-600mm
Product: Banner Sign Holder Extrusion Machine
Machine Length: 20m
Screw: Conical Twin Screw
Line Speed: 2-5 M/min
Installation Size: 18X2.4X3.5m
Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE,ISO
Model Number: LB-1240
Payment & Shipping Terms
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Product Description

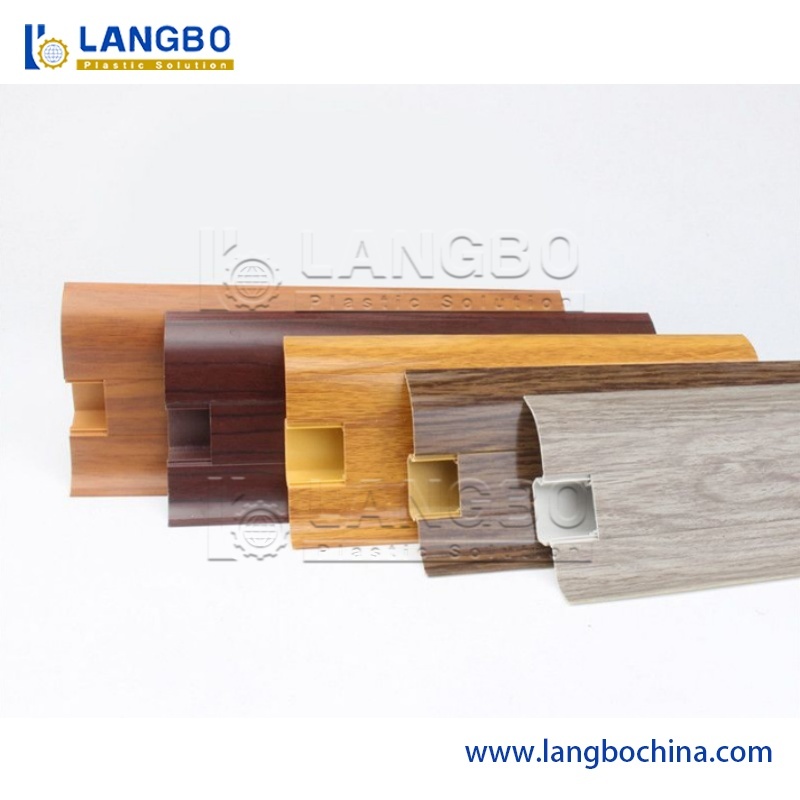

PVC Skirting Board with Hollow and Solid Structures for Residential Interiors
Our window and door profile production line is widely used in the decoration industry. With detailed section drawings of window and door profiles, we create tailored solutions and custom molds to meet specific requirements.
Processing Process
  • PVC powder + additive → mixing
  • Material feeder → conical twin screw extruder
  • Mold and calibrator → vacuum forming table
  • Haul-off machine → cutting machine → stacker
This window and door profile extrusion line features a conical twin screw extruder suitable for both PVC powder and PVC granules. The integrated degassing system ensures excellent material plasticization, while high-speed molds significantly increase productivity.
Technical Specifications
Model LB180 LB240 LB300 LB600
Max width of products (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total length (m) 18m 22m 22m 25m
Product Components

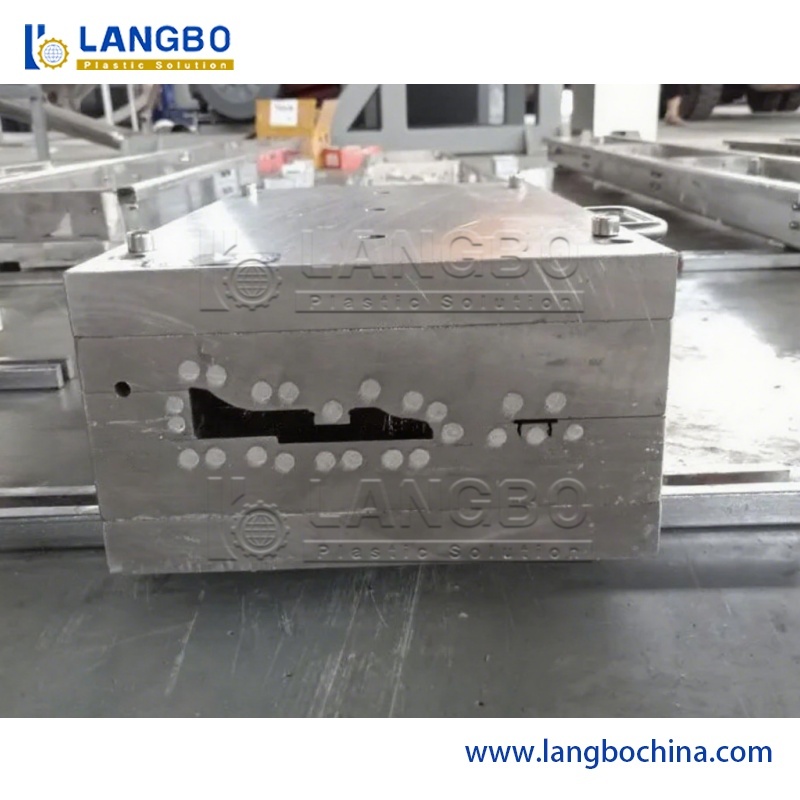

Mold for Window and Door Profile
Optimized channel design ensures high flow performance. Each mold undergoes rigorous inspection by experienced engineers to guarantee precision and stable operation.

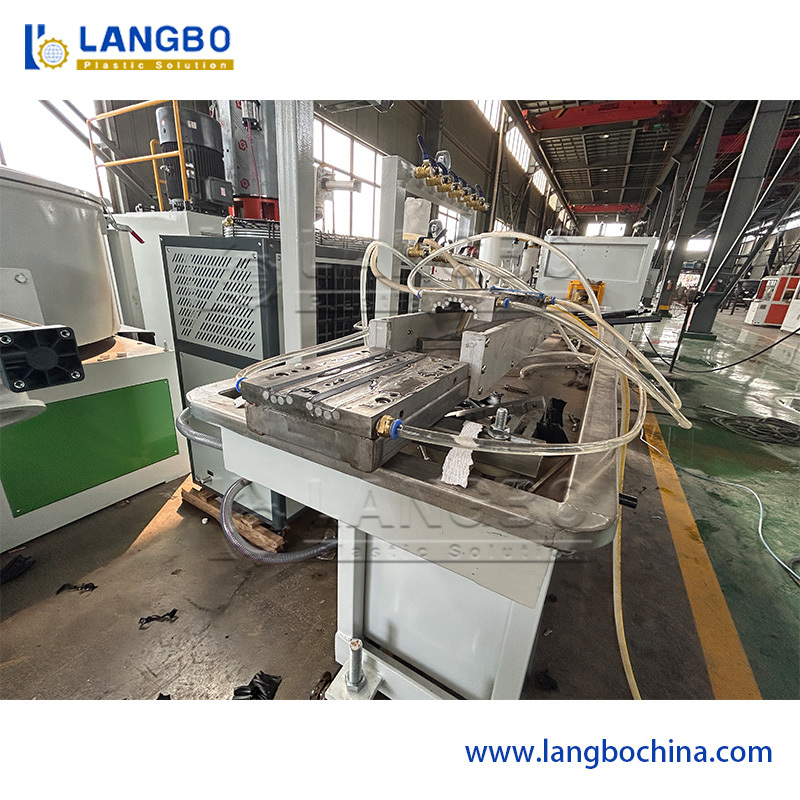

Calibration Table
Equipped with advanced water circuit and vacuum systems, the special layout enables rapid shaping and cooling to produce excellent window and door profiles. The stable steel frame and high-quality SUS 304 stainless steel construction ensure long machine lifetime. Multiple water separators are available.

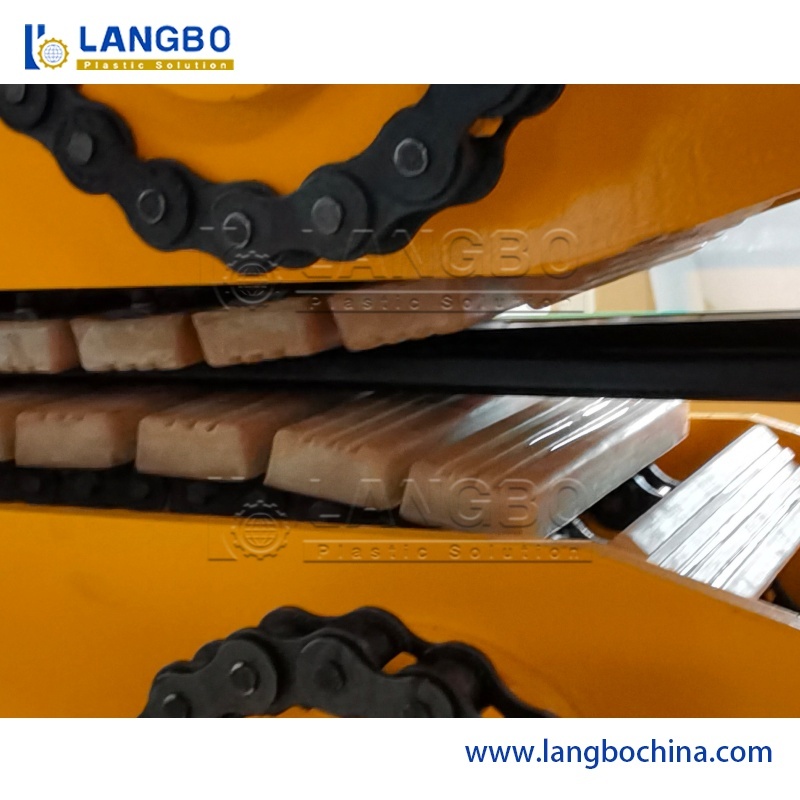

Haul-off and Cutting Unit
Each crawler track is independently motor-driven, providing sufficient hauling force with even distribution along the tracks. Highly synchronized hauling speed and force ensure consistent product quality. Direct cutting technology is applied for optimal performance.
Stacker
The automatic stacker securely holds produced window and door profiles. It operates with periodic flipping action to efficiently pull profiles down for collection.
PVC Skirting Board with hollow and solid structures for residential interiors 0 PVC Skirting Board with hollow and solid structures for residential interiors 1 PVC Skirting Board with hollow and solid structures for residential interiors 2 PVC Skirting Board with hollow and solid structures for residential interiors 3
Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

R
Robert Walker
United States Nov 5.2025
Helpful (8)
Dimensional accuracy is excellent, even for complex shapes. The machine is easy to operate and maintenance-friendly. We are satisfied with both quality and supplier service.
