37KW Input Plastic Profile Extrusion Machine , WPC Twin Screw Extruder Machine

37KW Input Plastic Profile Extrusion Machine , WPC Twin Screw Extruder Machine
37KW Input Plastic Profile Extrusion Machine , WPC Twin Screw Extruder Machine 37KW Input Plastic Profile Extrusion Machine , WPC Twin Screw Extruder Machine 37KW Input Plastic Profile Extrusion Machine , WPC Twin Screw Extruder Machine 37KW Input Plastic Profile Extrusion Machine , WPC Twin Screw Extruder Machine

Large Image :  37KW Input Plastic Profile Extrusion Machine , WPC Twin Screw Extruder Machine

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE,ISO
Model Number: LB-240
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD,EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH

37KW Input Plastic Profile Extrusion Machine , WPC Twin Screw Extruder Machine

Description
EXTRUDER MODEL: CONICAL TWIN SCREW EXTRUDER PROFILE'S SIZE: 240MM
MOTOR POWER: 37KW RAW MATERIAL: WPC
HAUL-OFFS: CATERPILLAR CUTTER: SAW CUTTER
High Light:

wpc profile machine

,

plastic profile extrusion machine

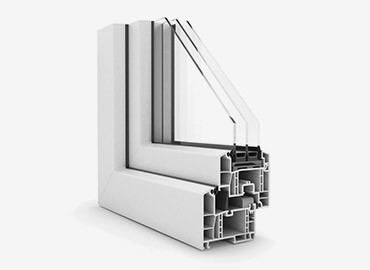

WPC WINDOW & DOOR PROFILE COMPLETE EXTRUSION MACHINE WITH PLC CONTROL

Conical Twin Screw Extruder is designed for the PVC profile application. We target to provide the optimal solutions for the customer’s special needs with the advantage of flexibility in material choices, high performance and long durability.
Features
High flexibility in raw material combinations
Gentle and homogeneous plastification
Barrel with air cooling system
AC motors for low energy consumption
Control panel with color touch screen
Product Range
Screw diameters 51,65,80mm

We offer a wide range of calibration tables, providing an optimal and tailor-made solution for every need and application.
Features
Motor-driven height and side movement
Motor-driven longitudinal movement
Manuel tilting movement
All parts that are in contact with water is made of SUS304
Low maintenance cost
Product Range
Table length from 4,5 to 14 mt
Vacuum pumps can be added upon request
FeaturesFocusing on the energy saving system, Lima Extrusion provides LESS (Lima Energy Saving System) to benefit vacuum energy savings up to 80%.
Vacuum energy savings up to 80%
Vacuum pumps are driven by individual frequency
Inverters in order to use them according to the real need
Low noise level
Closed circuit to save as much water as possible during the extrusion process
Product Range
Table length from 4,5 to 14 mt
Vacuum pumps can be added upon request

The caterpillar haul-off units, we provide the optimal solutions for the customer’s needs with the advantage of flexibility in pad dimensions and track lengths. Our haul-offs are equipped with two independent tracks with gearboxes with continuous speed adjustment by inverter.
Features
Flexibility in pad dimensions
Two independent tracks with gearboxes
Speed adjustment by inverter
Product Range
Pad width range from 220 to 500 mm
Tracks length from 1400 to 2000 mm

Extrusion offers two types of cutting units for profile applications: Saw (TK-series) and guillotine (GK PRO) cutting systems. Depending on the customer’s preference, we can install these units in our integrated haul-off and cutting combination or supply separately. As option, for window sill and similar wide panel profiles, we also supply cross-cut system (CC PRO) for cutting profiles into smaller measurements in width. In addition to these units, our blade cutting unit (BK-series) is ideal for cutting profiles with a max. height of 8 mm, without any dust and chips.

Saw Cutter
Features
Different saw dimensions for special profiles
Low maintenance cost

Includes dust absorber unit
Adjustable cutting speed
Cutting width from up to 800 mmProduct Range
Cutting height from 10 to 100 mm

Titling Table Features
Table material is stainless steel
Tilting system is pneumatic
Product Range
Length is 6 mt on standard
Length can be modified upon request
Depending on profile geometry, we can also offer roller-type tables

The complete extrusion consists of following items:

  • Conical Twin Screw Extruder:

It is used for melting and stirring plastic material. LANGBO adapts special screw and barrel type that provide perfect mixing and homogenous. We use special gear box for the Extruder which has axial bearings. Transfer the motor to the screw. For minimizing electricity consumption, we use the famous brand of driving motor of “SIEMENS” on our Extruder. Automation system designed with PLC and touch panel controller can be selected.

  • Mould:

Our mould designing gives ideal viscosity to melt material for profile producing. It gives profile or shape to plastic after processing. All faces the plastic in contact with is polish, so that frication losses minimized.

  • Calibration Table:

The shaped profile that come from mould is subjected to calibration and cooling processing on the calibration table. The designing of calibration table varies according to the type and characteristic of the profile. The area that contacts with water is made of stainless steel in order to prevent corrosion.

  • Caterpillar Haul-off:

The designing of caterpillar haul-off changes depending on the contact area that is related to the profile measurement. The inverter control is standard on all caterpillar haul-off. For this reason, as the speed can adjusted with respect to material output rate. The caterpillar haul-off is also capable of making measurement adjustment through speed control equipment.

  • Saw cutter:

In the speedy working condition, profile saw works with high efficiency in term of cutting frequency. As the saw table and clamps move synchronously. The saw cuts the profile in required length.

During the cutting processing, swarf and dust appears, in order to prevent these in production area, there is a dust collection unit is integrated in saw cutter. This unit absorbs swarf, dust effectively and removes to storage.



  • Tip-off unit:  It operates on pneumatic cylinder.

 SPECIFICATIONS:


MODEL PROFILE SIZE (mm) EXTRUDER MODEL MOTOR POWER(kw)
LB-108 108 SJZ51/105 18.5AC
LB-180 180 SJZ55/110 22 AC
LB-300 300 SJZ65/132 37 AC
LB-600 600 SJZ80/156 55 AC
LB-800 800 SJZ80/156 55 AC
LB-1240 1240 SJZ92/188

110 D
