Soft / Hard PVC Profile Extrusion Line 380v 50hz Input Long Life Span
Product Details
| EXTRUDER MODEL: | Double-screw | Power(W): | 55kw |
|---|---|---|---|
| Voltage: | 380v,3p,50hz | RAW MATERIAL: | PVC |
| Product Type: | Wpc And Plastic Profile | CAPACITY: | 250KG/H |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service | Automatic Grade: | Automatic |
| Warranty: | 12 Months After Installation In Local Place | Color: | Depand On Customers' Demand |
| Highlight |
pvc marble sheet production line,pvc ceiling panel extrusion machine |
||
Product Description
Soft / Hard PVC Profile Extrusion Line 380v 50hz Input Long Life Span
Plastic window&door profile extrusion line:
equipped with conical twin-screw extruder or parallel w/rwin-screw extruder.The production line has many advantages:material thawing even,lesser cut-speed,high output,longer life and etc.the production line including extruder,calibrator unit,haul-off unit,film-covering machine,stacking unit and etc.
PVC foaming plastic-wood profile&sheet extrusion line:equipped with special screw designed ,barrel,die-heas and advanced procesing.The profile is a new environmental product,mixed the plastic ,wood and appropriate auxiliary.It is widely used for product carrier,packaging box,frame of window&door,decorating board and other outdoors product.
Product Features:

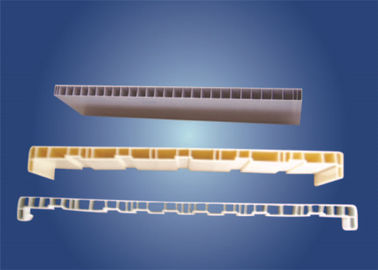

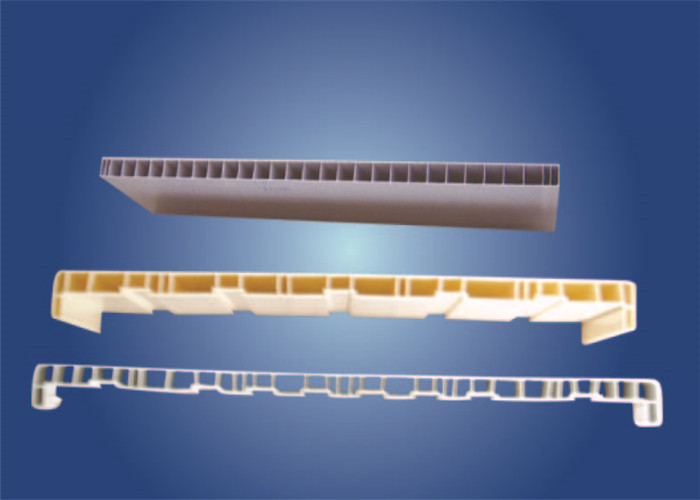

1, PVC profile extrusion line is mainly used in ceiling, integrated ceiling,luggage board,decorative wall panels, decorative lines,door&window profile,wide door board,window board and so on.
2, PVC as raw material production, with low production costs ,a light weight, easy installation, without any pollution,and long service life etc..
3.This PVC profile extrusion line can cover different patterns on the surface of PVC panel.
Model parameters:
| Model | Max. wide(mm) | Extruder | Max output(kg/h) | Power(kw) |
| LB180 | 180 | SJSZ51/105 | 120 | 18.7 |
| LB300 | 300 | SJSZ55/110 | 150 | 22 |
| LB600 | 600 | SJSZ65/132 | 250 | 37 |
| LB800 | 800 | SJSZ80/156 | 350 | 55 |
| LB1220 | 1220 | SJSZ92/188 | 600 | 110 |
Production line list:

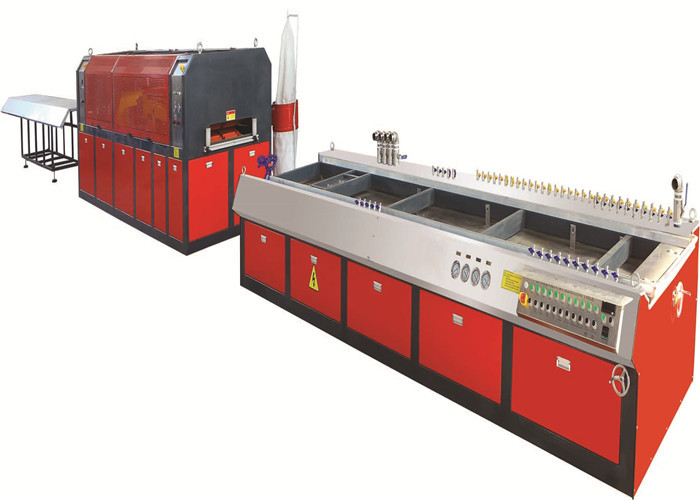

This plastic panel making machine is composed of conical twin-screw extruder,mould,vacuum calibration table, haul-off, cutter and stacker.
| No. | Machine Name | Quantity |
| 1 | Screw feeder | 1 set |
| 2 | SJSZ series conical twin screw extruder | 1 set |
| 3 | Profile Extrusion Mould | 1 set |
| 4 | Vacuum calibration table | 1 set |
| 5 | Laminating machine | 1 set |
| 6 | Haul-off machine | 1 set |
| 7 | Automatic cutting machine | 1 set |
| 8 | Stacker | 1 set |
| Optional Auxiliary machines | ||
| 1 | High speed mixing machine | 1 set |
| 2 | Crushing machine | 1 set |
| 3 | Milling machine | 1 set |
Production Process:
Raw material mixing→ Screw feeder → Extruder → Mould → Vacuum forming table→Laminating machine →Haul-off machine→ Cutting machine → Stacker
