75KW PVC Extruder Machine , 1220mmm Width PVC Foam Board Machine Manufacturer
Product Details
| Condition: | New | Plastic Processed: | PVC |
|---|---|---|---|
| Screw Design:: | Double-screw | Product Width: | 1220mmm |
| Power(W): | 75KW | Product Thickness: | 3-20mm |
| Highlight |
pvc foam board production line,pvc foam board machine |
||
Product Description

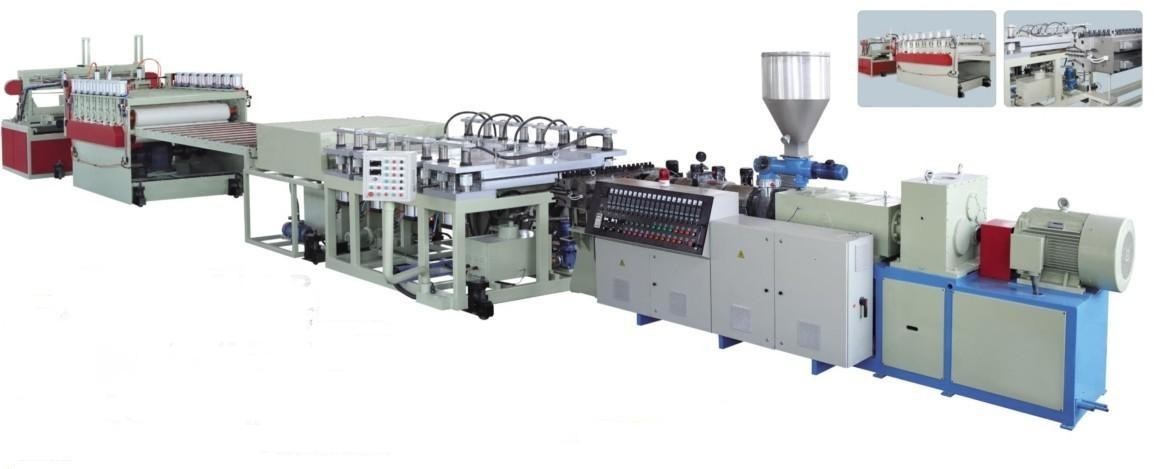

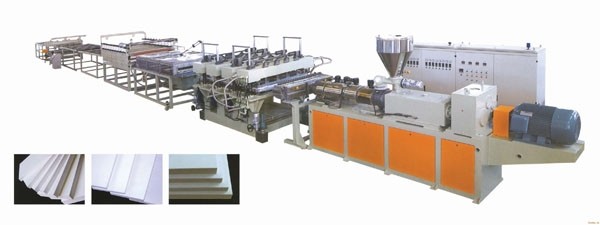

PVC skinning foamed board extrusion line／PVC crust foam board extrusion line
Equipment list
| No. | Name | Qty | Remarks |
| Host machine | |||
| 1 | SJSZ80/156 conical double screw extruder | 1set | Zhoushan |
| 2 | Board mould | 1unit | T-shaped |
| 3 | Mould temperature controller | 2set | |
| 4 | Cooling sizing platform | 1set | |
| 5 | 20P chiller | 1set | |
| 6 | Cooling bracket(including guide rail) | 1set | |
| 7 | Haul off | 1set | |
| 8 | Transverse cutter | 1set | With dust collector |
| 9 | Edge cutter | 1set | With dust collector |
| 10 | Conveying Stacker | 1set | |
| Auxiliary machine(optional) | |||
| 11 | SHR500/1000 mixer | 1set | |
| 12 | SWP380 crusher | 1set | |
| 13 | MF500miller | 1set | |
| 14 | Air compressor | 1set | |
Note:
1.The total installed capacity is 315kw
2.This machine could produce both furniture board and construction board.
3.Achieve different desinty of the foam board by adjusting the proportion of the formula
about product

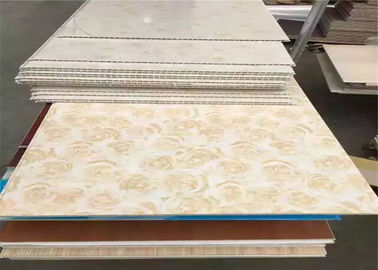

PVC and PVC wood composite crust foamed board( building board, WPC plate) extrusion line, is our company new product according to the market need, it could reduce the cost, recycling the material and reduce the pollution. The WPC board uses PVC, waste wood or agricultural plants, CaCo3 and other additives as main material, the boards are the newly products that can take place of the steel plate and bamboo plate.
The products features environment friendly, corrosion-resistance, damp-proof, moth-proof, distortion resistance, and can be processed under the same processing conditions as wood products, low cost, light weight, and could recycle more than 30 times, therefore they have wide and popular application in the future.. The waste woods and plastic can be recycled to produce WPC boards, which not only good to the environment, but also “turn wasted into wealth”.
PVC and WPC crust foamed boards also use widely as building board, tools board, furniture, mould for block, packaging ,recycling box, advertisement plate, show plate, business plate, roof, ship profile, etc. this product have specifications as weather resistance, resistance germ, corrode, cloudy, ant, fire, elect, worms, mice, ultraviolet ray, etc. also could keep temperature, use long times.
This production line adopts special designed SJZ80 conical twin screw extruder, uses DC speed regulator, imported world famous brand temperature controller, has the advantages of large speed regulating scope, accurate temperature control, easy and reliable operation. The auxiliary units consist of vacuum foamed stand, haul-off, cutting machine and stacker, etc. It is equipped with large forced cooling device to ensure good foamed result. The crawler track type haul-off adopts précised reduction and frequency inverter, features reasonable structure; large hauling force and stable haul off. The cutting machine has the characteristics of reliable and precise working, accurate cutting, etc. The stacker is matched with movable trolley and special designed rubber protection shield, has the advantages of damage free to the product, easy and convenient operation, etc. The auxiliary units are able to use the PLC control, which is stable and reliable.
Main Technical Parameters
| Model | Unit | SJSZ80/156 | SJSZ92/188 | SJSZ80/156, SJ65/132 | SJP92/32 |
| Product width | mm | 1220 | 1600 | 1600-2050 | 2050 |
| Product thickness | mm | 3-20 | 5-30 | 3-20 | 3-20 |
| Max. extrusion capacity | Kg/h | 350 | 500 | 600 | 450 |
| Power of extruder | KW | 75 | 110 | 120 |
75 |
