Product Details:
|
| Condition: | New | Plastic Processed: | UPVC PVC WPC |
|---|---|---|---|

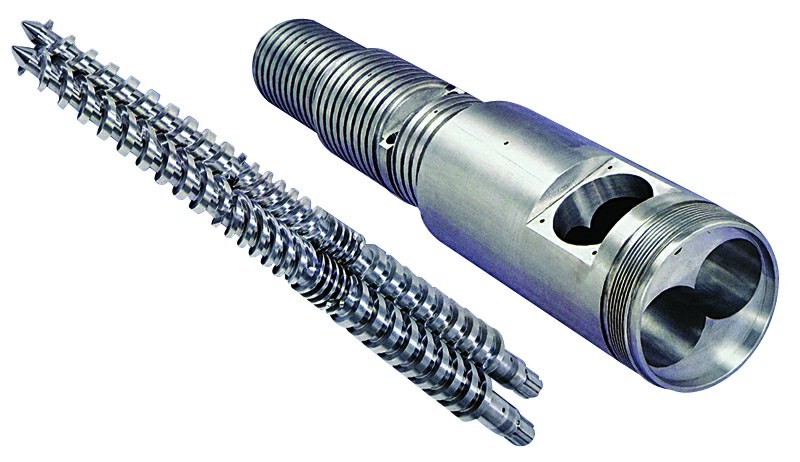

| Screw Design:: | Double-screw | Material: | PVC UPVC WPC |
| Power(W): | 150kw-350kw | Voltage: | 380V/220V |
| High Light: | pvc foam board production line,pvc foam board making machine |
||
PVC /Crust/Skinning Foam Board/Sheet Extrusion Line/Extruder Machine／PVC Foam Board Extrusion Line
PVC foamed board (free foam,semi-skinning, crust) Introduction:
Application:
PVC free foamed board or skinning board is widely used in bus and train roofing, core layer of box, advertisment board, decoration board, furniture board, construction decoration material, advertisement board, upholstery for train, exhibition board, etc.
| Model | PVC Skin or Semi-skinning foaming board extrusion line | PVC free foaming board extrusion line | ||
| Production Width | 1220mm | 1560mm | 2050mm | 1200-2400mm |
| Production thickness | 5-25mm | 8-18mm | 8-15mm | 1-15mm |

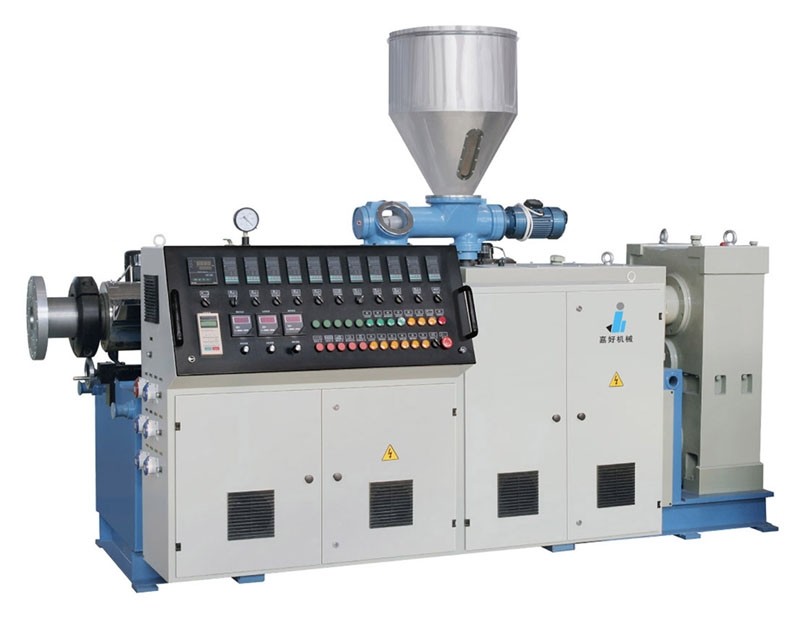

| Extruder Model | SJZ80/156 | SJZ92/188 | SJZ92/188 | SJZ80/156 |
| Capacity (Max.) | 500kgs/h | 650kgs/h | 650kgs/h | 450kgs/h |
| Main Motor Power | 75KW | 132KW | 132KW | 75KW |
More information about PVC skinning/crust foam board Extrusion line
1. Advertising Materials Foamed PVC Sheet Board Extrusion Line
PVC foamed board line’s outer surface layer is rigid PVC and inner layer foamed PVC, it feature in low machine and formula costcompared with PVC skinned foamed plate, meanwhile, the product and parameters( 1.22m width with 5-20mm thickness product dimension, ~0.5g/cm3 density, 50-75 Rockwell hardness) are all equal or better. Also, the surface of the product can be printed or laminated to get different patterns.

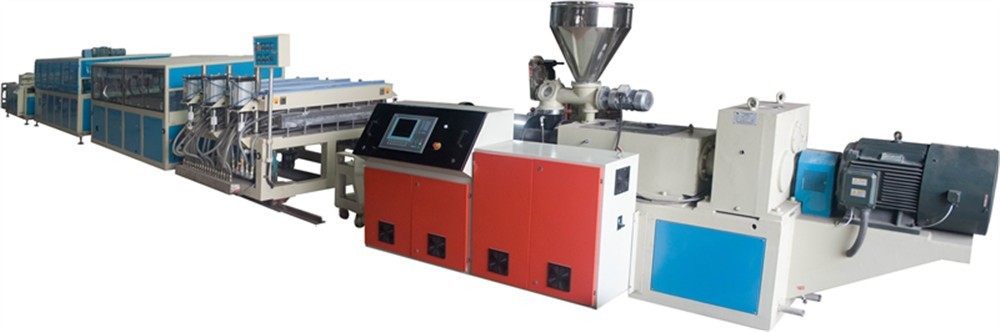

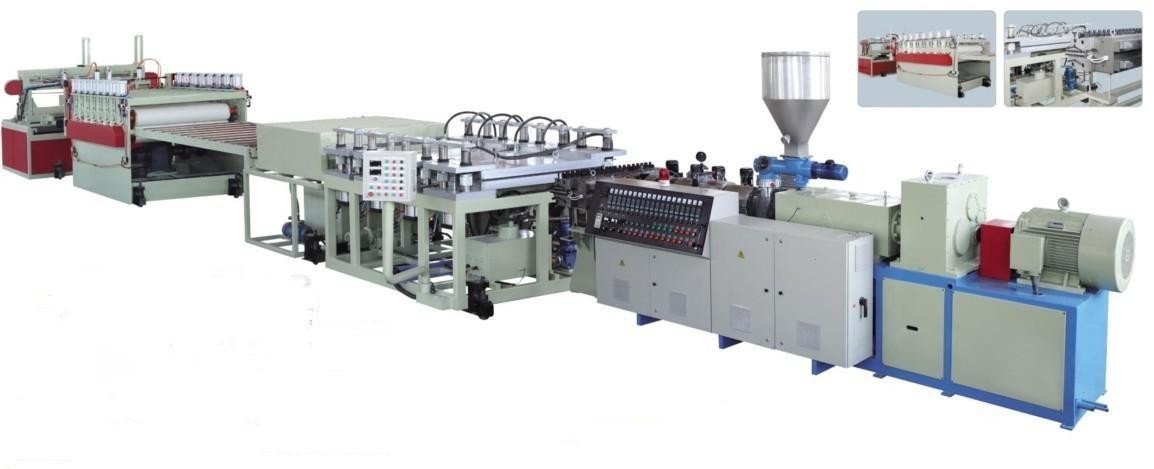

The machine consists main extruder & co-extruder, distributor, calibrator moulding block, cooling rack, haul off, cutter & stacker.
Processing performance: available to be easy processed and further processing with the common wood instrument, such as saw, nail, drill, shave; available to directly adhere to other PVC material; available to further heat processing and surface processing.
| Type | LB |
| Product width | 1220mm |
| Product thickness | 5-25mm |
| Capacity | 200-500kg/h |
| Extruder type | SJZ80/156&SJZ65/132 |
| Mould spec. | 1400mm |
| Total power | ~220kw |
2. PVC Foam Board Features:
1). Waterproofing.
2). Fire retardant and self-extinguishing.
3). Heat preservation.
4). Sound-insulated.
5). Insulation.
6). Non-corrosion.
7). Non-toxic.
8). Tough, rigid with the high impact strength.
9). Stable color retention.
10). Dampproof.
11). Anti - deformed
3. Applications:
1). Building outdoor wall board, indoor decoration board, partition board in office and house.
2). Screen printing, flat solvent printing, engraving, billboard and exhibition display.
3). Chemical anti corrosion project, special cold project, environmental protection.
4). Sanitarywares, kitchen cabinet, washroom cabinet.
