380V PVC Foam Board Extrusion Line for Architecture Decoration Industry
Product Details
| Condition: | New | Plastic Processed: | PVC WPC |
|---|---|---|---|
| Screw Design:: | Double-screw | Material: | PVC WPC |
| Machine Name: | PVC Co-Extrusion Foaming Board Extrusion Line | Voltage: | 380V |
| Highlight |
pvc foam board production line,pvc foam board machine |
||
Product Description
380V PVC Foam Board Extrusion Line for Architecture Decoration Industry

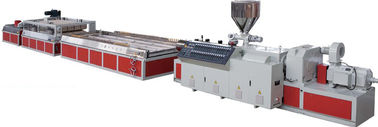

PVC foam board extrusion line adpat foaming technology. PVC foam board not only has much more smooth surface, but also the hardness is better. In additonal mechanics performance of foaming board is better than that of free foaming board. PVC foam board extrusion line is composed of conical twin-screw extruder, die, vacuum calibration unit, ten hall-off unit and so on, our company can provide the formula and all the processing techniques. This machine has the features of high output, stable extrusion, high foaming, smooth and wearable surface.By equipping with the printing machine, laminating machine or hot stamping machine, this machine can produce different kinds of artificial wood products, so that this machine has a very wide application range.
Co-Extrusion Foaming Board Extrusion Line:
It is Langbo machinery company newly designed foaming board extrusion line,Through the Co-extrusion,it produces the no foaming Rigid PVC layer to cover the foaming layer, it highly improve the foaming board surface hardness,the performance of this machine is stable and the technology belongs to the most advanced level in Chinese market.
PVC Co-Extrusion foaming board extrusion line Main Technical Specification:
| Model | Skinning | Semi-Skinning | Co-Extrusion |
| Products Width | 700-1220mm | 1220-1600mm | 1220-1600mm |
| Products Thickness | 5-25mm | 5-18mm | 3-18mm |
| Extruder Specification | 130/21 | 80/156 | 65/132 80/156 |
| Capacity (Max.) | 720kg | 400kg | 450kg |
| Main Motor Power | 132KW | 75KW | 37KW/75KW |
