Customized PP PE Plastic Granulator Machine , Recycling Plant Machinery With Water Ring Cutter

China Customized PP PE Plastic Granulator Machine , Recycling Plant Machinery With Water Ring Cutter supplier

Large Image :  Customized PP PE Plastic Granulator Machine , Recycling Plant Machinery With Water Ring Cutter

Product Details:

Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE, ISO
Model Number: LB

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD, EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 10 SETS PER MONTH
Contact Now
Detailed Product Description
Name: PET Recycling Line Packaging Details: Standard Sea Worthy Packing
Production Output: 100-800kg/hr Certificate: ISO9001, CE
Dimension(L*W*H): 13mx2mx2.9m Warranty: One Year





Customized PP PE Plastic Granulator Machine , Recycling Plant Machinery With Water Ring Cutter

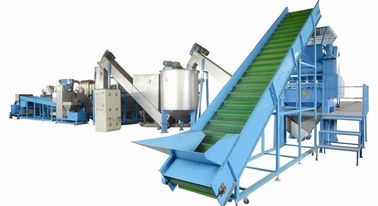

This granulating line is mainly consists of:







1. Belt conveyor: feed the clean films or bags into the cutting compactor



2. Metal detector: check whether there is metal in the films or bags, protect the blades of cutting compact and



screws



3. Cutting compactor: cut the materials again and make materials shrink, then force feed the shrunk material



into the extruder. For the same capacity, the power consumption is only 50% of the agglomerator.



4. Single screw extruder: for plasticizing the materials and exhausting the gas, it is made of 38CrMoAlA



generally.



5. hydraulic screen changer: filter the impurities, improve the granules quality



6. Water ring Pelletizer: includes mould and pelleting blades, we can provide both vertical type and horizontal



type.



7. Water cooling tank: use circular water for cooling the granules immediately after pelleting cut.



8. Vertical dewatering machine: convey the granules helically from bottom to top, the rotary rotor and the



stainless screen help to drain the water, and convey the granules out from the machine



9. Vibration screen: to filter out non-standard pellets and get even uniform quality pellets.



10. Blower system: use the blower to blow the granules to the storage silo through the SS304 pipe.



11. Storage silo: for storing the final pellets.



12. Control system: use SIEMENS contactor, Omron temperature controller, ABB or FUJI inverter



and SIEMENS BEIDER China famous electrical components.







Main specification:

  1. PP,PE plastic films recycling pelletizing machines
  2. To make pellets from PP,PE film scraps
  3. Production output: 100-800kg/hr
  4. Certificate: ISO9001, CE





Quick Details:

  • Condition: New
  • Type: PP PE films pelletizing machine
  • Capacity: Maximum capacity 1000kgs/h, 500-600kgs/h
  • Place of Origin: Jiangsu, China (Mainland)
  • Model Number: ML series PP PE film recycling pelletizing machine
  • Material: PP,PE,LDPE,LLDPE,ABS,PA etc
  • Screw Design: For chosen: single or twin screw
  • Voltage: according to your needs
  • Power: according to different capacity
  • Dimension(L*W*H): 13mx2mx2.9m
  • Weight: 12 ton
  • Certification: CE certificate
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Machine type: PP PE film recycling pelletizing machine
  • Model: ML series
  • Configuration: one stage, two stage
  • Color: can be chosen
  • Shipment terms: FOB,CIF,CFR,EXW
  • Guarantee period: one year
  • Application: plastics recycling and pelletizing
  • Recycling materials: heavily printed and contaminated plastic films





Product Description:



PP, PE films recycling pelletizing machine Applications:



1. Applicable plastic materials: PE, HDPE, LDPE, PP, BOPP, etc



2. Material shapes: film, bag, (PE, PP) regrind



3. Material types: rolls, loose, bundled



4. Material comes from offcut, industry defective film, washed film and printed film.



5. Note: depending on different material properties, various downstream equipments are available.







PP, PE films recycling pelletizing machine Advantages:



1. Complete degassing, suitable for moist film and printed film;



2. Having 2 filtrations, ensuring the purity of final pellets.



3. Extrude more evenly, having more stable output and better pellets.



4. CE Certificate.



5. Long service life.



6. Customized.



7. Support installation and operation training at Buyer’s plant









PP, PE films recycling pelletizing machine Manufacturing Process:



Feeding materials onto the Belt Conveyor –materials being pre-heated, cut, mixed and compacted in the



Cutter Compactor /Agglomerating machine – being squeezed evenly in the Extruder – coming out from the



machine head after venting and filtering system Hydraulic screen changer –being cut by Water ring pelletizing



sytem –being dried by Dewatering system – being transferred into the Silo –the End







Main Characteristic of PP, PE films recycling pelletizing machine:





This granulator machine is used to make pellets from waste plastics, like PP, PE films, or HDPE, LDPE, BOPP



films.



Due to the films are very soft and foamed, it’s difficult to be filled into extruder directly, even by force feeder



screw, the efficiency is not good, and can be blocked. So, we integrated the most advanced technologies and



cost-effective concepts for this kind of machine, we developed the PP, PE film compactor granulating machine.







Main Technical Parameter of ML Series single stage/double stage PP, PE films recycling pelletizing machine (with compactor):







ML series single stage pe pp film & flake compactor-granulator machine(with compactor)
Model ML-85 ML-100 ML-130 ML-160 ML-180
Screw Dia. (mm) 85 100 130 160 180
L/D Ratio 25-42 25-42 25-33 25-33 25-33
Output (kg/hr) 120-180 250-350 400-500 550-700 800-1000
ML series double- stage pe pp film & flake compactor-granulator machine(with compactor)
Model ML-85/85 ML-100/100 ML-130/130 ML-160/160 ML-180/180
Screw Dia. (mm) 85 100 130 160 180
L/D Ratio 25-42 25-42 25-33 25-33 25-33
Output (kg/hr) 120-180 250-350 400-500 550-700 800-1000
