Product Details:
|
| Application: | For Recycle Waste Plastic PP, PE Film/bag,etc | Automatic Grade: | Automatic |
|---|---|---|---|
| Production Capacity: | 150-3000kg/h | Model Number: | PE PP Recycling Washing Line |
| Certification: | CE, ISO9001 | Warranty: | 12 Months |
| High Light: | plastic reprocessing machine,plastic waste recycling machine |
||

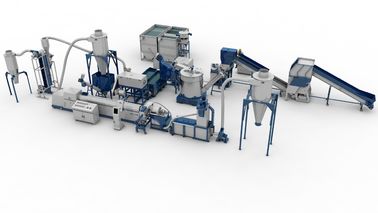

Belt Conveyor Automatic Waste Plastic Recycling Line For Recycling PP PE Films
Application:
Applicable plastic materials for waste plastic recycling and granulation machine: PP, LDPE, LLDPE, HDPE,
BOPP, etc.
Material shapes: Woven bags, printed LDPE film (rolls, loose, bundled), agriculture film, foamed plastics and
raffia, etc.
Note: depending on material property, various downstream equipment are available.
Working Flow:
Plastic film & bag recycling and washing line (1000kg/h):
Belt conveyor*2→Crusher (with water) *2→ Double screw conveyor*2→Film floating washer→Screw
conveyor→High speed friction machine→Screw conveyor→Horizontal dewatering machine→Drying
system→Transition silo→Drying system→Storage hopper→Control cabinet
Advantages:
1. Final products has good quality. When process PP PE film bags, final products humidity below 5%.
2. The whole line capacity between 150kg/h-2000kg/h (150kg/h, 300kg/h, 500kg/h, 1000kg/h, 2000kg/h)
3. Parts which contact material use SUS304, thickness more than 3mm, ensure long service lift time
4. World famous brand components applied on the production line- SKF bearing, Siemens contactor, Omron
temperature, FUJI invertor, Siemens PLC control etc.
5. The whole production line with CE certification, ISO9001 certification.
| Plastic PP PE film/bag recycling washing line main components(1000kg): | |
| Name: | Power: |
| Belt conveyor | 2.2kw |
| Crusher | 55kw |
| Screw conveyor | 3kw |
| Belt conveyor | 2.2kw |
| Crusher | 55kw |
| Screw conveyor | 3kw |
| Floating washer | 3kw+3kw+3kw |
| Screw conveyor | 5.5kw |
| High speed frication machine | 45kw |
| Screw conveyor | 5.5kw |
| Horizontal dewatering machine | 110kw +1.5kw |
| Drying system-1 | 48kw+11kw |
| Transition storage hopper | |
| Drying system-2 | 36kw+11kw |
| Storage hopper | 1.5kw+1.5kw |
| Control cabinet | |
SJ series plastic film/bag granulating line/ pelletizing machine:
| SJ series single stage pe pp film granulator machine(with side feeder) | ||||||
| Model | SJ-65 | SJ-80 | SJ-100 | SJ-120 | SJ-150 | SJ-200 |
| Screw Dia. | 65 | 80 | 100 | 120 | 150 | 200 |
| L/D | 28-30 | 28-30 | 28-30 | 28-30 | 28-30 | 28-30 |
| Capacity | 60-80kg/h | 80-100kg/h | 150kg/h | 300kg/h | 400kg/h | 500kg/h |
| SJ series double-stage pe pp film granulator machine(with side feeder) | ||||
| Model | SJ-100/100 | SJ-120/120 | SJ-150/150 | SJ-200/200 |
| Screw Dia. | 100 | 120 | 150 | 200 |
| L/D |
28-30 10-15 |
28-30 10-15 |
28-30 10-15 |
28-30 10-15 |
| Capacity | 120-180kg/h | 220-300kg/h | 300-400kg/h | 500-600kg/h |
ML Series plastic film/bag compactor granulator line/pelletizing machine
| ML series single stage pe pp film compactor-granulator machine(with agglomerator) | |||||
| Model | ML-85 | ML-100 | ML-130 | ML-160 | ML-180 |
| Screw Dia. (mm) | 85 | 100 | 130 | 160 | 180 |
| L/D Ratio | 25-42 | 25-42 | 25-33 | 25-33 | 25-33 |
| Output (kg/hr) | 120-180 | 250-350 | 400-500 | 550-700 | 800-1000 |
| ML series double- stage pe pp film compactor-granulator machine(with agglomerator) | |||||
| Model | ML-85/85 | ML-100/100 | ML-130/130 | ML-160/160 | ML-180/180 |
| Screw Dia. (mm) | 85 | 100 | 130 | 160 | 180 |
| L/D Ratio | 25-42 | 25-42 | 25-33 | 25-33 | 25-33 |
| Output (kg/hr) | 120-180 | 250-350 | 400-500 | 550-700 | 800-1000 |
Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the
factory.
3. we will provide good service for machine installation and training, until the customers can run the machines
and make stably production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. for long-term cooperation, we always provide good quality, good price and good service to customer.
