Product Details:
|
| EXTRUDER TYPE: | 55/110 CONICAL TWIN SCREW EXTRUDER | PROFILE'S SIZE: | 1180MM |
|---|---|---|---|
| MOTOR POWER: | 22KW | RAW MATERIAL: | PVC POWDER & ADDITIVES |
| HAUL-OFFS: | TWO INDEPENDENT TRACKS | CALIBRATION TABLE: | EIGHT MTERS LONG |
| PACKING METHOD: | WOODEN BOX AND FILM PACKAGE | PROFILE SIZE: | ACCORDING TO CUSTOMERS' DRAWING |
| DELIVERY TIME: | WITHIN 90 DAYS | ||
| High Light: | PVC Baseboard Profile Extrusion Line,baseboard pvc profile extrusion,baseboard plastic profile extrusion line |
||
PVC Baseboard Profile Extrusion Line
Product Description
For the PVC baseboard profile making, our extrusion line is designed tailored to customers’ demand. After signing the sales contract, our customers send the profile sample they want to produce to us. Receiving the sample, we measure the diameter and design the mould.
Design details:
For this pvc baseboard profile extrusion line, our customers want to produce a special-shaped profile. So we choose SJSZ55/110 22kw extruder. The extruder is controlled by buttons. It has goodquality inverter and electrical contractors. The mould is specially processed in order to keep the profile having good performance. Our calibration table is 8 meters long. All the connection parts for the calibration table is 3mm SUS304. Our haul-offs rubber has special curvatures ensuring the pulling force of the profile. When trial running of this line, our machine extrudes perfect profile.
Specifications
| Model | LB180 | LB240 | LB300 | LB600 |
| Max width of products(mm) | 180 | 240 | 300 | 600 |
| Screw Model | SJ55/110 | SJ65/132 | SJ65/132 | SJ80/156 |
| Motor power | 22KW | 37KW | 37KW | 55KW |
| Cooling Water(m3/h) | 5 | 7 | 7 | 10 |
| Compressor(m3/h) | 0.2 | 0.3 | 0.3 | 0.4 |
| Total length(m) | 18m | 22m | 22m | 25m |
Product detail

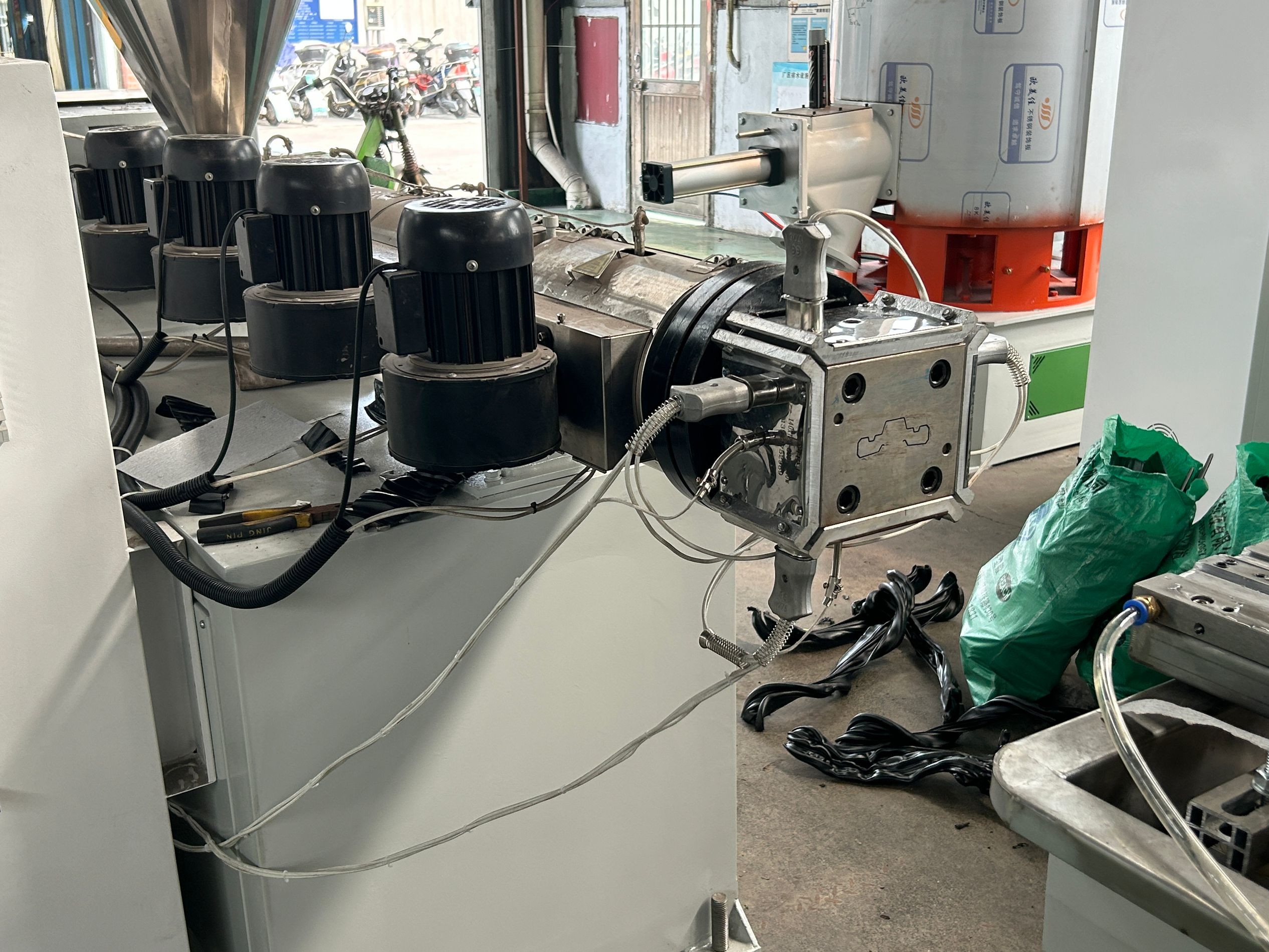

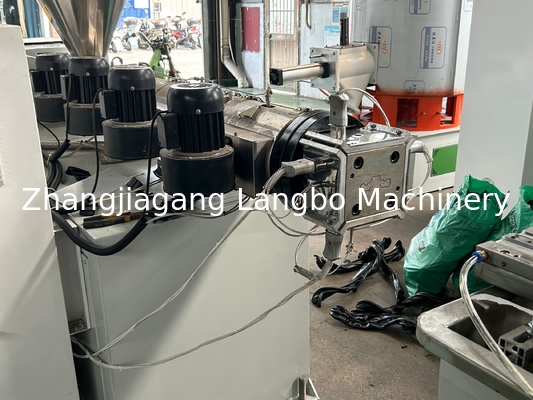

Conical Twin Screw Extruder
The screws are specifically designed and manufactured for the processing of dry pvc powder blend. Our conical twin screw extruder design cater to the raw materials feature ensuring homogeneous mixture, better plastification and conveying efficiency. The permanent magnet synchronous motor provide high energy efficiency for the extruder. Equipped with PLC control system, it realized controlling the whole production line in the one site.
Mould
Our mould is processed by 40Gr forging and coated hard chromium on surface. The material of whole Vacuum calibrating sleeves is copper

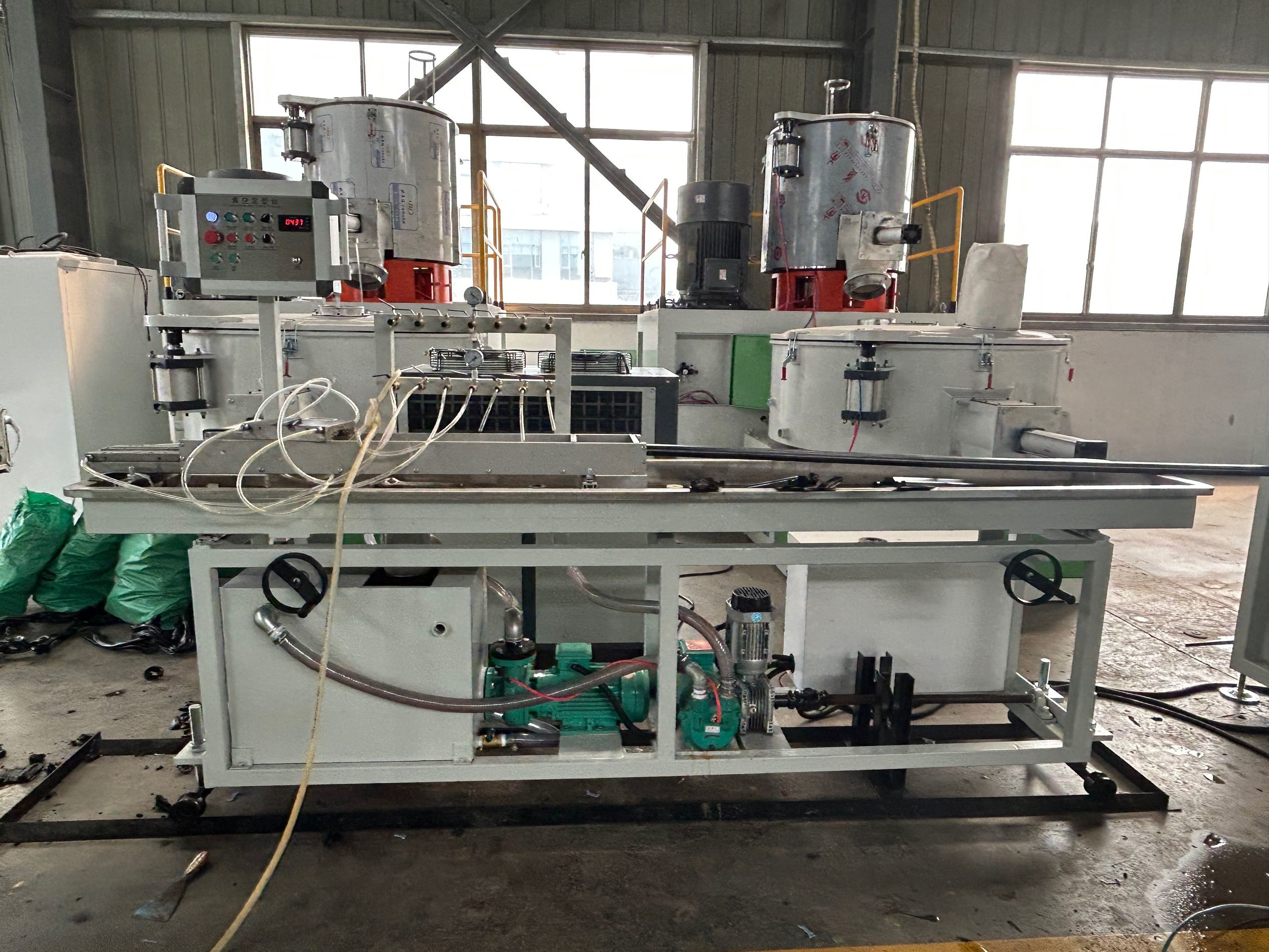

Calibration table
The calibration table has stable steel frame and the whole body material is SUS 304 stainless steel. We have multi-dimension position adjustment system. With precious layout of water pumps and vacuum calibrator, the PVC profile will be rapidly shaping and cooling. Enough length of the calibration table ensures the shaping of the PVC profile

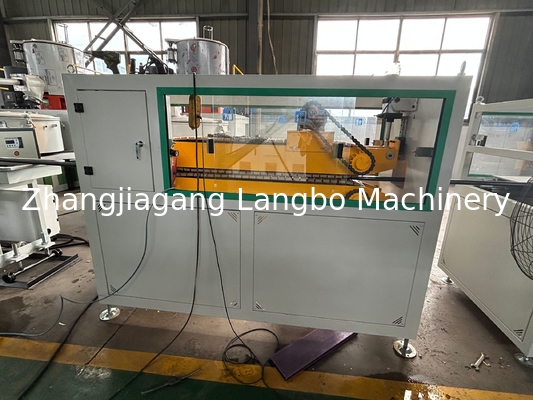

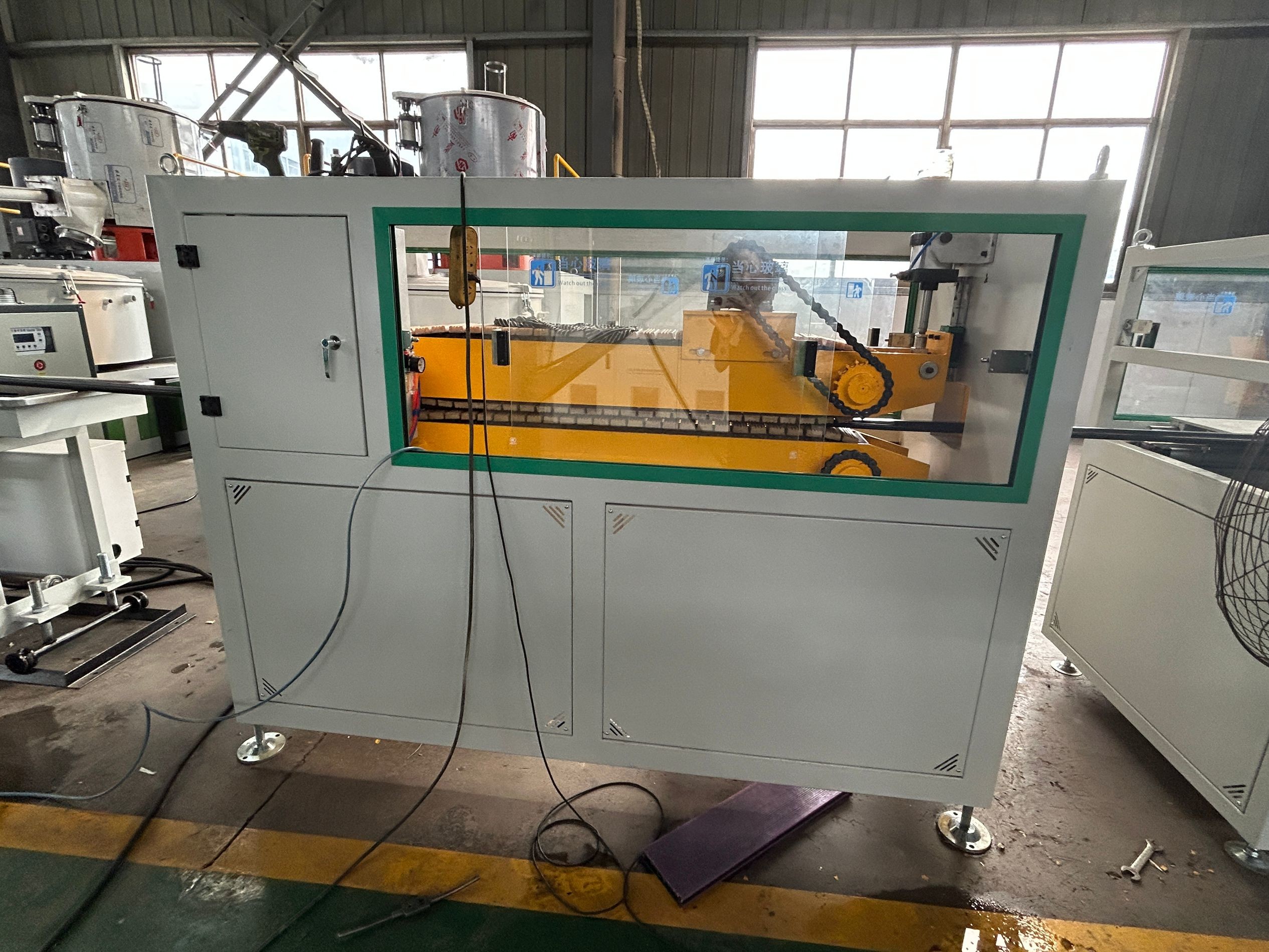

Haul-off
The force distribution along each caterpillars has sufficient hauling force. We offer good-quality rubber for the haul-off machine. The pneumatic pressure is conducive to the easy adjustment and product protection.

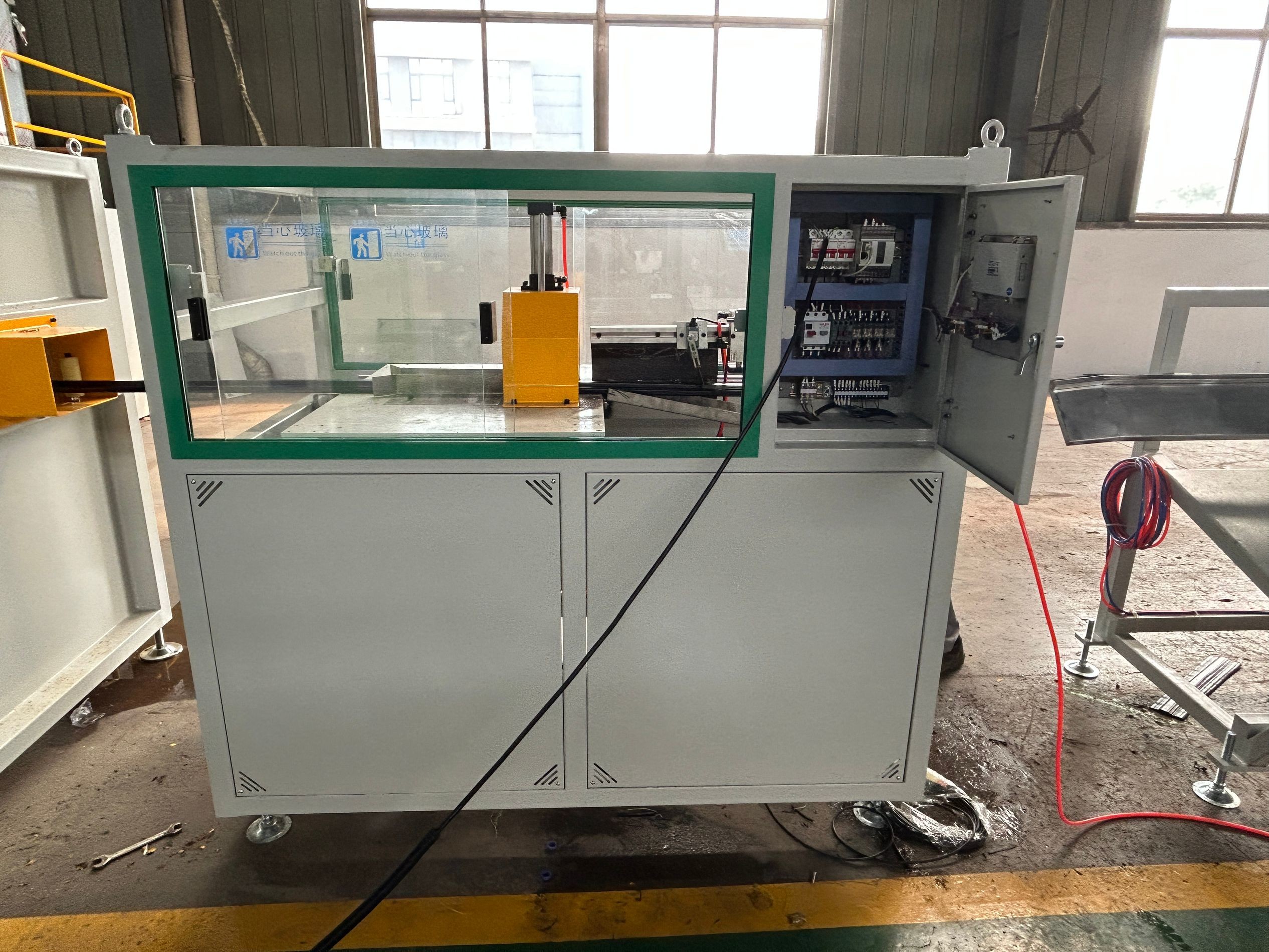

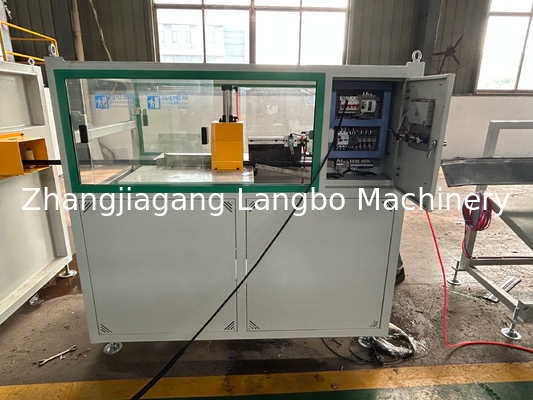

Cutter
It adopts saw cutting method. It is sharp enough to cut the pvc profile without destroying its inner structure.

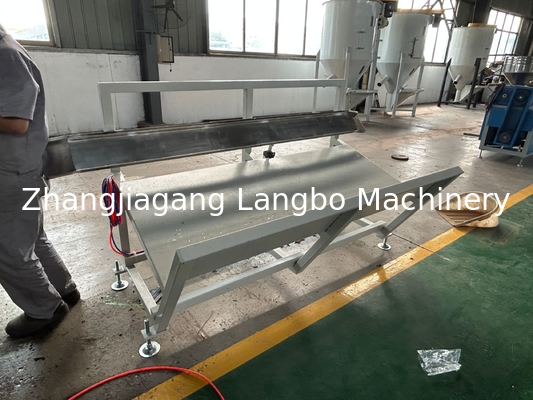

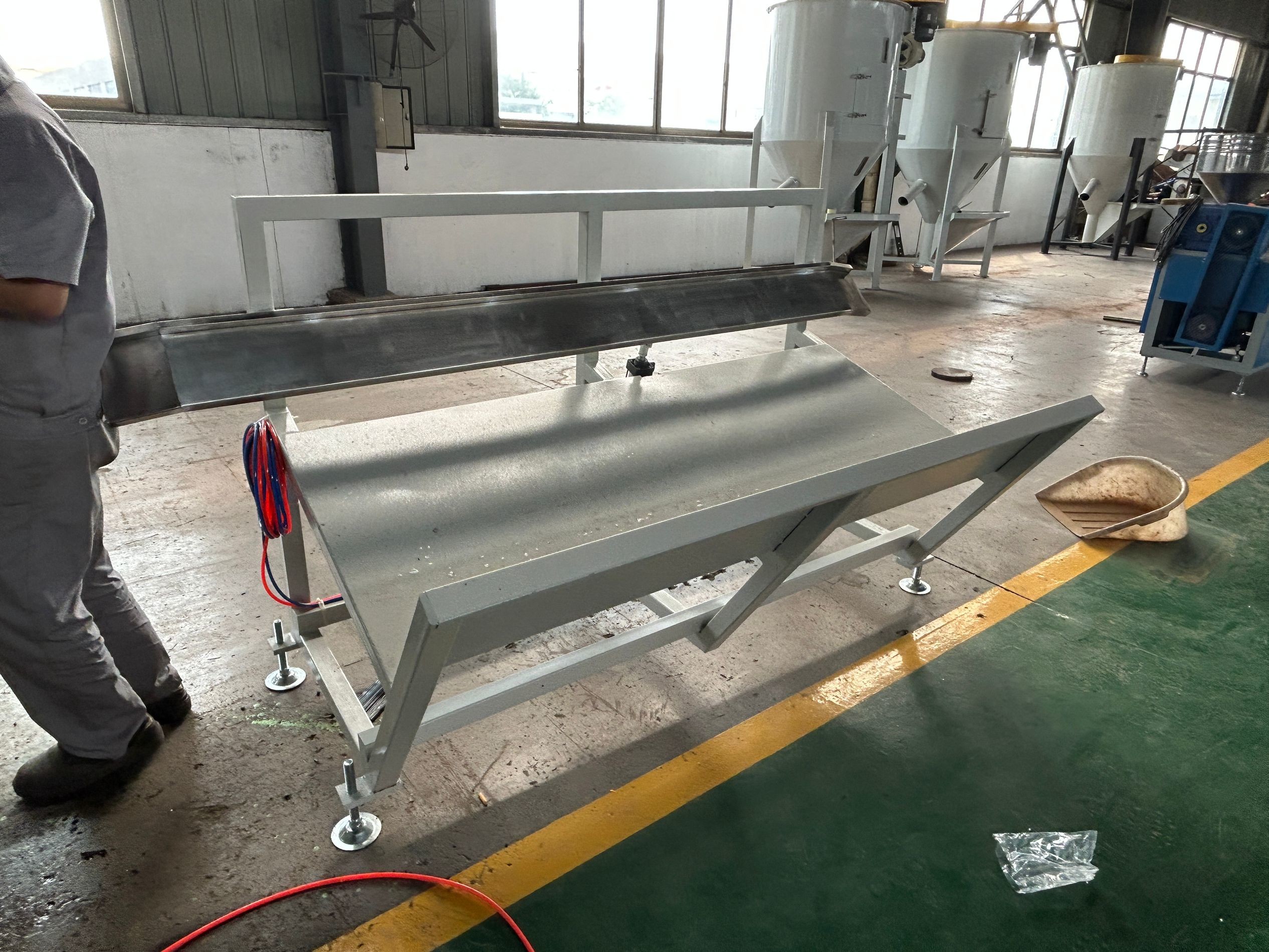

Stacker
The cut product will lay down on the stacker one by one. And the workers will pack them into a balk. It is useful for carrying and transporting.

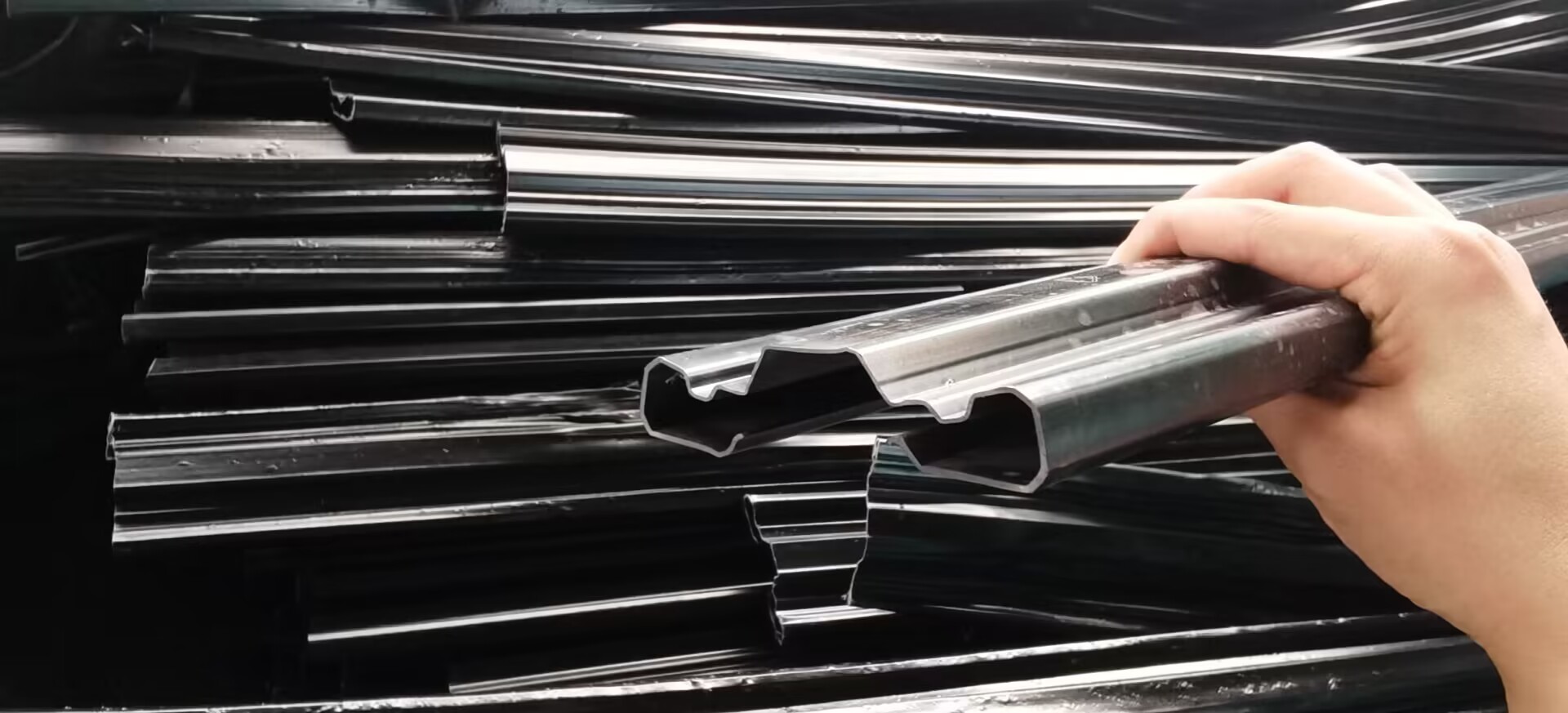

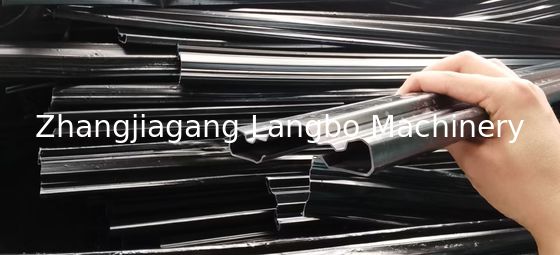

Finished product
The extruded products has complex structure and smooth surface.
