|RAW MATERIAL:||PP/PE RIGID & FILM WASTES||Machine Material:||Stainless Steel Or Carbon Steel|
|OPERATION:||AUTOMATIC||Function:||Crushing, Washing, Drying And Granulating|
|CRUSHING WAY:||CRUSHER||DRYING WATER:||SQUEEZING DRYER|
plastic reprocessing machine,
plastic waste recycling machine
Waste PP Woven Bags PE Films Plastic Recycling Machines / Granulating Recycling Machine
PP woven bags/PE film crushing washing drying granulating recycling machine includes crushing, washing, drying and granulating function. Final products is PE/PP granules.
The capacity of washing recycling line is 300-1000kg/h. Max of unit granulating system is 500kg/h.

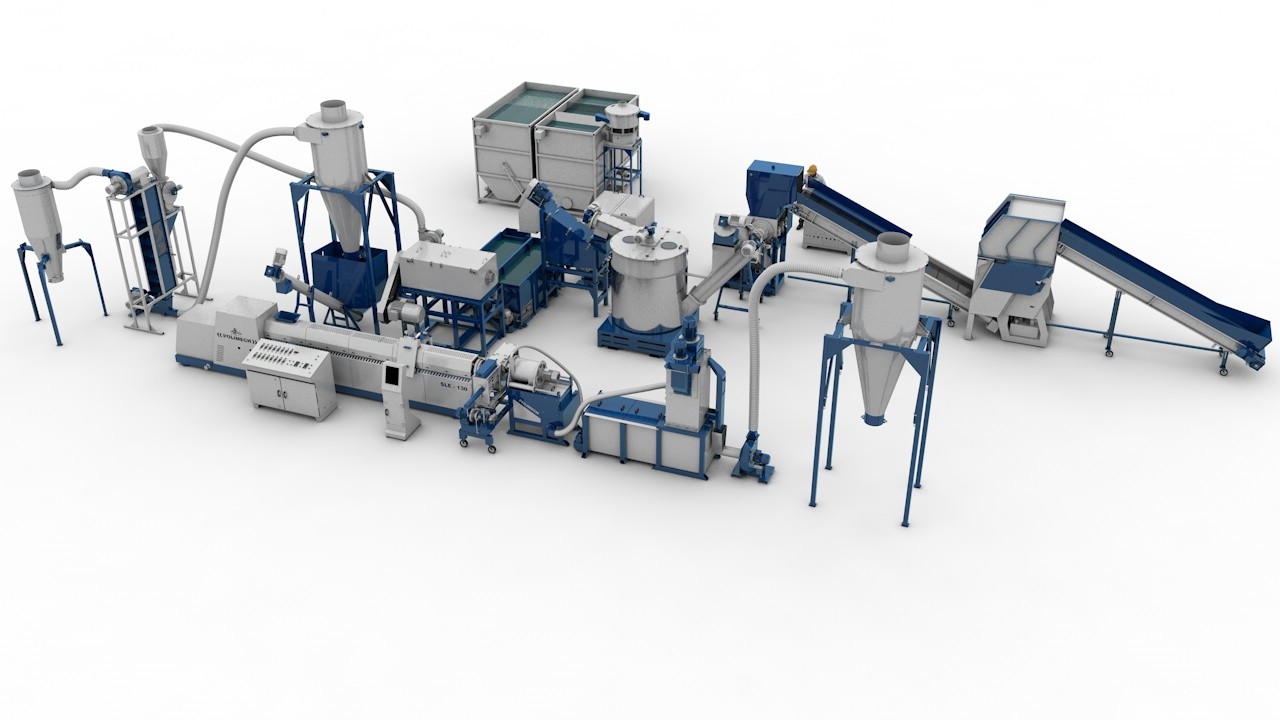

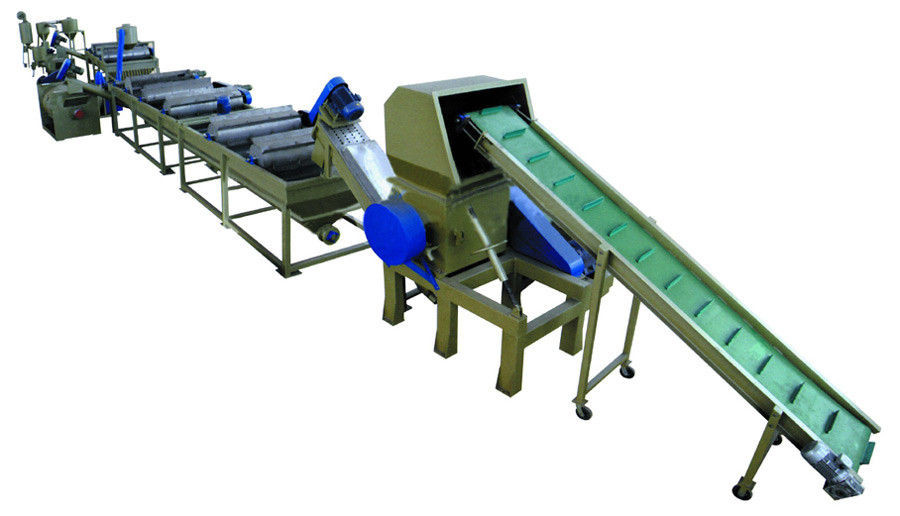

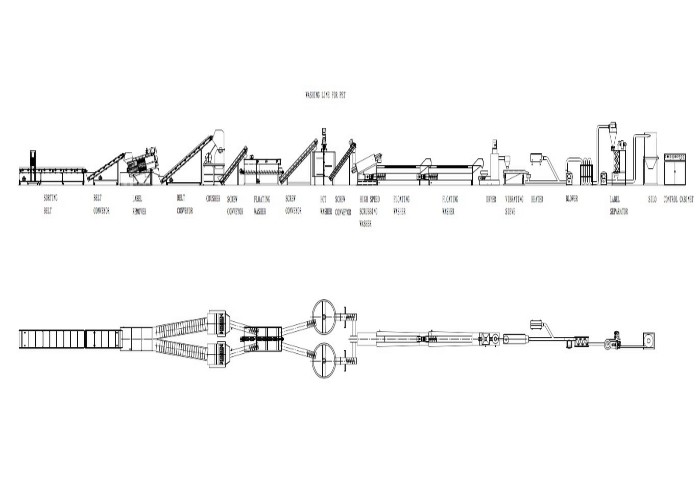

The process of whole line: Belt conveyor- Plasic crusher- firction washing and dewatering machine-screw feeder- risining washer-high speed friction washer- rinsing washer-horizontal dewater machine-hopper-screw feeder-PE PP two stages extruder- hopper. The whole line device will be designed according to dirty degree, packing method of raw material.
1. Screw feeding conveyor : Convey the waste PET PP to the crusher
2. Crusher: Crush the waste PET PP.
3. Flotation rinsing unit: Separate the bottles caps and impurity from the crushed PET PP flakes.
4. Screw feeding conveyor: Convey the waste PET PP to the hot washer.
5. Hot washing tank ( 2pcs): wash the PET PP flakes.
6. Screw feeding conveyor(2pcs): Abstract the PET PP flakes from the hot washer.
7. High speed Scrubbing washing unit: remove the impurity and the rest dirty in the surface of the PET PP flakes.
8. Floating tank: Separate the caps and impurity from the PET PP flakes again.
9. Electric heating drying unit:dry the PET PP flakes.

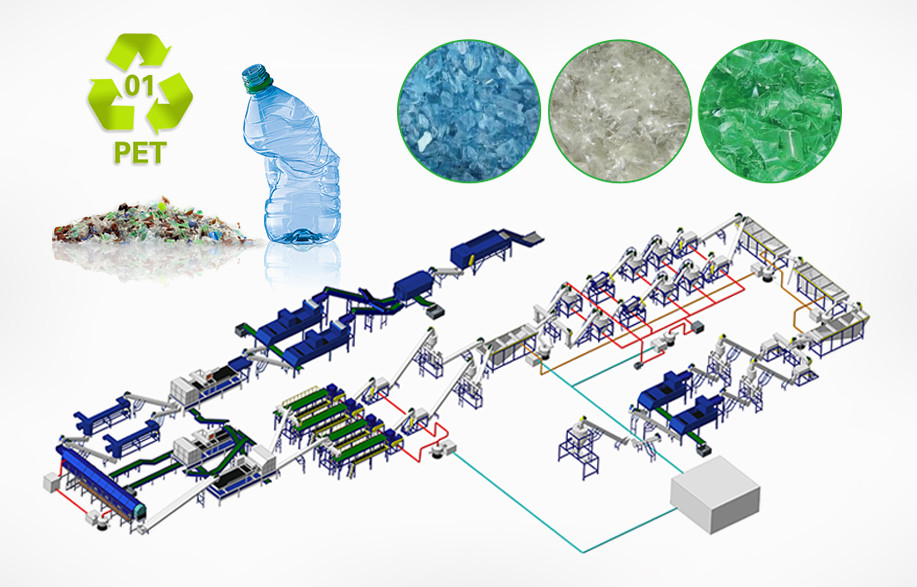

10. Pet pp washing recycling line (crush+ wash+ dry)
1. High capacity:600kg/h-3000kg/h
2. The whole line can be controlled by a control cabinet, it is easy to operate, convenient.
3. 1-4 workers needed to operate the line and manual power saving.
4. Strong machine , thickened carbon steel/ stainless steel, wear resistance, durable and of long usage life.
5. Dynamic balance, will not shake when operating.
6.Stable operation, can continuous work.
7.Double painting, inside antirust paint and outside paint.
8.Complete equipped. Motor, vee belt, start switch, protective cover
9.We could send engineers to your side if necessary.
10.It is multi-functional automatic production line,can be recycle applied to PET/PP/PE/HDPE/LDPE/ABS ect.many materials.
1. Friction washing dewatering machine: This machine usually placed back of crusher. Crusher is working with water. PE PP material with dirty water come to firction washing dewatering machine. It will friction wash raw materials and remove drity water at same time. Ensure dirty water will not flow into next equipment.
2. Rinsing washing tank: double V bottom design, more deep and volume than old model which are good for rinsing washing.
3. New model high speed friction washer: This model friction washer with three zones. First zone is swage water dewatering, second zone is clean water friction washing, third zone is friction dewatering. It with screen cleaning device and big maintain door.
4. PE PP film squeezing pelletizing machine. Final products like popcron, mositure is around 1-2%. It good for material feeding of extruder, ensure capacity of extruder.
