UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line

China UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line supplier
UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line supplier UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line supplier UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line supplier UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line supplier

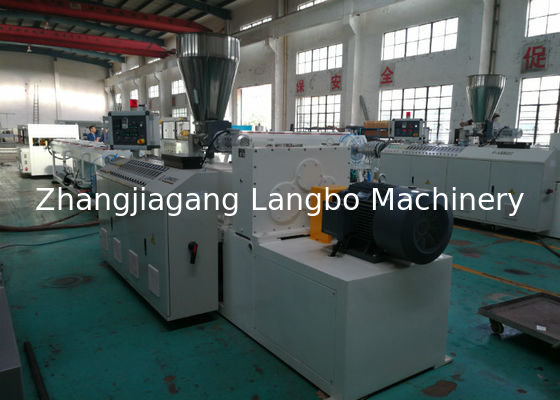

Large Image :  UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line

Product Details:

Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE ISO
Model Number: LB-63W

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Detailed Product Description
Name: PVC Pipe Extrusion Line Condition: New
Application: PVC Pipe Making Line Plastic Process: PVC/UPVC
Warranty: One Year Automatic Grade: Full Automatic
Final Product: Pipe Motor: AC







UPVC / Pvc Pipe Production Line , Full Automatic Plastic Pipe Making Machine


Product Description

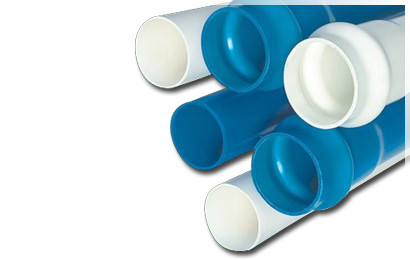

1 PVC a two UPVC pipe production line, used in the production of various water supply, drainage, electrical



and electric line pipe, etc..


2. The machine with energy efficient conical twin-screw extruder and through special mould one-time extrusion



second piece of PVC pipe, effective energy conservation, can improve the production and efficiency, save land



and labor costs.



3. designed for a second PVC pipe design clean cutting machine, the independent variable frequency speed



regulation, according to the cutting of the need to adjust the cutting speed, using the Hough clamping device,



so the fixture using a longer life, product cutting surface is smooth, no burr, to solve the PVC chip dust



pollution problem, using an incremental encoder meter long cutting, to ensure that products are cut to size



consistency.

4. Designed for inkjet printer developed double to spurt the code mobile device, using a nozzle jet printing dual



character, reduce customer assets to spurt the code machine inputs.

5. Designed for PVC powder, the design of the forced feeding device, by twin screw forced feeding device,



effectively prevent powder in the feeding process of bridging and material shortage phenomenon occurred.

6. The control system with intelligent distributed the new scheme, with a single adjustment, across the board



synchronous linkage, automatic fault alarm, beautiful in appearance, convenient in operation, high degree of



automation, stable and reliable production.






Consists:

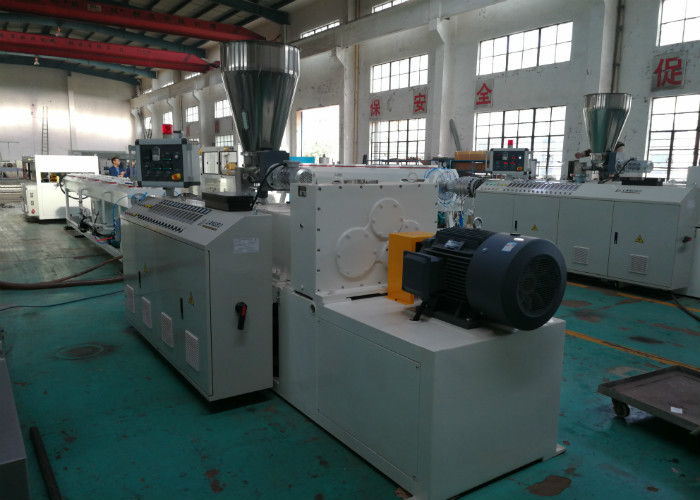

1. extruder: adopting conical twinscrew extruder, unique designed screw, realizing shorting plasticizing time



, good compounding and excellent plasticization.





2. gearbox: adopting super quality gear box and reducer, with nice outline, stable running, low noise and



long service time.





3. extruding barrel temperature controlling system: adopting cast aluminum heaters with stainless steel



covers, wind cooling system, ensuring good features of cooling and heating, precision temperature



controlling.





4. screw and barrel: screwcore installing with internal temperature controlling system, barrel equipped with



vacuum degassing system, can get rid of the waste gas from the raw material which can guarantee super



quality of the products.





5. driving system: adopting A.C motor, using FUJI or ABB inverters which provide stable torque output and



various speed.





6. vacuum calibrating tank: with two vacuum chambers which can make sure the perfect roundness of the



pipe, spraying water cooling, equipped with temperature controller, realizing automatic discharging the



water, the main body of the tank make of stainless steel, long service time.





7. haul off machines: 2 laws, 3 claws, 4 claws, 6 claws and 8 claws are provided to manufacture various



pipes, haul-off speed governed by the FUJI or ABB inverter.

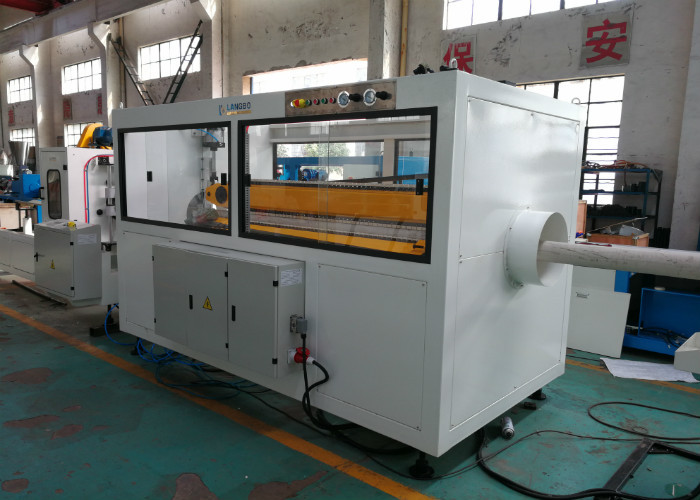

8. cutting unit: saw cutting and planet saw cutting, with dust collection system.





9. staking unit: automatic overturning system, can freely fix the length of the pipe.





10. controlling system: manual controlling cabinet or SIEMENS PLC touch screen controlling.






Technical Parameter:





Model SJZ-51 SJZ-55 SJZ-65 SJZ-80 SJZ-92
Screw Dia.(mm) 51/105 55/110 65/132 80/156 92/188
Max. Rotating speed(rpm) 40 38 38 37 36
Main Motor(kw) 18.5 22 37 55 90
Capacity(kg/h) 80~100 100~150 150~250 250~380 380~700
Center height(mm) 1050 1050 1050 1050 1100
Net Weight(kg) 3000 3500 4000 5500 8000
L*W*H 3.6*1.1*2.1 3.6*1.1*1.2 4.2*1.5*2.4 4.7*1.5*2.4 6*1.6*2.5
