Product Details:
|
| Raw Material: | PE Granules And Masterbatch | Pipe Diameter: | 20mm-110mm |
|---|---|---|---|
| Output(kg/h):: | 250kg/h-300kg/h | Motor: | Siemens Beide |
| Screw Type: | Single Screw Extruder | Inverter: | ABB |
| Voltage: | 380V 50Hz Or Customized | Extruder: | 60/38 |
| Delivery Time: | 60 Days | ||
| High Light: | single layer HDPE Pipe Extrusion Line,single layer polyethylene pipe production line,single layer hdpe pipe extrusion machine |
||

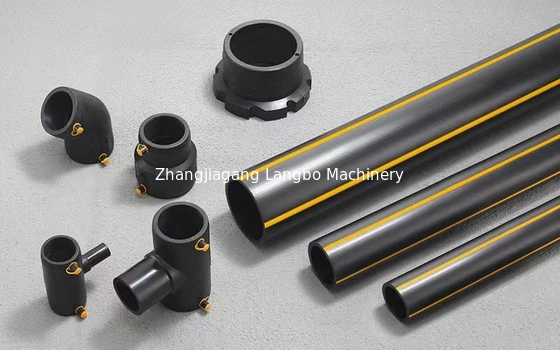

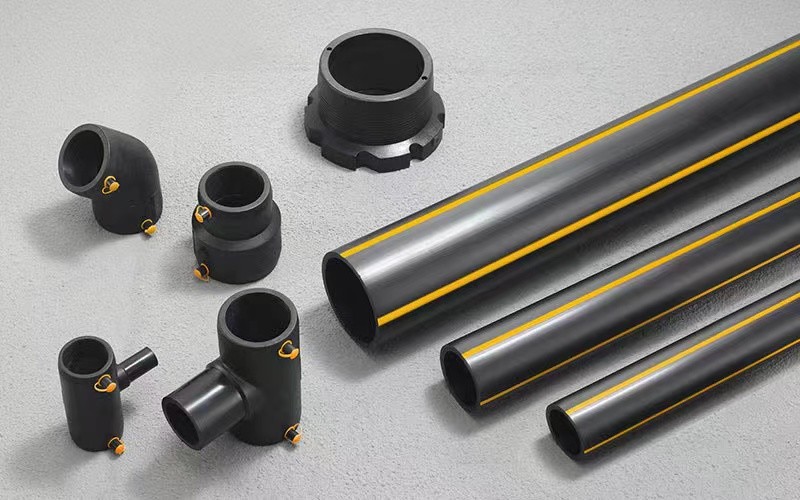

Water Supply 20-110mm single layer HDPE Pipe Extrusion Line
PE PIPE PRODUCTION LINE
Our HDPE pipe extrusion line adopts siemens-beide motor, famous Chinese brand screw and barrel, famous Chinese brand gearbox. It has high output capacity. Meanwile we equip one sets 9m vacuum tank and 2 sets of 9m cooling tank. It has very high extrusion speed. Meanwhile our cuuter has servo motor for the high speed cutting action.
FEATURES OF PE PIPE EXTRUSION LINE:
The high efficiency extruder is designed for HDPE pipes, equipped with reducer which obtain the high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.
PE PIPE PRODUCTION SPECIFICATIONS:
| Model | Pipe diameter | Extruder | Extruder power | Capacity |
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |

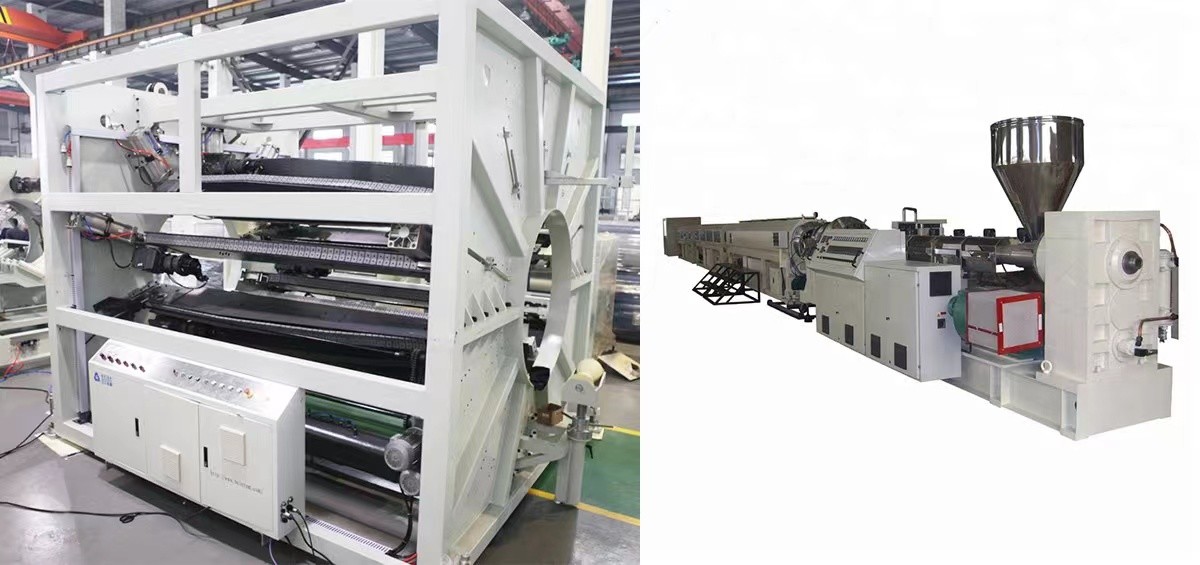

THE COMPLETE EXTRUSION CONSISTS OF FOLLOWING ITEMS:
Single screw extruder
Co-extruder: manufacturing marking line on pipe or multilayer of pipes
Die head
Vacuum tank: due to diameter, it can be designing of single, double vacuum chamber
Cooling tank: due to diameter, the numbers of cooling tank canbe one, two or three
Haul-offs: due to diameter, it can be designing of double, three, four, six, eight, ten, twelve caterpillars
Cutter: due to diameter, it can be designing of no-scraps cutter or planetary cutter
Coiler/ Tipping chute
