Product Details:
|
| Packaging Details: | FILM AND WOODEN BOX | Material: | POLYETHYLENE |
|---|---|---|---|
| Screw Diameter: | 60mm | LD Ratio: | 38:1 |
| Warranty: | 2 Year | Motor: | Siemens |
| Screw Design: | Single-screw | Certification: | CE,ISO |
| Automatic Grade: | Full-automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Color: | Customised | Control: | PLC+Touch Screen |
| Processing Type: | Extrusion Machine | Motor Power: | 75kw |
| Inverter: | ABB Frequency Inverter | Electrical Parts: | Siemens Or Schnider |
| High Light: | High Output hdpe pipe extrusion line,20mm hdpe pipe extrusion line,110mm polyethylene pipe production line |
||
Factory Produced High Output 20-110mm HDPE Pipe Extrusion Line
HDPE pipe is widely used in every industy no matter for water supply pipe or sewerage water pipe. Our PE pipe extrusion machine is designed tailed to each customer's demand and provide relative guidance and suggestion in order to make customer use less investment to have best performance. Our machine design not only considers the demand but also look forward to future development. Our PE pipe extrusion line adopts Chinese famous brand screw, barrel and gearbox. The motor is Siemens-beide. The inverter is ABB inverter. The water and vacuum pump adopts top quality parts. All the extrusion line has 2 years guarantee and forever after-sale services.
PROCESSING PROCESS
PE particles—material feeder—single screw extruder—mould and calibrator—vacuum forming machine—two-staged spraying cooling machine—haul-off machine—rapid cutter/Planetary cutter—stacker.
Specifications
| Model | LB63 | LB110 | LB250 | LB315 | LB630 | LB800 |
| Pipe Range | 20-63mm | 20-110mm | 75-250mm | 110-315mm | 315-630mm | 500-800mm |
| Screw Model | SJ65 | SJ75 | SJ90 | SJ90 | SJ120 | SJ120+SJ90 |
| Motor power | 37KW | 55KW | 90KW | 160KW | 280KW | 280KW+160KW |
| Output | 100kg | 150kg | 220kg | 400kg | 700kg | 1000kg |
PRODUCT DETAIL

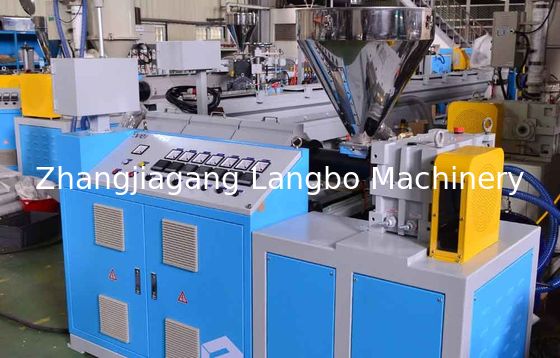

The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Our extruder allocate international standard single screw and barrel. The screw has strong rigidity ensuring long service life and distinguished plasticizing effect.
Mould
The mould has spacious flow channel design to guarantee high extrusion capacity and good melting effect.
It is made and inspected by the experienced manufacturer. The optimized temperature control and flow channel design ensures precise melt temperature control.

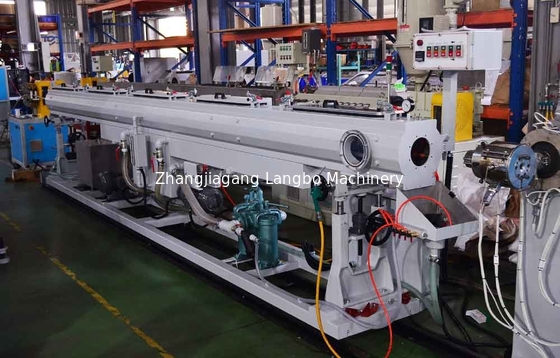

Vacuum and cooling tank
The vacuum calibration tank adopts stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes. The holder in first step of the vacuum calibration tank guarantees the pipe shaped and provides extra power for the pipes moving on.
Haul-off Unit
The ten caterpillar on the haul-off machine ensures produced pipe running stably and steady. utilize a unique mechanism to prevent pipe ovality while our unique belt design assures proper pulling without slippage.
Cutting Unit
We offers two cutting methods including rapid cutter and planetary cutter. In accordance to the
produced pipe material, the cutting way can be switched randomly.
Tipping table
Our Tipping table is made by 304 quality stainless material of iron structure, sturdy structure and heavy load bearing. Our rubber wheel steady hold the pipe product without scratch risk.
