Product Details:
|
| Voltage: | Customized | Compressor Brand: | American Copeland |
|---|---|---|---|
| Evaporator: | Shell And Tube Evaportor | Water Pump: | 3kw |
| Model: | 20H | ||
| High Light: | 20HP air cooled chiller,Customized Voltage air cooled chiller,20HP air chiller machine |
||

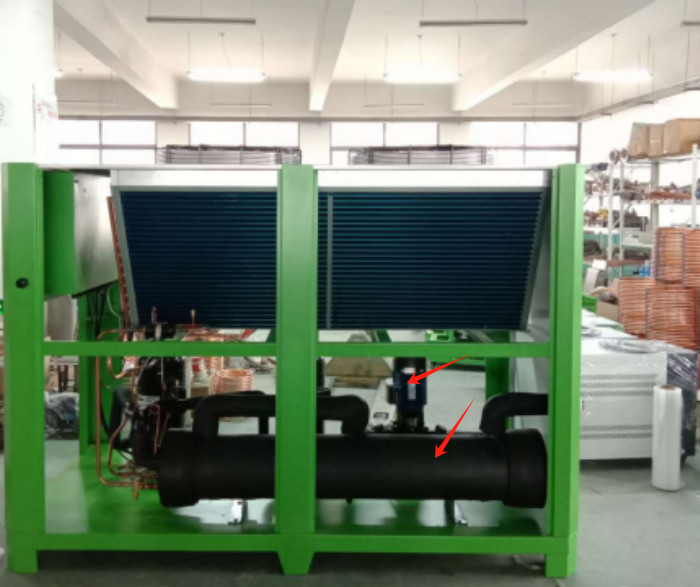

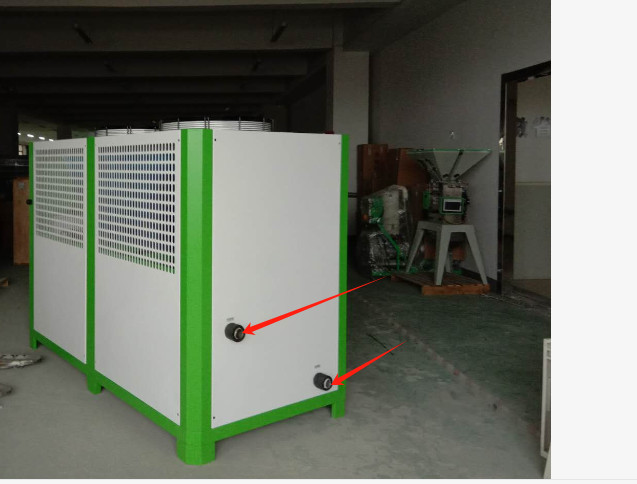

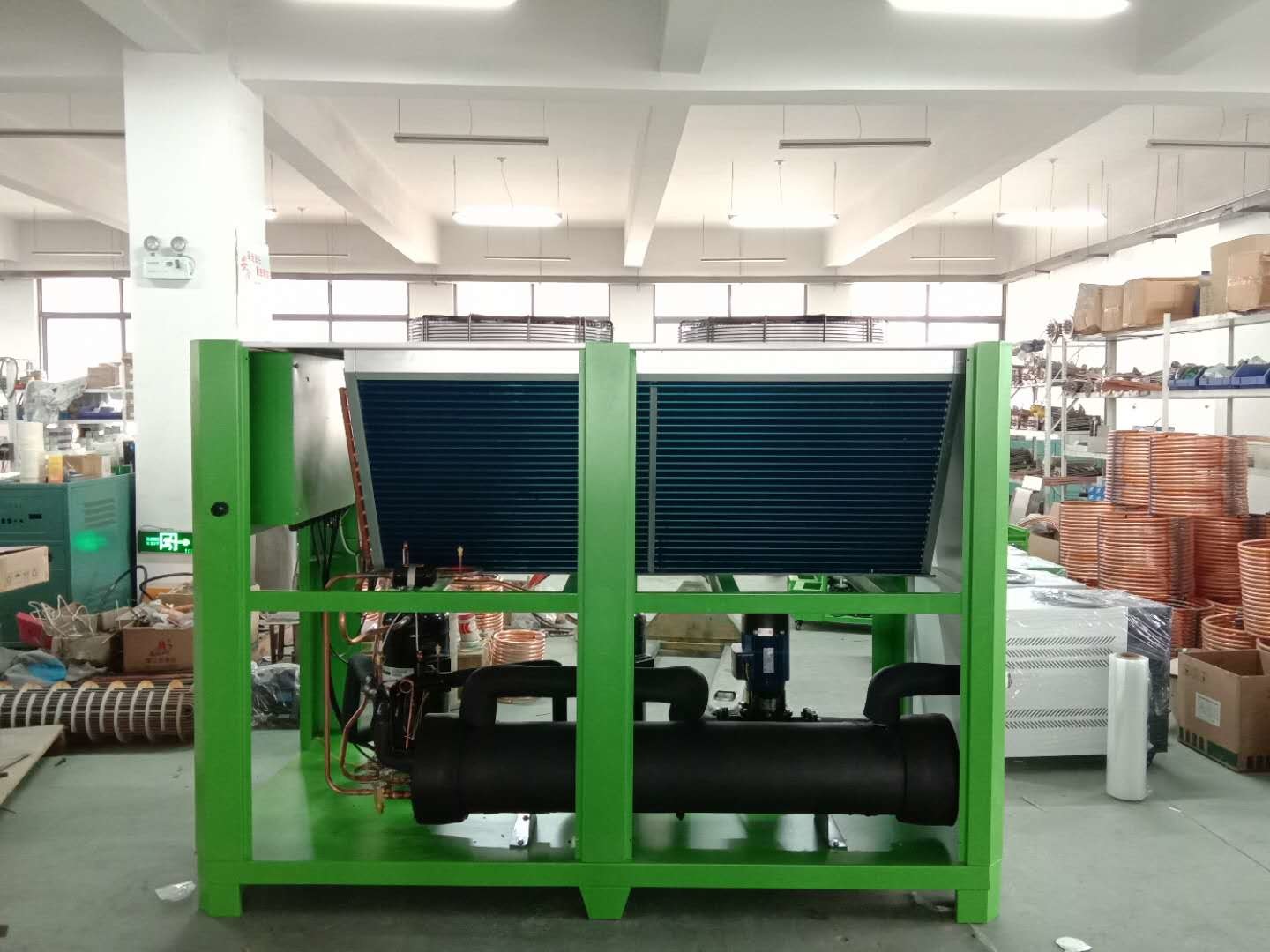

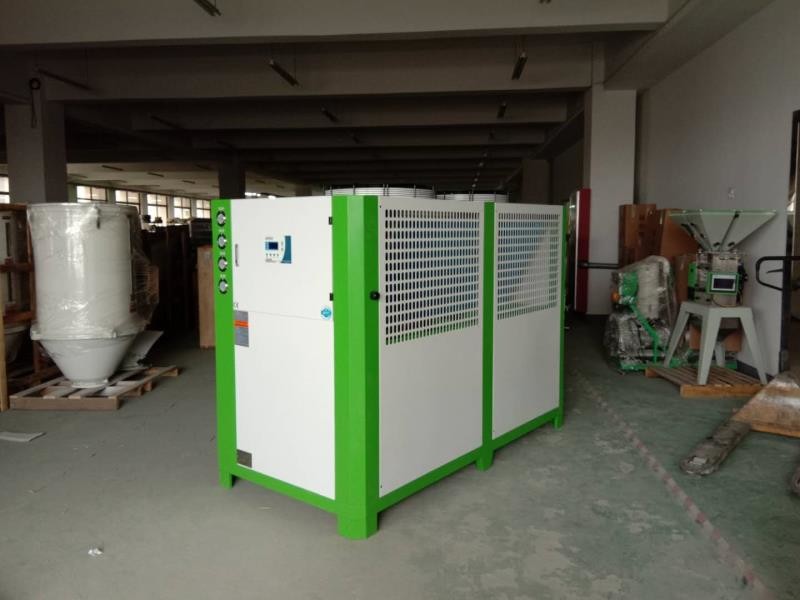

20HP Air-cooled Chiller Machine
Short description:
For the extrusion line, the extruded pipe or profile needed to be cooled by the cold water. The water chiller used the fan blowing method to provide cold water for the vacuum tank and increase the extrusion speed.
Parameter:
| Model | 20HP | |
| Voltage | 380V/50Hz/3Phase | |
| Electrical parts | Siemens | |
| Temperature range | 3℃ - 50℃ | |
| Refrigeration capacity |
KW | 55 |
| Kcal/h | 47300 | |
| Compressor | Type | Hermetic scroll type |
| Power(HP) | 10*2 | |
| Brand | American Copeland | |
| Number | 2 | |
| Condenser | Type | Efficient copper tube with aluminum finned + low noise outer rotor fan |
| Air volume(m³/H) | 25000 | |
| Evaporator | Type | Shell and tube evaportor |
| Cooling water(m³/H) | 9.52 | |
| Inlet and outlet pipe diameter | 2" | |
| Refrigerant | Type | R22 |
| Control mode | Outside the balanced expansion valve | |
| Water pump | Power | 3KW |
| l/min | 315 | |
| Lift | 20m | |
| Size | L | 2240mm |
| W | 1110mm | |
| H | 1700mm | |
| Weight | KG | 880 |
