Product Details:
|
| Voltage: | Customized | Compressor Brand: | American Copeland |
|---|---|---|---|
| Evaporator: | Shell And Tube Evaportor | Model: | 125HP |
| Water Flowing Channel: | Copper Pipes | Refrigerant: | R4047C/R22 |
| High Light: | 125HP air cooled chiller,R4047C air cooled chiller,125HP air chiller machine |
||

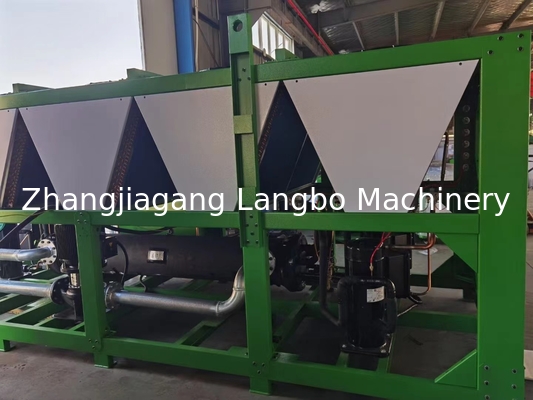

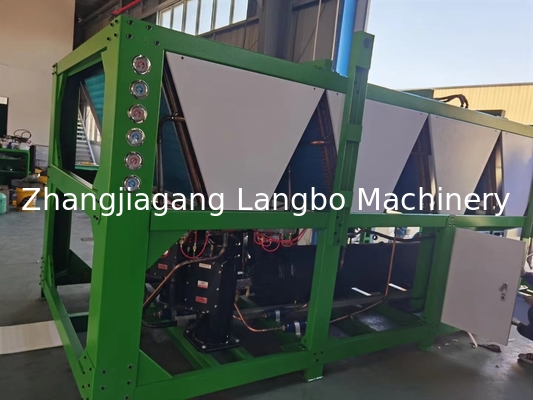

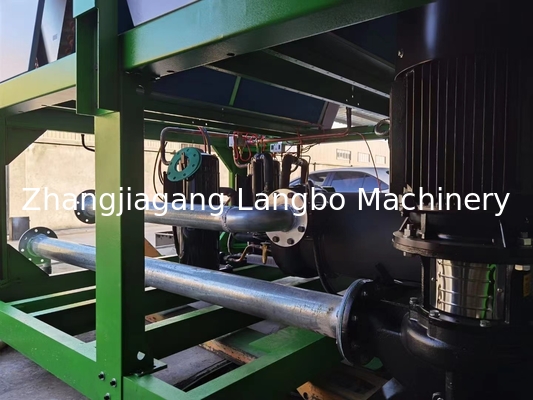

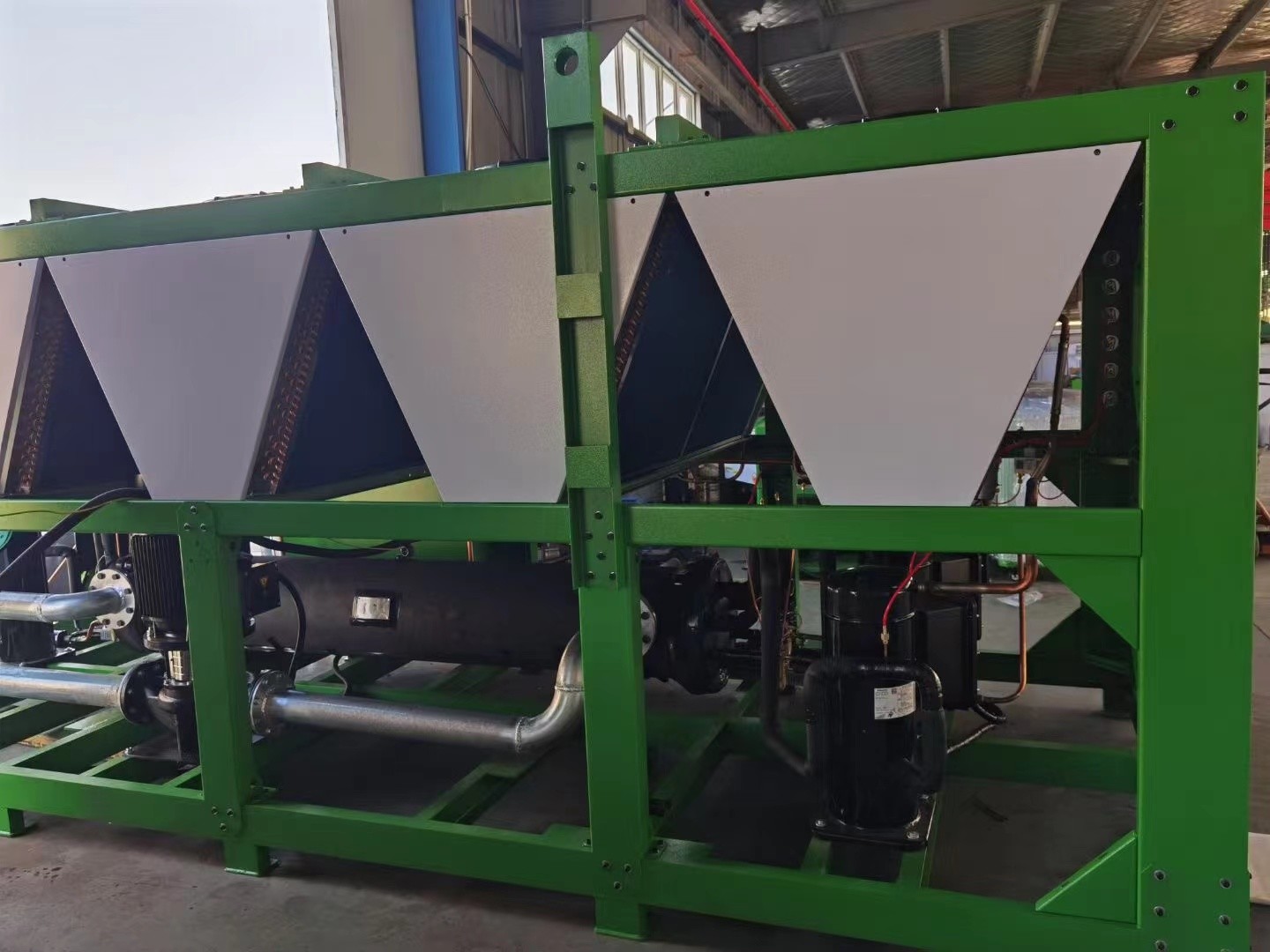

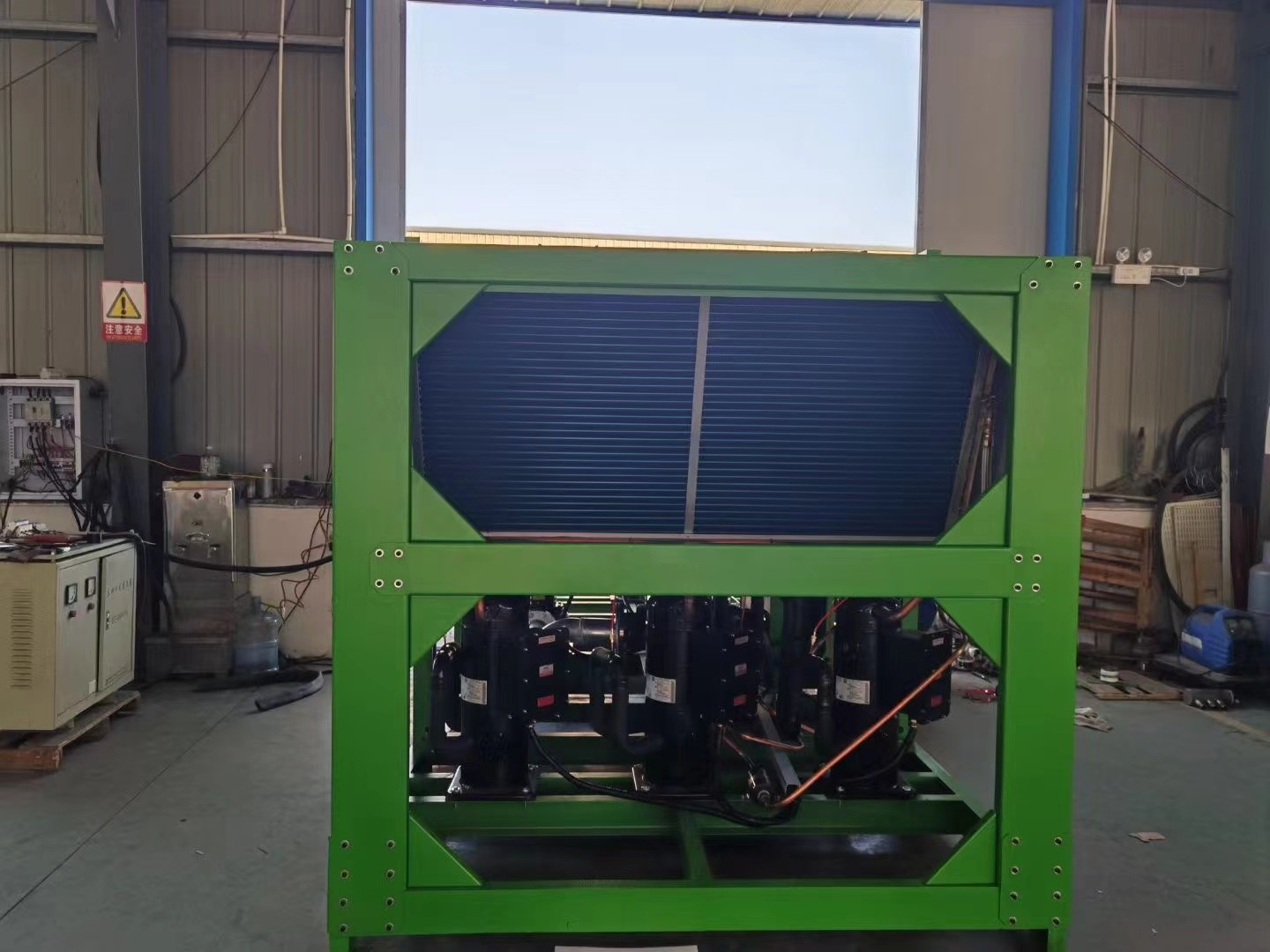

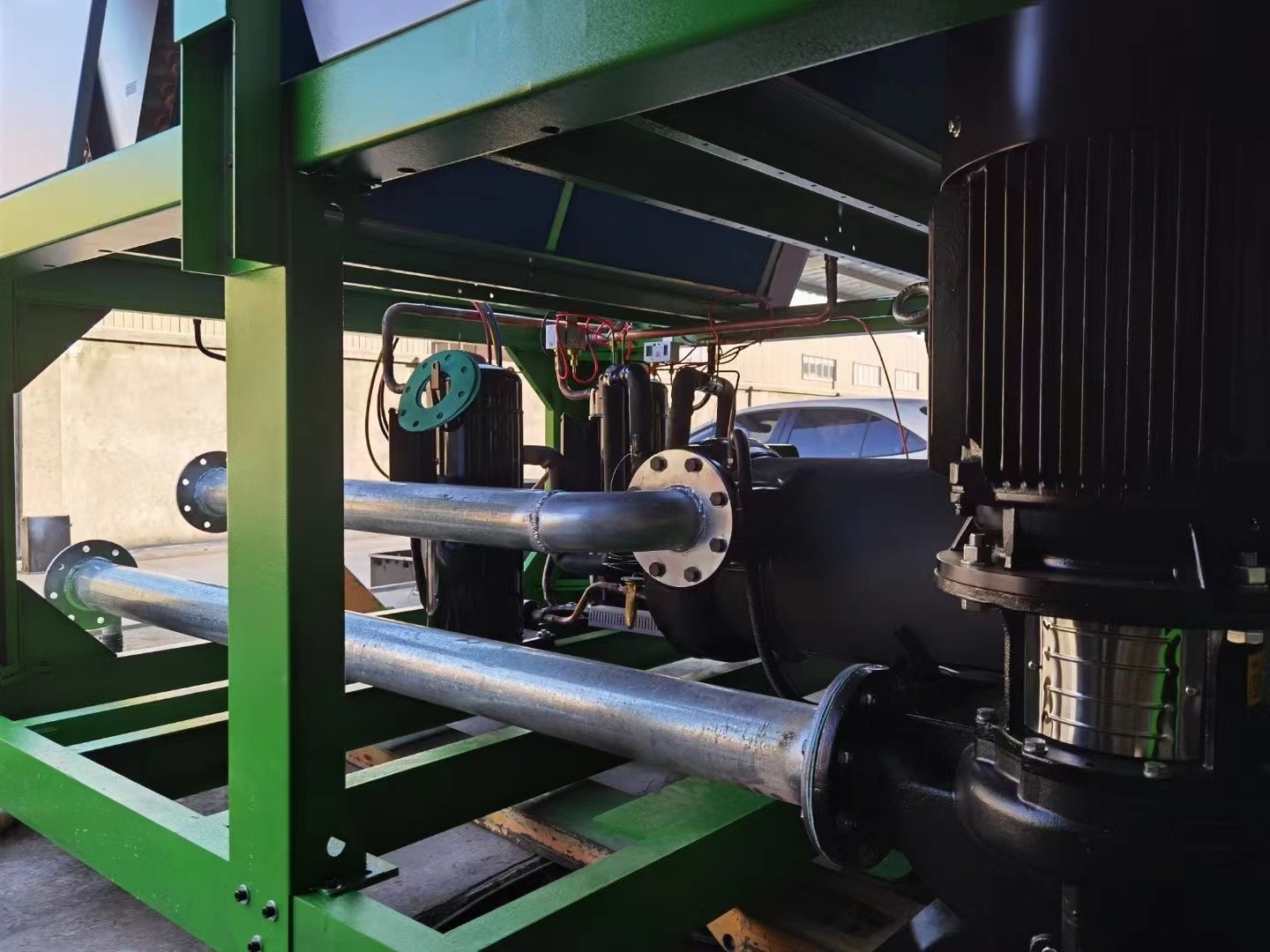

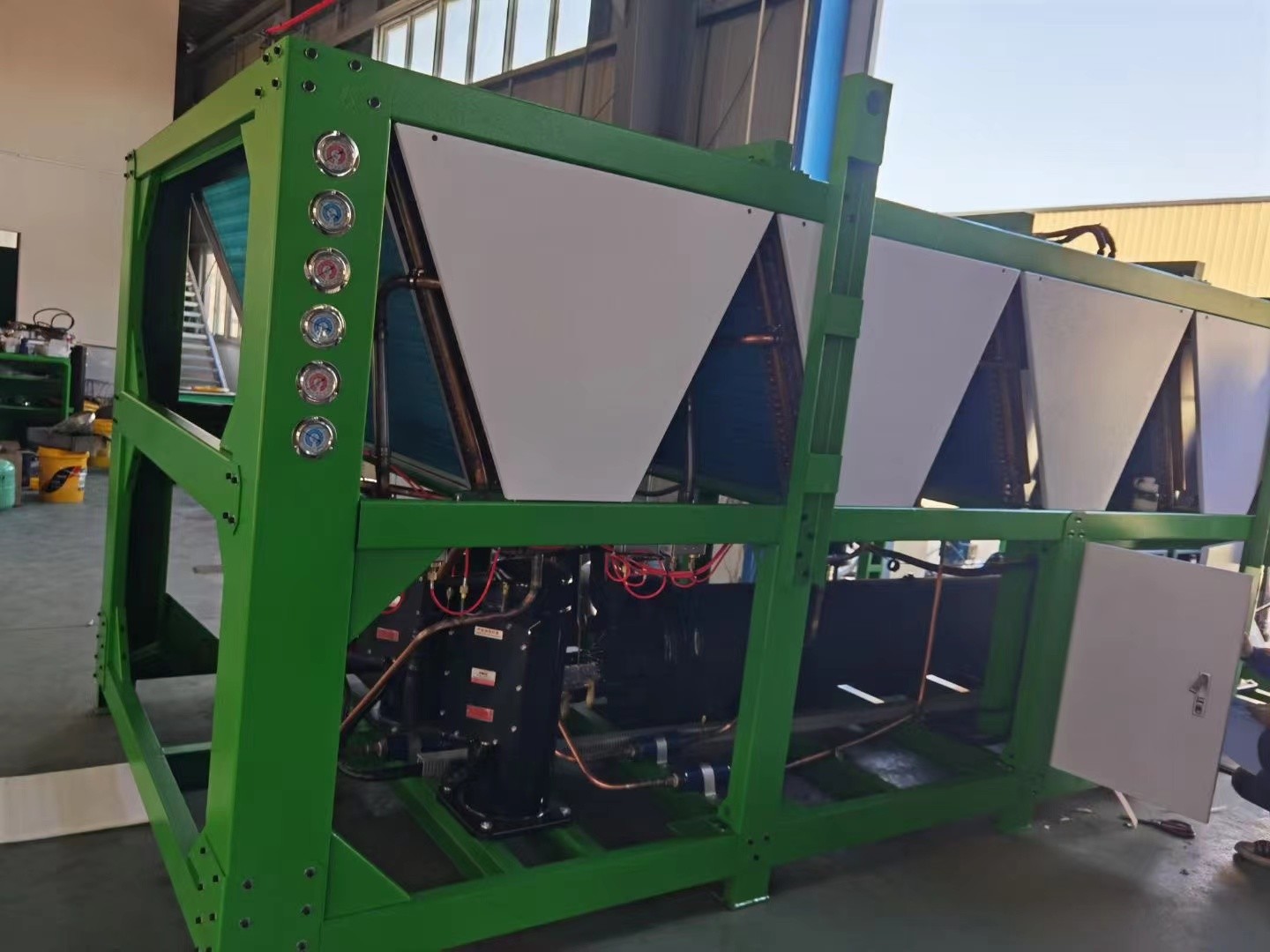

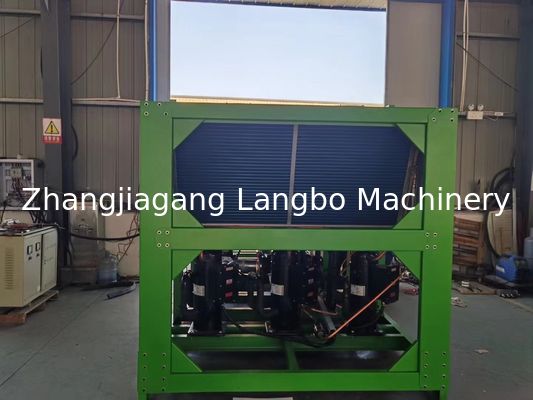

125HP Air-cooled Chiller Machine
Short description:
For the extrusion line, the extruded pipe or profile needed to be cooled by the cold water. The water chiller used the fan blowing method to provide cold water for the vacuum tank and increase the extrusion speed. The air-cooled chiller is depended on the extrusion line capacity. For large output machine, the 125HP will be needed.
Parameter:
| Model | 125HP | |
| Voltage | 380V/50Hz/3Phase/Customized | |
| Electrical parts | Siemens | |
| Temperature range | 3℃ - 50℃ | |
| Refrigeration capacity |
KW | 55 |
| Kcal/h | 47300 | |
| Compressor | Type | Hermetic scroll type |
| Power(HP) | 10*2 | |
| Brand | American Copeland | |
| Number | 2 | |
| Condenser | Type | Efficient copper tube with aluminum finned + low noise outer rotor fan |
| Air volume(m³/H) | 25000 | |
| Evaporator | Type | Shell and tube evaportor |
| Cooling water(m³/H) | 9.52 | |
| Inlet and outlet pipe diameter | 2" | |
| Refrigerant | Type | R407C |
| Control mode | Outside the balanced expansion valve | |
| Water pump | Power | 3KW |
| l/min | 315 | |
| Lift | 20m | |
| Size | L | 2240mm |
| W | 1110mm | |
| H | 1700mm | |
| Weight | KG | 880 |
