16 - 800mm PE Pipe Extrusion Line SJ30 / 25 Color Line Marking Co Extruder

China 16 - 800mm PE Pipe Extrusion Line SJ30 / 25 Color Line Marking Co Extruder supplier
16 - 800mm PE Pipe Extrusion Line SJ30 / 25 Color Line Marking Co Extruder supplier 16 - 800mm PE Pipe Extrusion Line SJ30 / 25 Color Line Marking Co Extruder supplier

Large Image :  16 - 800mm PE Pipe Extrusion Line SJ30 / 25 Color Line Marking Co Extruder

Product Details:

Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE / ISO
Model Number: LB-32

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T,
Supply Ability: 15 SETS PER MONTH
Contact Now
Detailed Product Description
Voltage: 380V/220V Condition: New
COLOUR: BLACK, ORANGE Weight: 8000kg
MARK LINE: SINGLE SCREW EXTRUDER Material: HDPE/PP/PE/PA/PVC

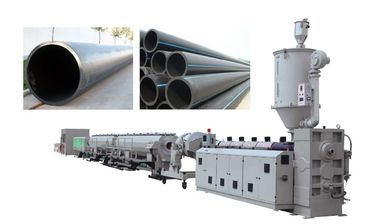

16mm-800mm plastic water supply/gas pipe extrusion of PE pipe making machines line





Applications:



PE pipe systems provide sustainable and harmless solution to growing demand for clean water and modern sewer systems. The new applications in the field of storm water drainage, marine crossing, intake and outfall, fire loops, district heating and domestic geothermal technology rely on superb properties of HDPE material, its long service life and thriving long track record of more than 60 years. Based on our experience and knowledge we confidently promote and offer Polyethylene pipe systems for all water related applications.Polyethylene pipe is the key for making tomorrow by Caring for today, Protecting precious resources, and Saving more money.



This PVC pipe production line is mainly used in produce U-PVC/C-PVC pipes which used for water supply and water drainage. This line consists of conical twin screw extruder, vacuum sizing trough, haul off machine, pipe cutting machine and collect bench.



Machines list of PE pipe line:



1. Vacuum auto Loader + Hopper Dryer 1 set
2. Main Single screw extruder 1 set
3. SJ30/25 Color line marking co extruder 1 set
4. Co extrusion Mould/Die head 1 set

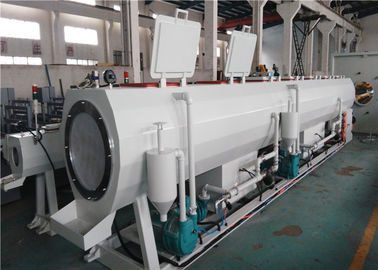

5. Vacuum calibration tank 1 set
6. Water cooling spraying tank 1 set
7. Haul off machine 1 set
8. Cutting machine 1 set
9. Stacker 1 set
10. Words Printing machine 1 set
11. Pipe Crusher/Grinder 1 set




Technical parameters of single screw extruder:



Model Dia. (mm) Extruder Mark-line extruder Speed (m/min) Max.output (kg/h) Total power (kw) Overall dimension (LxWxH) m
FPEG-63 20-63 50X33 25X25 0.2-16 120 65 36x2.2x2.5
FPEG-110 20-110 65X33 25X25 0.2-20 220 115 56x2.2x2.5
FPEG-160 63-160 75X33 25X25 0.2-6 300 160 50x2.2x2.8
FPEG-250 75-250 80X33 25X25 0.2-5 400 200 52x2.2x3.0
FPEG-400 160-400 90X33 25X25 0.2-2 550 250 66x2.2x3.0
FPEG-500 200-500 100X33 25X25 0.1-1 700 300 70x2.3x3.5
FPEG-630 355-630 120X33 30X25 0.1-1 900 420
