High Output Plastic Recycling Line , Plastic Film Recycling Machine / Equipment
Product Details
| Automatic Grade: | Automatic | Certification: | CE, ISO9001 |
|---|---|---|---|
| Warranty: | 12 Months | Key Words: | Recycling Line |
| Crusher Power: | 37 Kwor Brand | Raw Material: | Plastic Bags/film |
| Highlight |
plastic reprocessing machine,plastic waste recycling machine |
||
Product Description
High Output Plastic Film Recycling Machine , Plastic Recycling Equipment
Application
It is widely used in recycling plastic films like bottles agriculture film, bags, PP woven bags and so on. With
complete crushing and wahing line, clients can make dry,clean film scraps from wasted material. The whole
washing line could be "L" or "U" shape according clients' workshop.

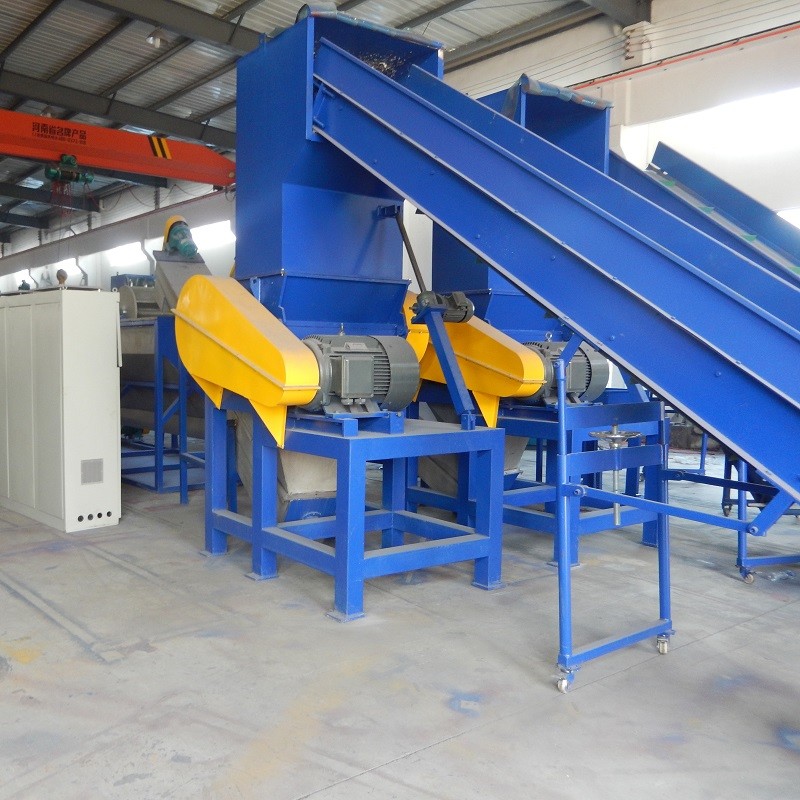

The working flow of this recycling machine is: belt conveyer → crusher → friction washer → float washer →
dewaterer → dryer → silo. If the film is very dirty, some clients may add hot washer for this washing line.
The complete line is fully- automatic and it has characteristics of high efficiency, low energy sonsumption, low
noise and easy operation.The recycling line can easily crushing, washing and drying wasted plastic products
from beginning to finished products. Waste and dirty agricultural films and waste packing material or rigid
plastics can be treated step by step by this machine.
Description
1. Raw material: film,plastic bags,flakes
2. Final product: plastic granules
3. Hydraulic screen changer
4. Special vacuum degassing system
5. Output:100-800kg/h(according to customer requirements)
6. Cutting type of polyethylene film granulator : water ring or water cooling strand
Application raw materials:
PE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS, XPS, Stretch film, Non woven fabric, Woven bags, etc.
| Raw material & formulation | PE/PP rural film, twist bag, shopping bag, packing bag etc |
|
Capacity range |
300kg/hour |
| 500kg/hour | |
| 1000kg/hour | |
| 2000kg/hour | |
| Description of final product | Moisture: below 5% |
| Particle size: 30-110mm | |
| Production standard | CE, ISO9001 |
| Main components (1000kg/h) | |
| (Name) | (power) |
| Belt conveyor | 2.2kw |
| Crusher | 55kw |
| Screw conveyor | 2.2kw |
| Belt conveyor | 2.2kw |
| Crusher | 55kw |
| Screw conveyor | 2.2kw |
| Floating washer | 2.2kw+2.2kw+2.2kw |
| Screw conveyor | 2.2kw |
| High speed frication machine | 37kw |
| Screw conveyor | 2.2kw |
| Vertical dewatering machine | 110kw +1.5kw |
| Drying system-1 | 45kw+7kw |
| Transition storage hopper | |
| Drying system-2 | 38kw+7kw |
| Storage hopper | 2.2kw |
| Control cabinet |
contact Japan Fuji invertor Japan Omron temperature controller |
Feature for pet bottle waste plastic recycle machine
- Plastic recycling washing machine is applied in PET waste bottle or sheet recycling field.
- Through crushing, washing and dry process, the waste bottle or sheet will become to be bottle flakes. The flakes are widely used in plastic industry, like sheet, and profile production.
- The clean flakes can be used to produce the polyester staple fiber, PET strap band, granules, PET transparent film and sheets, etc. The top class flakes can be used to blow bottles again.
- Recycling machine can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products are very clean.
- Recycling machine output we can supply is from 100kg/h to 2000kg/h.
- This pet bottle waste plastic recycling machine could be "L" or "U" shape according clients' workshop.
