Product Details:
|
| Name: | Plastic Film Granulator | Screw Design: | Single |
|---|---|---|---|
| Final Product: | Granules | Voltage: | 380v |
| Application: | Plastic Recycling | Packaging Details: | PE Film Wrap |
| Highlight: | plastic reprocessing machine,plastic waste recycling machine |
||
Feature and Function:
Water ring type pelletizing line,recycling PP PE film bags,make them into pellets.
Process flow:
Conveyor→ PE film compactor→ Extruding system→ Die-head and High speed Net exchanging system→
water ring pelletizing machine → water tank → dewatering machine→ vibrating sieve→ Air Blower → Storage
hopper
Detailed description of PP PE pelletizing machine
1. Conveyor: convey PP PE film or flakes into compactor.
2. PE film compactor:crushing and compress film,and feed compressed film into extruder forcedly,to make the
the production capacity high and stable.
3.Extruding system:plasticizing material and exhausting gas.

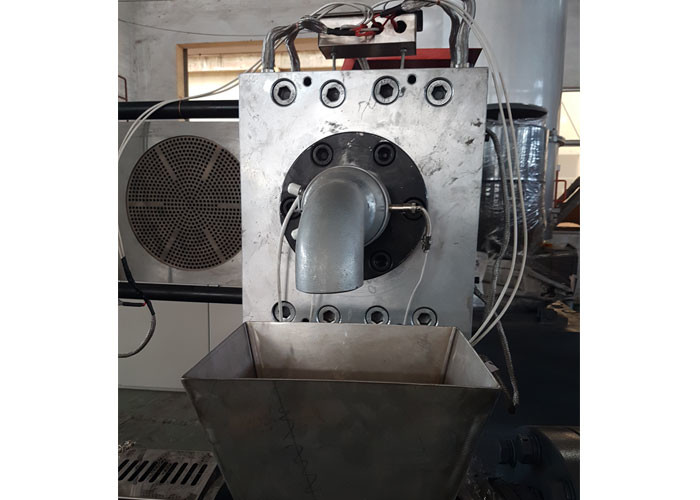

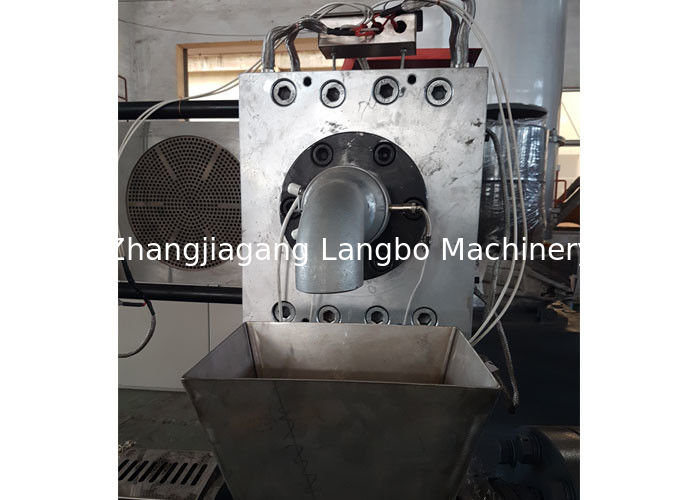

4. High speed Net exchanging system and Die-head:filter material impurity,to make production more stable.
5. water ring pelletizing machine:cutting pellets in water.
6. Water tank:cooling pellets.
7. Dewater machine:make pellets dry.
8. Vibration sieve:remove bad pellet and keep good pellet.
9. Air Blower:convey good pellets into silo.
10: Storage silo:keep pellet.
Technical data:
| Extruder | SJ90 | SJ120 | SJ150 | SJ180 |
| Main Motor Power | 55KW | 75kw | 110kw | 185kw |
| Production capacity | 150KG/H | 150-250kg/h | 300-400kg/h | 450-800kg/h |
