Product Details:
|
| Process Material: | PE Film Scrap | Application: | Recycling Granules Making Machine |
|---|---|---|---|
| Capacity: | 400~500kg/h | Type: | Single Screw Extruder |
| L/D: | 32:1 | Model: | Granules Machine |
| Highlight: | plastic reprocessing machine,plastic waste recycling machine |
||

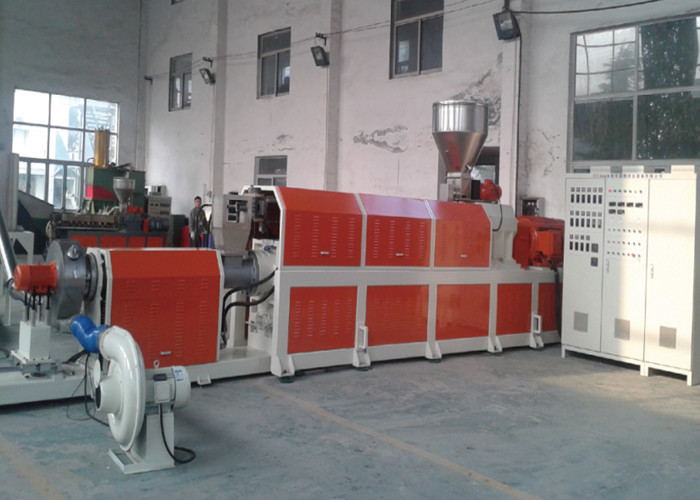

Pvc Pp Pet Waste Plastic Recycling Pellet Machine , Waste Plastic Extruder
THE MACHINE is plastic regenerative pelletizer, which is suitable for many kinds plastic waste materials recycling and making pellet, such as PP,
HDPE, LDPE, LDPE Film and clean woven/nonwoven bag materials, etc. The film can be pressed in compressor and then be pelleted. And also has
very developed design, makes sure this machine has a long working life and economical efficiency in using.
Usage and Characteristics
1. GSD series Waste Plastics Recycling Machine is used for recycling of the used and waste plastic materials.
2. It is equipped with automatic constant temperature, hydraulic net changer.
3. It also can pelletize the crushing material after fitting with a loader.
4. The cutting machine adopts speed regulating motor. which can cut the material according to the feeding speed of the extruder, with such features
as high output, low noise, stable performance and easy operation. It is a more ideal waste plastic film regenerative pelletizer.
5. Two times plasticizing
6. Feeding unit adopts force feeder.
7. The helical gear reducer with hard teeth is applied to the extruder and the screw
8. Cylinder and screw are made of 38CrMoA1A with nitrogen treatment.
9. Which is durable consists of main extruder and sub-extruder, water tank, drying fan and cutting part with alloy rotary cutter.
10. Besides it is optional to be collocated with drying fan according to the customer’s need.
Main Technical Parameters:
| Model | GSD-100 | GSD-110 | GSD-120 | GSD-135 |
| Screw Diameter(mm) | 95mm | 105mm | 110mm | 135mm |
| Screw L/D Ratio | 20:1-22:1 | 20:1-22:1 | 20:1-22:1 | 20:1-22:1 |
| Screw Rotating Speed | 10-110r/min | 10-110r/min | 10-110r/min | 10-110r/min |
| Main Motor Power(KW) | 30 | 30 | 37 | 45 |
| Output(kg/h) | 90 | 110 | 130 | 150-200 |
| Weight(T) | 2.1 | 2.2 | 2.5 | 3 |
| Overall Dimensions(L×W×H)(mm) |
