Product Details:
|
| RAW MATERIAL: | PP/PE RIGID & FILM WASTES | Voltage: | 380v |
|---|---|---|---|
| OPERATION: | AUTOMATIC | Function: | Crushing, Washing, Drying And Granulating |
| Warranty: | 1year | Mositure Content: | Within3% |
| High Light: | plastic reprocessing machine,plastic waste recycling machine |
||

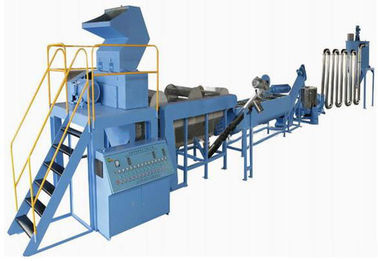

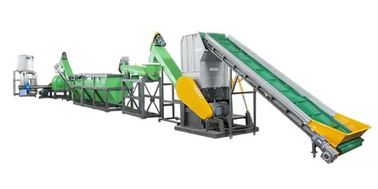

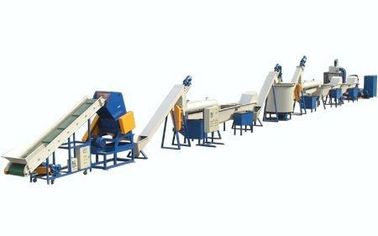

Waste plastic recycling plant superior service complete set of PP PE waste plastic recycling line
Application
This waste plastic film recycling line is used for recycling of waste PE/PP film and sack.
Plant List & Function
• Bale Opening System — hydraulic bale cutting machine to shearing film bale into smaller pieces (optional)
• Conveying Equipment — belts, screws for transporting materials
• Metal Detection and Separation Equipment — prevents product contamination and protect processing equipment (optional)
• Shredders — size reduction of materials (optional)
• Wet Crushers or Granulators — size reduction & washing
• Pre-washing and Screening Systems — trommels for removal of contaminants (sand, grit) (optional)
• Washing and Separation Tanks — cleaning of material and density separation
• Chemical Wash Tanks — removal of greasy dirt (optional)
• Friction Washers — scrubbing of material
• High Speed Dewatering Machine — removal of moisture from products
• Hot Air Drying Systems — reduce the moisture content of the finished product
• Bagging Systems — deliver the finished products into bulk storage bags
Technical Date
| Model | Capacity | Installed Power | Chemical Washing | Water Supply | Manpower | Area Required |
| A-300 | 300kg/hr | 120kW | Optional | 4-5 m³/hr | 1-2 | 23m*5m*3.5m |
| A-500 | 500kg/hr | 185kW | Optional | 5-6 m³/hr | 1-2 | 25m*6m*5.5m |
| A-1000 | 1000kg/hr | 270kW | Optional | 7-8 m³/hr | 4-5 | 40m*6m*5.5m |
1- How to choose proper products you want?
• Please tell us as detail as what you want?
• What’s your raw material it is?
• What’s the final products you want to produce?
• What capacity you prefer to ?
2- How to control the quality?
• We have technical, engineer team design the sample machinery before enter into market
• Production QC team ensure the machine manufacturing quality
• We will running every machine after finished before shipment
• Optional choose by client running the machinery by material
