Product Details:

Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE / ISO
Model Number: LB-250

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T,
Supply Ability: 15 SETS PER MONTH
Contact Now
Detailed Product Description
Extruder Power (kw): 160KW PIPE DIAMETER: 110-250MM
COLOUR: BLACK, ORANGE APPLICATION: PPRC PIPE
MARK LINE: SINGLE SCREW EXTRUDER SCREW DIAMETER: 65/33:1

FIBER GLASS REINFORCED PPRC PIPE PRODUCTION LINES WITH SINGLE SCREW EXTRUDER

The Single Screw Extruder is designed for the PE and PP pipe applications.
We target to provide the optimal solutions for the customer’s special needs with the advantage of flexibility in material choices, high performance and long durability.
High flexibility in raw material combinations
Gentle and homogeneous plastification
Different screw geometries for customer’s special needs
Barrel with air cooling system
AC motors for low energy consumption
Control panel with color touch screen
Product Range
Screw diameters from to 45 to 160 mm
L/D ratios from 30:1 to 36:1
Outputs from 85 to 1650 kg/h

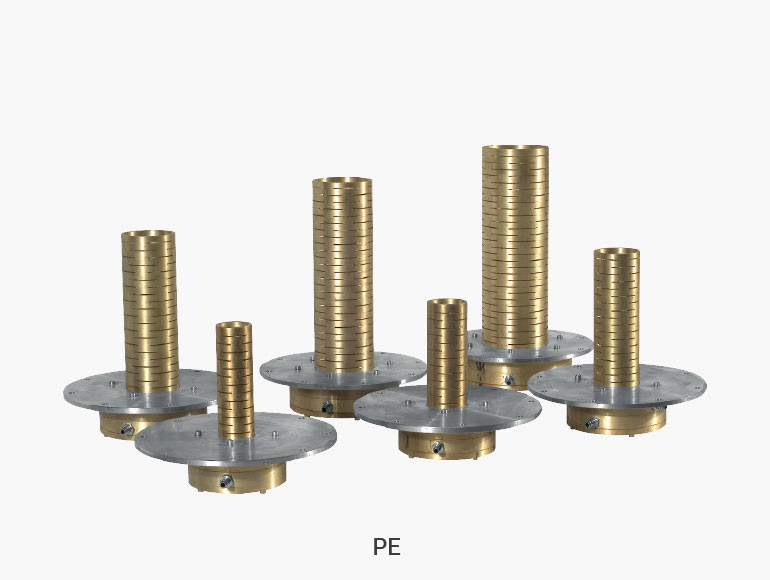

Covering a large range of diameters, we supply vacuum calibration sleeves which are used inside the vacuum tanks for the calibration process.
Features
High wear resistant
Definite outer diameter calibration
Product Range
Diameters from 16 to 800 mm

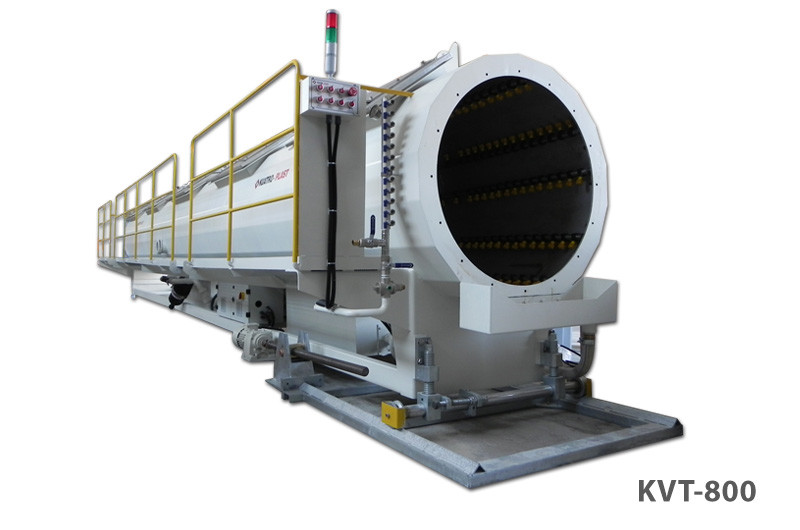

We provide vacuum tanks for the calibration and cooling process of plastic pipes covering diameters from 16 to 800 mm. All of our tanks are built in stainless steel which guarantees total absence of corrosion. Motorized longitudinal movement lets precise and fast positioning during the process.
Stainless steel tank
Motor driven longitudinal movement
Product Range
Diameters from 16 to 800 mm
Vacuum tank length from 6 to 9 mt

A wide range of haul-off units allows us to supply to the customers the ideal solution for a diameter range of 16 to 800 mm. We supply both caterpillar and belt-type haul-off units on our pipe down streams.
Caterpillar is driven by AC or servo drive
Synchronization with extruder speed
Speed adjustment by inverter
Product Range
Caterpillar tracks from 2 to 8
Pipe range from 16 to 800 mm

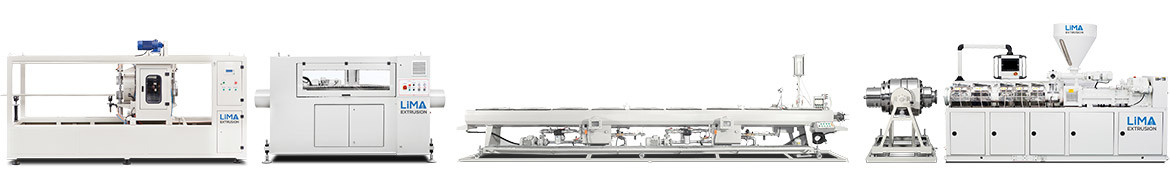

THE COMPLETE EXTRUSION LINES CONSIST OF FOLLOWING ITEMS:

  • Single Screw Extruder:

Extruder machine is applied for melting and stirring PE.

LANGBO employs the specific screw and barrel for material type that provides perfect mixing and homogeneous.

Our single screw extruders are featured high level technical solution such as screw geometry that is suitable for processing the plastic pipe extrusion. We use high wear resistant screw and barrel to make accurate control of melt conditions, homogenous temperature and pressure without variation and surging.

We use special gearbox for the extruder, which has axial bearings. Transfer the motor to the screw. For minimizing electricity consumption, we use the famous brand of driving motor of “SIEMENS” on our Extruder. Automation system designed with PLC and touch panel controller can be selected.

  • Die-Head:

Our die-head designing gives ideal viscosity to melt material for pipe producing. It gives tube or shape to plastic after processing. All faces the plastic in contact with is polish, so that frication losses minimized.

We produce single layer, two layer and multi layer pipe die-heads. Foil cover head. Over steel pipe plastic covering die-head and other special die-head.

  • Vacuum Tank:

The Vacuum Tanks are manufactured with stainless steel.

Our nozzles designing for maximum cooling performance. Cooled water sprinkles to hot plastic pipe outside face from the nozzles.

With high power water pump, cooled water can reach to pipe completely.

Our vacuum tank’s pressure can be adjusted, so vacuum pressure can be fixed according to pipe requirement.

We sealing gasket for every lid on the vacuum tank. This stops vacuum leakage and minimizing energy consumption.

  • Haul-off:

With the material we have used in our haul-off, we have very good adhesion to the pipe and ensure slip prevented.

The needed speed for setting of pallets can be changed with electrical inverter. Different line speeds are adjusted by using control panel easily.

We manufacture haul-off depending on pipe diameter from 2 pallets to 10 pallets.

Our haul-offs can work synchronously with pipeline. As the extruder speed increasing automatically, haul-offs speed is increased.

  • No Swarf/Dust Cutter:

The planetary saw cuts the pipe at designed length without any burr.

The cutting speed during the cutting is synchronous with the line speed by PLC, so accurate length is provided.

Pipe length to be cut is easily adjusted via the touch screen.

Pipe length measure by encode so desired length can cut precisely.

  • Pipe coiler:

The coiler is applied for winding PE pipes, corrugated pipes and dripping pipes.

We use torque motor for positioning pipes on the coil, that provides accuracy of coiling.

Our coilers can coil dia.16mm pipe up to dia. 125mm pipe. With the torque setting, tension of the pipe coming from the extrusion line can be adjusted easily.

SPECIFICATIONS:

MODELPIPE DIAMETER (MM)EXTRUDER MODELMOTOR POWER
LB-6320-63SJ65/3355AC
LB-11020-110SJ65/3355AC
LB-16075-160SJ75/3390AC
LB-25090-250SJ75/33110DC
LB-315110-315SJ90/33160DC
LB-450160-450SJ90/33160DC
LB-630315-630SJ120/33280DC
LB-800500-800SJ150/33315DC
LB-1200710-1200SJ150/34400DC


All Extrusion pipe lines can be equipped with various auxiliary equipments in order to meet our customer’s requests and provide solution from a single source.


Volumetric and gravimetric dosing units
Raw material loading units
Belling machines
Corrugators
Ink jet marking units
Winding units
Tilting tables
